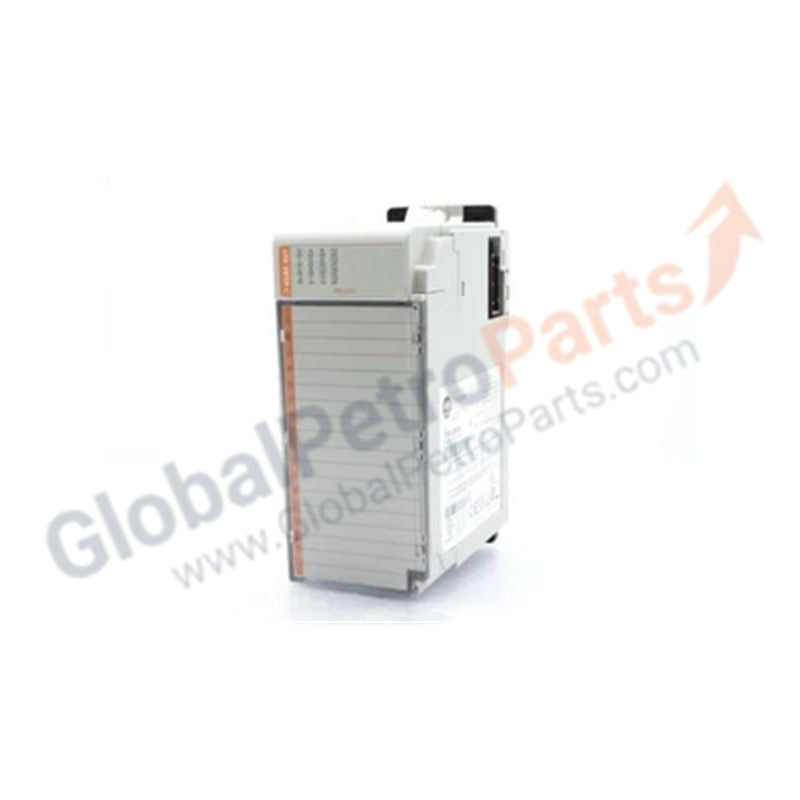

Relay Output Module 1769-OW16 Allen-Bradley

Availability: 99 left in stock

Product Overview The 1769-OW16 is a high-density electromechanical relay output module for Allen-Bradley CompactLogix and MicroLogix 1500 families. It provides...

SKU: 1769-OW16

Manufacturer: Allen Bradley
Product No.: 1769-OW16
Product Type: Relay Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The 1769-OW16 is a high-density electromechanical relay output module for Allen-Bradley CompactLogix and MicroLogix 1500 families. It provides 16 normally open (N.O.) contacts, offering a robust solution for switching diverse AC and DC loads within a single slot.

With two isolated groups of eight points each, engineers can control multiple circuits with varying voltage levels or phases. Its mechanical relay design ensures zero off-state leakage current, making it ideal for safety interlocks, pilot lights, and applications where solid-state leakage could cause false "ON" states.

Technical Specifications

Specification	Details
Module Identifier	1769-OW16
Output Points	16 Normally Open (N.O.)
Grouping	2 isolated groups (8 points per group)
Operating Voltage	5–265V AC / 5–125V DC
Max Current per Point	2.5 A
Max Current per Module	20 A
Contact Ratings (AC)	7.5 A Make (1800 VA) / 0.75 A Break (180 VA) @ 240V AC
Contact Ratings (DC)	0.22 A @ 125V DC (28 VA)
Signal Delay	10 ms max (ON/OFF)
Backplane Current Draw	205 mA @ 5.1V DC / 180 mA @ 24V DC
Heat Dissipation	4.75 W max
Power Supply Distance Rating	8 slots max from system power supply
Wiring Capability	22–14 AWG (Solid), 22–16 AWG (Stranded)
Physical Weight	0.45 kg
Dimensions	118 x 52.5 x 87 mm

System Compatibility and Installation

Controllers: Directly connects to CompactLogix 5370 CPUs or MicroLogix 1500 bases.
Remote I/O: Compatible with 1769-AENTR (EtherNet/IP) and 1769-ADN (DeviceNet) adapters.
Power Supplies: Designed for use with 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4 modules.
Mounting: Supports 35mm DIN rail or direct panel mounting for high-vibration environments.

Common Technical Questions

Can I switch 120V AC and 24V DC simultaneously?
Yes. With two isolated groups (0–7 and 8–15), you can supply 120V AC to Group 1 and 24V DC to Group 2 without electrical interference.
Why is there a 10 ms switching delay?
The module uses electromechanical relays, which require physical contact movement. This, combined with contact debounce logic, results in a 10 ms delay. For microsecond switching applications, a solid-state module like the 1769-OB16 is recommended.
