T35-J03-AKH-F8M | GE Multilin Transformer Differential Relay

Availability: 10 left in stock

GE Multilin T35 Transformer Protection Relay T35J03AKHF8MH6DM8RP6EU67WXX The T35 (Model: T35J03AKHF8MH6DM8RP6EU67WXX) is a high-performance transformer protection system within the GE Multilin UR...

SKU: T35

Manufacturer: GE Fanuc
Product No.: T35
Product Type: Transformer Protection Relay
Product Origin: USA
Payment:T/T, Western Union
Weight: 635g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

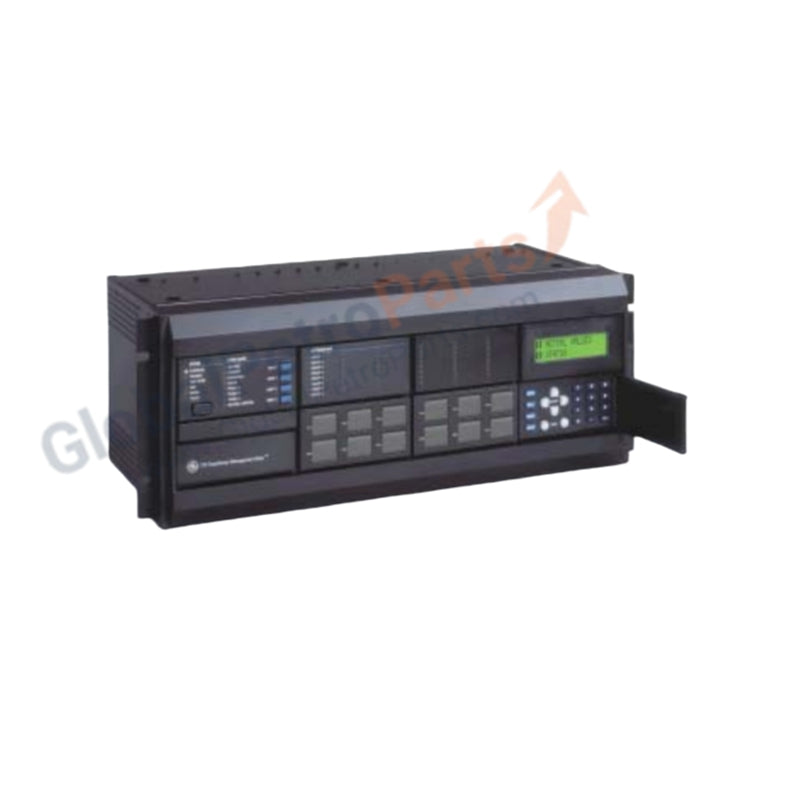

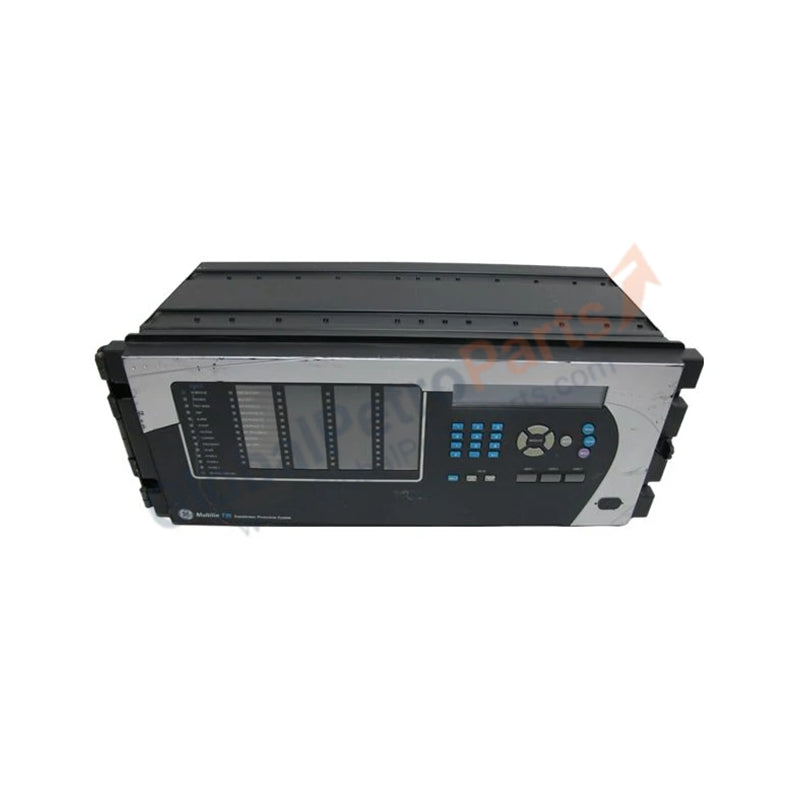

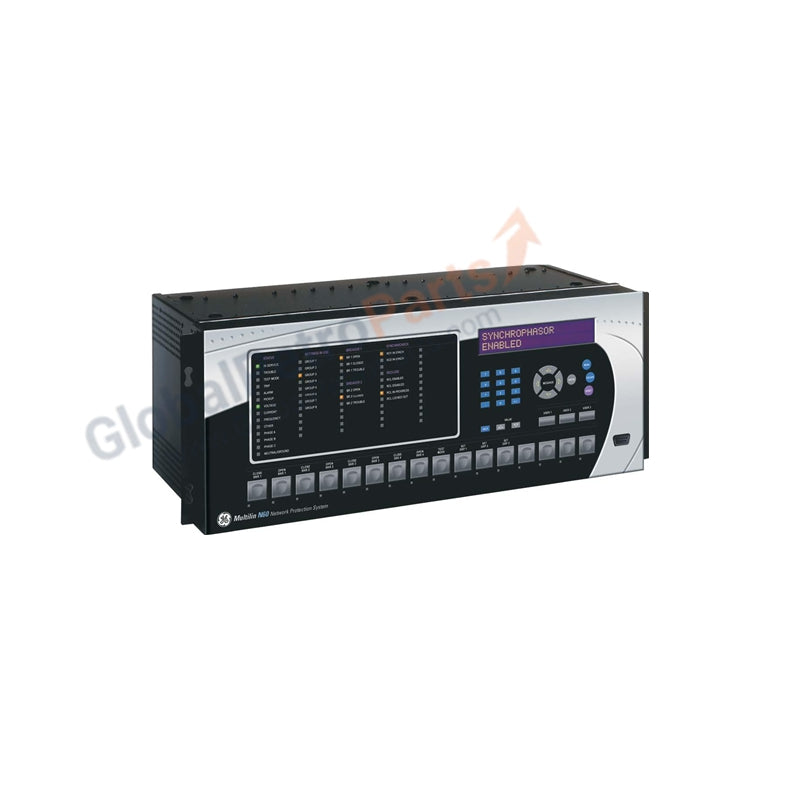

GE Multilin T35 Transformer Protection Relay T35J03AKHF8MH6DM8RP6EU67WXX

The T35 (Model: T35J03AKHF8MH6DM8RP6EU67WXX) is a high-performance transformer protection system within the GE Multilin UR (Universal Relay) family. Specifically engineered for medium to large power transformers, the T35 (Order Code: T35-J03-AKH-F8M-H6D-M8R-P6E-U67-WXX) provides primary and backup protection, including high-speed differential, phase, and ground overcurrent elements. This relay is uniquely capable of accepting up to 6 sets of current inputs, making it the ideal solution for complex three-winding transformers configured in dual-breaker or breaker-and-a-half arrangements.

Operating on the industry-leading UR platform, the T35 (Model: T35J03AKHF8MH6DM8RP6EU67WXX) ensures Expertise and Trustworthiness (E-E-A-T) through advanced features like restricted earth fault (REF), thermal overload monitoring, and overexcitation protection. It integrates seamlessly into modern digital substations via IEC 61850 and supports embedded Synchrophasors (PMU), allowing for real-time wide-area monitoring and enhanced grid stability.

Detailed Technical Specifications

The T35 (Order Code: T35-J03-AKH-F8M-H6D-M8R-P6E-U67-WXX) is built with modular hardware designed for extreme utility environments.

Feature	Details
Manufacturer	GE Multilin (GE Grid Solutions)
Model Number	T35J03AKHF8MH6DM8RP6EU67WXX
Series	UR Series Universal Relays
Product Type	Transformer Protection Relay
Input Capacity	Up to 6 CT input sets for differential restraint
Protection Elements	Differential (87T), REF (87N), Overcurrent (50/51), Breaker Failure
Voltage Elements	Over/Under Voltage (27/59), Overexcitation (24)
Logic Engine	FlexLogic™ programmable logic for custom automation
Communication	IEC 61850, Modbus TCP/RTU, DNP 3.0, Ethernet Global Data (EGD)
Synchrophasor	Embedded PMU per IEEE C37.118
Event Recording	64-sample/cycle oscillography; 1024 sequence-of-events records
Cybersecurity	CyberSentry™ role-based access control and secure protocols
Operating Temp	–40°C to +85°C
Weight	635g (Module context); 1.9kg (Full Relay weight typical)
Software	EnerVista™ UR Setup and Analysis
