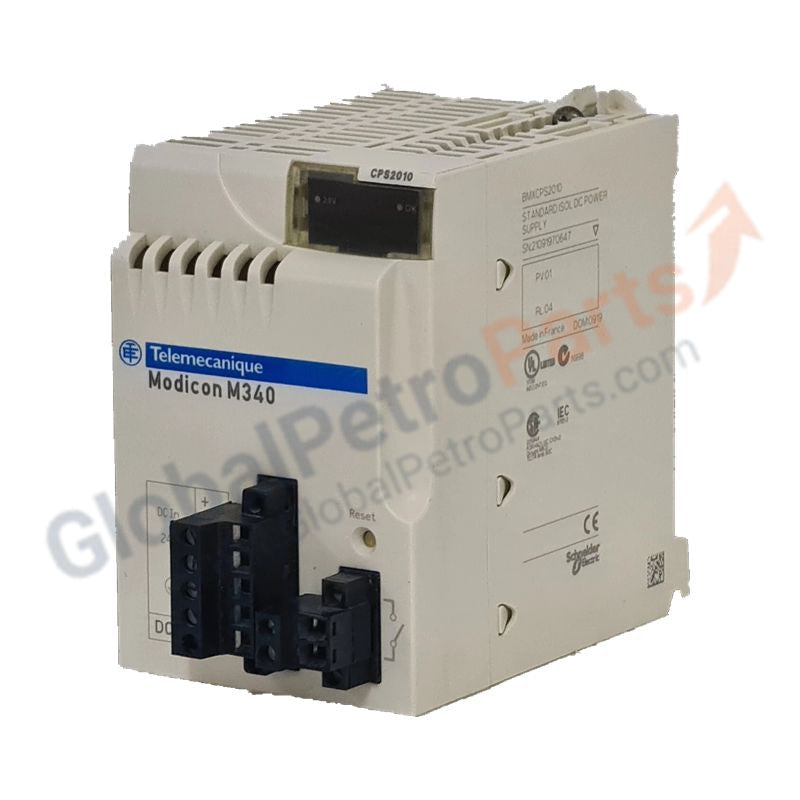

Isolated Power Supply Schneider Electric BMXCPS2010

Availability: 94 left in stock

Product Description The BMXCPS2010 is a DC-to-DC isolated power supply module for the Schneider Electric Modicon X80 platform. Designed for 24 V DC primary power sources,...

SKU: BMXCPS2010

Manufacturer: Schneider
Product No.: BMXCPS2010
Product Type: Isolated Power Supply
Product Origin: France
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The BMXCPS2010 is a DC-to-DC isolated power supply module for the Schneider Electric Modicon X80 platform. Designed for 24 V DC primary power sources, it provides isolated secondary voltages for the backplane, protecting processors and I/O modules from voltage spikes and common-mode noise. Ideal for battery-powered, solar, or DC-only industrial systems.

Technical Specifications

Item	Specification
Input Voltage	24 V DC (18–31.2 V DC)
Input Current	1 A @ 24 V DC
Inrush Current	30 A @ 24 V DC
Total Secondary Power	20 W
3.3 V DC Backplane Logic	8.3 W
24 V DC Backplane I/O & CPU	16.8 W
Protection (Primary)	Internal fuse (non-serviceable)
Protection (Secondary)	Overload, overvoltage, short-circuit
Power Dissipation	≤ 8.5 W
Isolation	> 100 MΩ @ 500 V DC (primary to secondary)
Status Indicator	Green LED (Power OK)
Diagnostics	Alarm relay contact (NC)
Operating Temperature	0–60 °C

Typical Applications

Remote battery-powered or solar PLC sites
Oil & gas wellhead monitoring
Marine vessel control systems
Telecom or RTU installations
Solar-powered water irrigation controllers

Notes

Compatible with M340 and M580 backplanes
Internal fuse is non-serviceable; replace module if fuse blows
Handles short DC interruptions with 1–10 ms hold-up time depending on load
