Woodward 8200-226 Part # 8200-226 | Servo Control Unit 24V

Availability: 10 left in stock

Woodward 8200-226 Servo Position Controller Actuator Driver Module The 8200-226 (Model: 8200-226) is a high-precision Servo Position Controller engineered to drive industrial...

SKU: 8200-226

Manufacturer: Woodward
Product No.: 8200-226
Product Type: Servo Position Controller / Actuator Driver
Product Origin: USA
Payment:T/T, Western Union
Weight: 1550g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

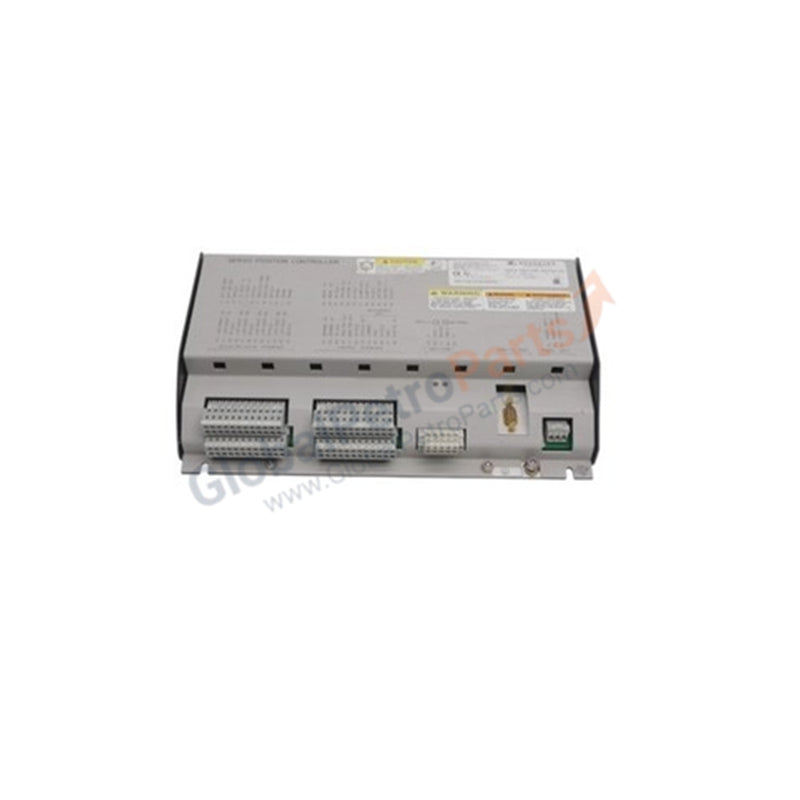

Woodward 8200-226 Servo Position Controller Actuator Driver Module

The 8200-226 (Model: 8200-226) is a high-precision Servo Position Controller engineered to drive industrial servo valves and process complex position demand signals. This module serves as a critical interface between electronic governors and hydraulic or pneumatic actuators, specifically designed to replace and upgrade legacy models 8200-224 and 8200-225. By converting low-level control signals into high-current drive outputs, the 8200-226 (Part Number: 8200-226) ensures the exact fuel metering and valve positioning required for stable turbine and engine speed regulation.

Built for the rigors of mission-critical power generation and marine propulsion, the 8200-226 (Model: 8200-226) features an 11-bit resolution for ultra-fine actuator adjustments. It operates on a nominal 24 VDC supply and offers a flexible current range of $\pm$ 10 to $\pm$ 250 mA, making it compatible with a wide array of Woodward proportional actuators, including the 512 and 8256 series. Its digital architecture eliminates the calibration drift associated with analog components, maintaining E-E-A-T (Expertise, Authoritativeness, Trustworthiness) standards in demanding industrial automation environments.

Detailed Technical Specifications

The 8200-226 (Model: 8200-226) is optimized for low-latency servo loops and high thermal efficiency.

Feature	Details
Manufacturer	Woodward
Model Number	8200-226
Product Type	Servo Position Controller / Actuator Driver
Input Power	18–32 VDC (Nominal 24 VDC)
Actuator Current Range	$\pm$ 10 mA to $\pm$ 250 mA (Configurable)
Control Signal Input	4–20 mA, 1–5 VDC, or PWM
Input Impedance	200 $\Omega$
Operating Range	2–22 mA (Signal Input)
Resolution	11 bits
Power Dissipation	20 W Typical Heat Load
Protection	Overvoltage, Reverse Polarity, Short-Circuit
Operating Temperature	–40°C to +70°C
Dimensions	32.9 cm $\times$ 20.3 cm $\times$ 6.5 cm
Weight	1.55 kg (3.42 lbs)
Origin	USA
