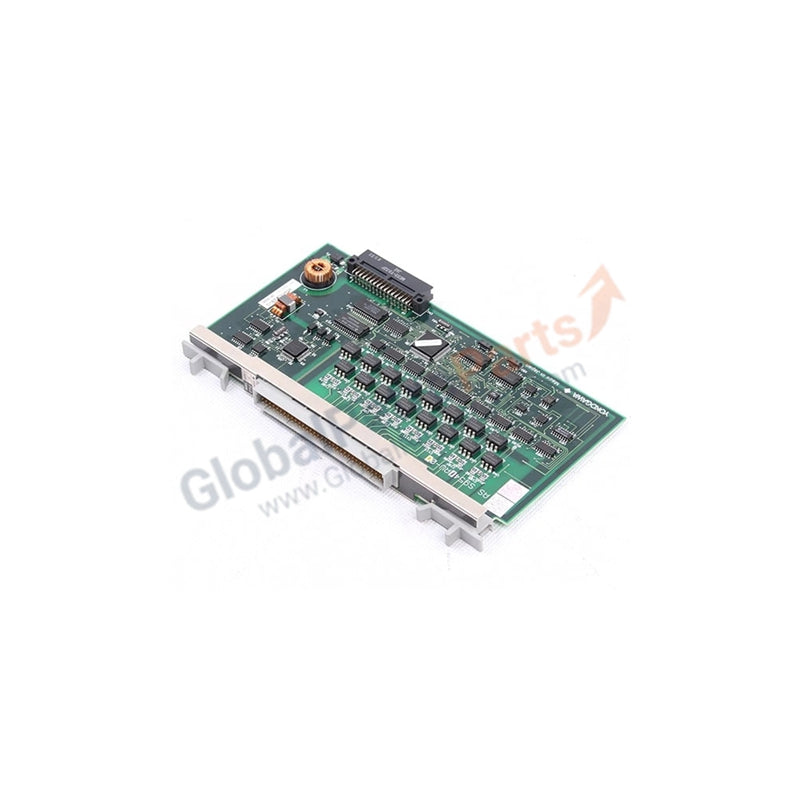

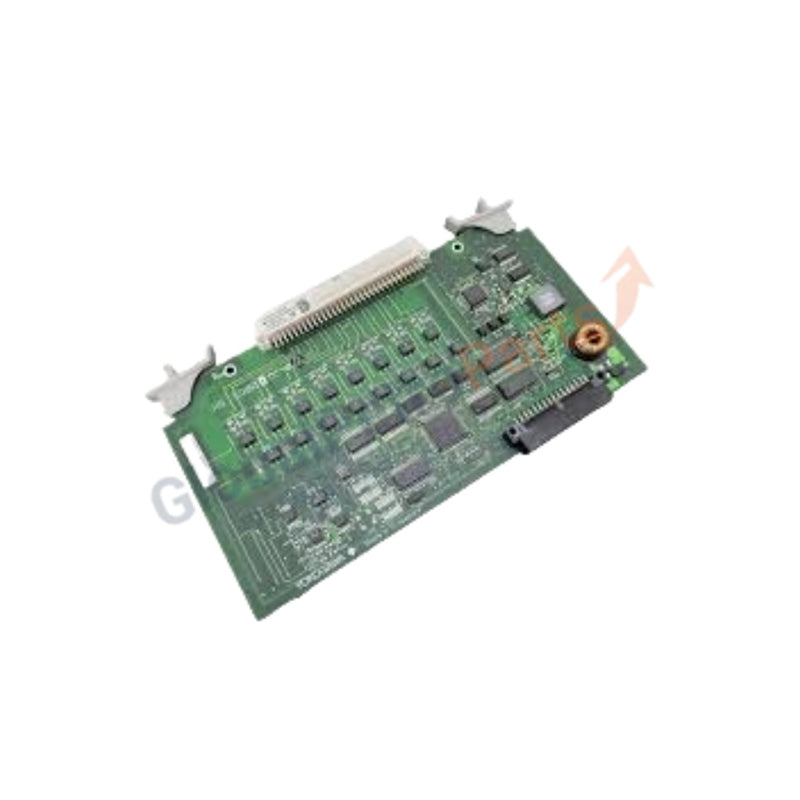

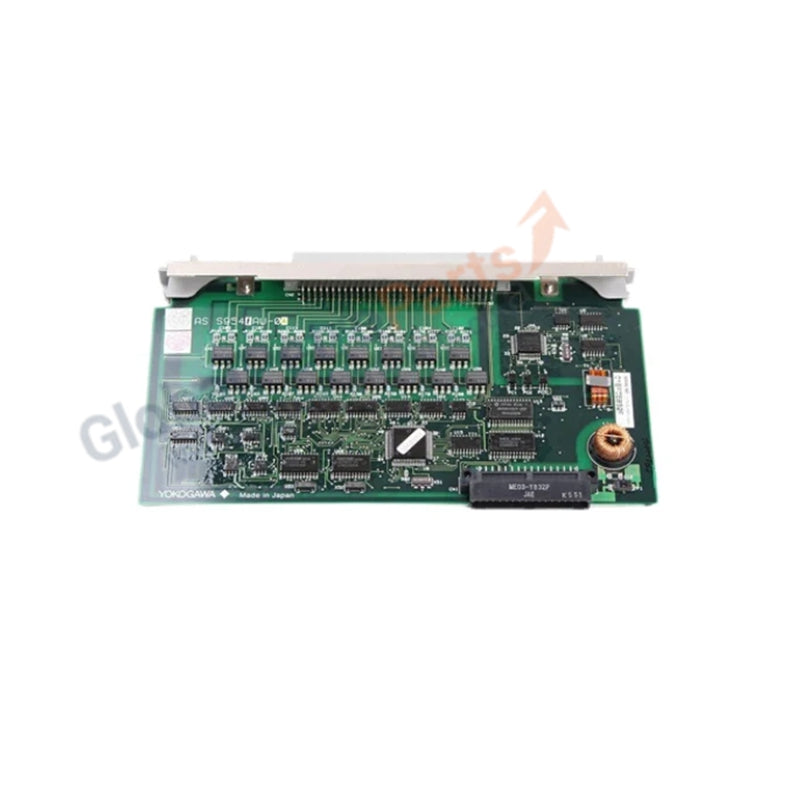

AMM22-S3 | Yokogawa 16-Channel Isolated Multiplexer Unit

Availability: 99 left in stock

Yokogawa AMM22 Style S3 16-Channel Multiplexer Input Module The AMM22 Style S3 (Model: AMM22) is a high-precision analog input multiplexer module engineered...

SKU: AMM22

Manufacturer: Yokogawa
Product No.: AMM22
Product Type: 16-Channel Isolated Multiplexer Unit
Product Origin: 日本
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AMM22 Style S3 16-Channel Multiplexer Input Module

The AMM22 Style S3 (Model: AMM22) is a high-precision analog input multiplexer module engineered for Yokogawa’s CENTUM VP and CS 3000 Distributed Control Systems (DCS). As a core component of the Field I/O (FIO) subsystem, the AMM22 Style S3 (Order Number: AMM22-S3) provides 16 isolated channels for the acquisition of critical process signals, including 4–20 mA current loops and various voltage inputs. The "Style S3" revision signifies an advanced hardware iteration optimized for superior noise immunity and long-term stability in high-demand industrial environments.

This module utilizes a multiplexing architecture to deliver high-resolution A/D conversion across all channels while maintaining a slim physical footprint. The AMM22 Style S3 (Part Number: AMM22-S3) is designed with galvanic isolation between the field-side circuitry and the system backplane, shielding the Field Control Station (FCS) from electrical transients and ground loops. It is widely recognized for its Expertise and Trustworthiness (E-E-A-T) in safety-critical sectors such as petrochemical refining, offshore oil & gas, and power generation.

Detailed Technical Specifications

The AMM22 Style S3 (Model: AMM22-S3) provides the following technical parameters for high-performance signal acquisition:

Feature	Details
Manufacturer	Yokogawa Electric Corporation
Model Number	AMM22
Style Code	S3
Product Type	Multiplexer Analog Input Module
Number of Channels	16 channels
Signal Type Supported	4–20 mA DC / Voltage Signals
Accuracy	±0.1% of full scale
Resolution	12 to 16-bit (System configuration dependent)
Input Resistance	250 Ω (for 4-20 mA)
Isolation	Galvanic isolation between field and system bus
Diagnostics	Open-circuit detection, signal quality monitoring
Power Consumption	200 mA (5 V DC), 150 mA (24 V DC)
Dimensions (W x H x D)	1.0 x 5.0 x 8.0 in (2.5 x 12.7 x 20.3 cm)
Weight	0.2 kg (6.1 oz)
Country of Origin	Japan
