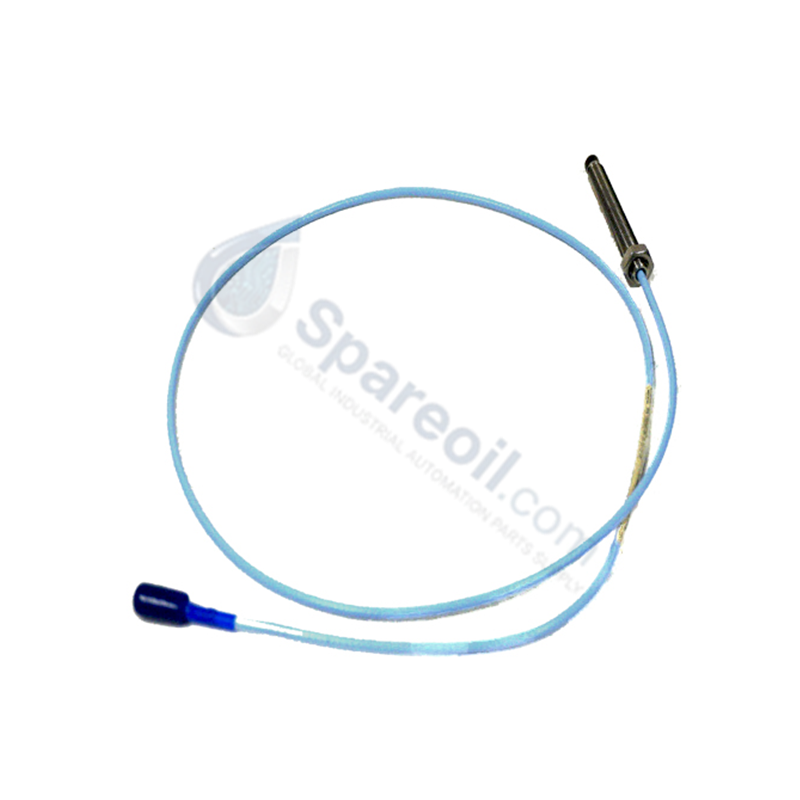

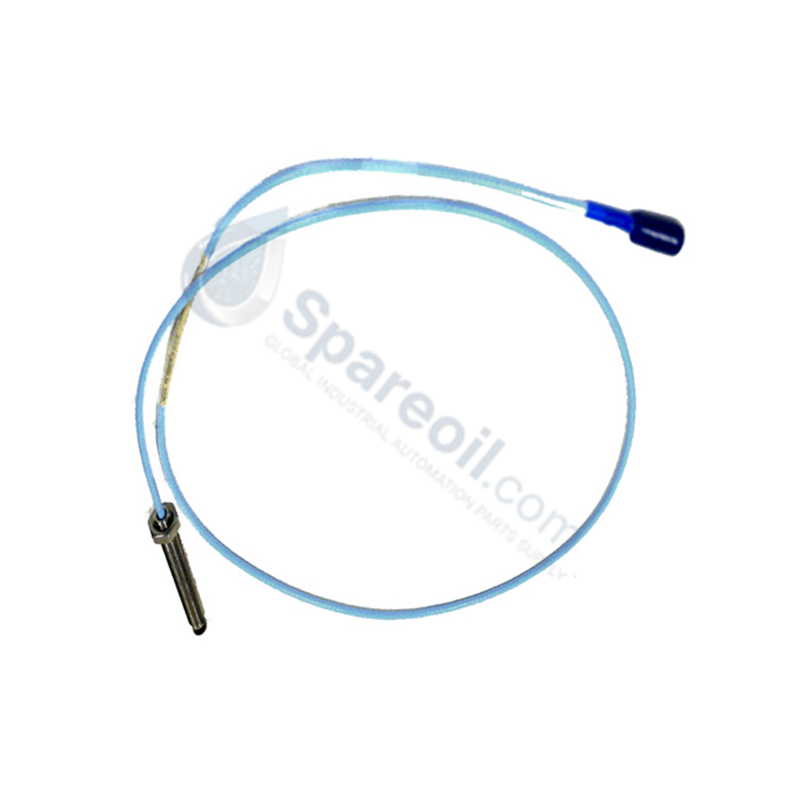

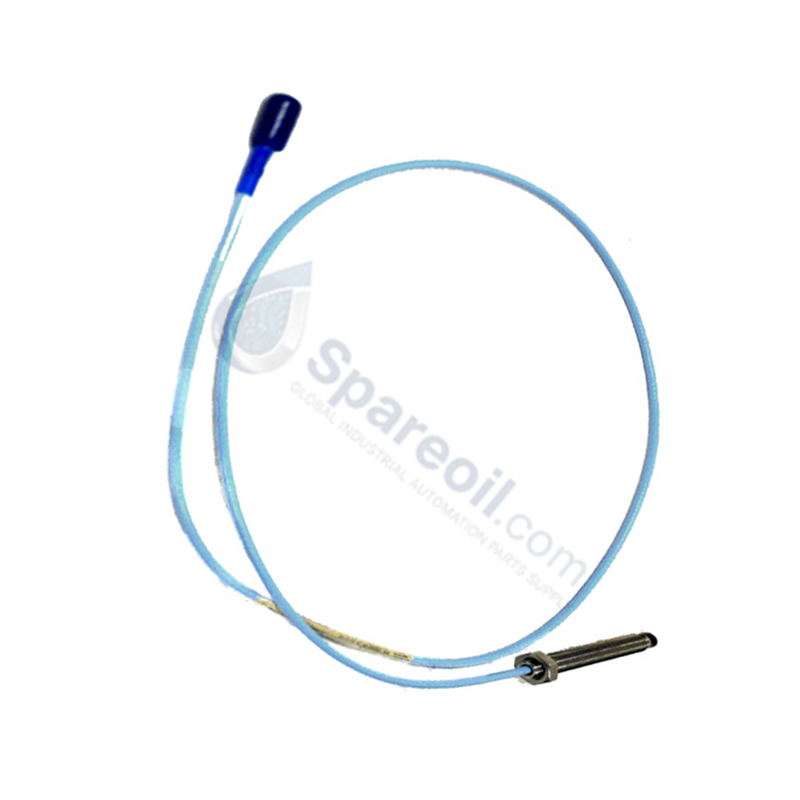

Configured for displacement sensing in machine monitoring networks, the Bently Nevada 330101-00-12-10-02-05 (330101 Proximity Probe) provides direct electrical translation of shaft position for integration with vibration monitoring platforms.

Suffix Breakdown & Model Matrix

Suffix Description
330101 Base Model: 3300 XL 8 mm Probe, 3/8-24 UNF thread
00 Unthreaded Length: 0.0 in
12 Overall Case Length: 1.2 in
10 Total Length: 1.0 m (3.3 ft)
02 Connector: Miniature coaxial ClickLoc connector, standard cable
05 Agency Approval: CSA, ATEX, IECEx

Hardware Specifications

Parameter Specification
Model 330101-00-12-10-02-05
Brand Bently Nevada
Origin USA
Dimensions 1.2 in case length, 1.0 m cable
Operating Temp -51 deg C to +177 deg C
Power Consumption N/A (Passive transducer)
Mounting Thread 3/8-24 UNF

Eddy-Current Probe Scaling and Rotor Dynamics

The 330101 transducer relies on eddy-current probe scaling to convert the physical air gap between the probe tip and the target into an electrical output. Accurate rotor dynamics analysis requires the sensor to maintain a linear response; therefore, gap voltage validation at -10 VDC is required during commissioning to center the probe in its linear range. Proper cross-talk suppression is achieved through the use of the shielded coaxial cable assembly, which must be routed to avoid electromagnetic interference from adjacent high-power signal loops.

Frequently Asked Questions

Q: Does the inclusion of CSA, ATEX, and IECEx approvals require specific field wiring practices?

A: Yes. Installations in hazardous areas must strictly follow the local electrical code and the specific control drawings provided in the probe certification documentation to maintain intrinsic safety ratings.

Q: Can the cable be extended beyond the specified 1.0 m total length?

A: No. The 3300 XL system electrical characteristics are calibrated based on specific system lengths. Any modification to the cable length alters the system impedance, leading to signal distortion and loss of measurement accuracy.

Field Installation Guidelines

  1. Clean the 3/8-24 UNF mounting threads and apply an approved anti-seize compound if required for the specific machine case material.
  2. Carefully thread the probe into the mounting bracket until the tip contacts the target surface, then back out to the target gap distance corresponding to the -10 VDC output.
  3. Secure the probe using the jam nut, applying sufficient torque to prevent vibration-induced slippage without deforming the probe case.
  4. Utilize shielded conduit for all cable routing to ensure signal integrity and protection against physical damage or electromagnetic noise.
