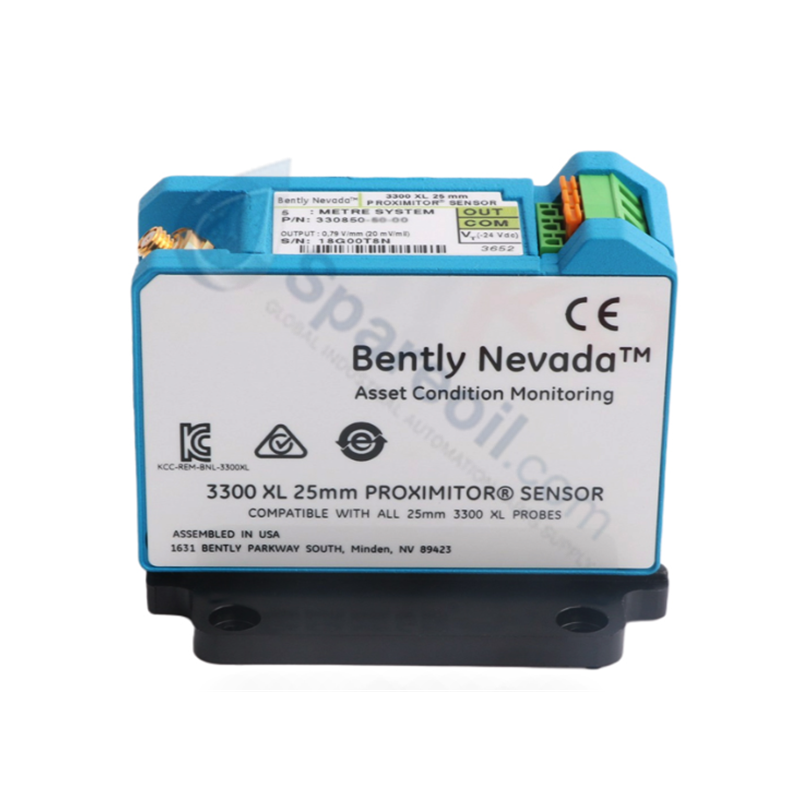

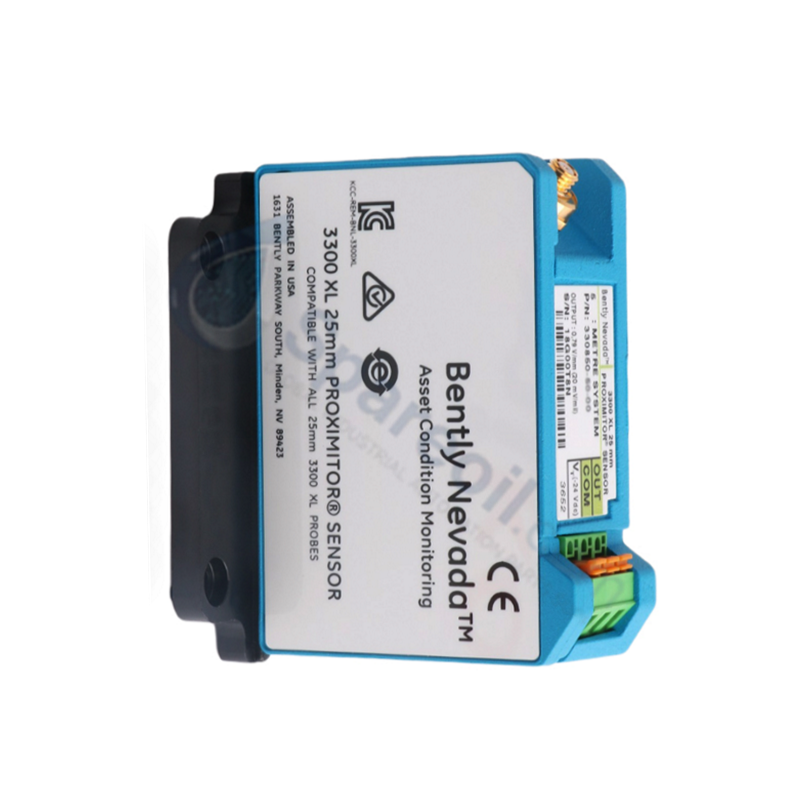

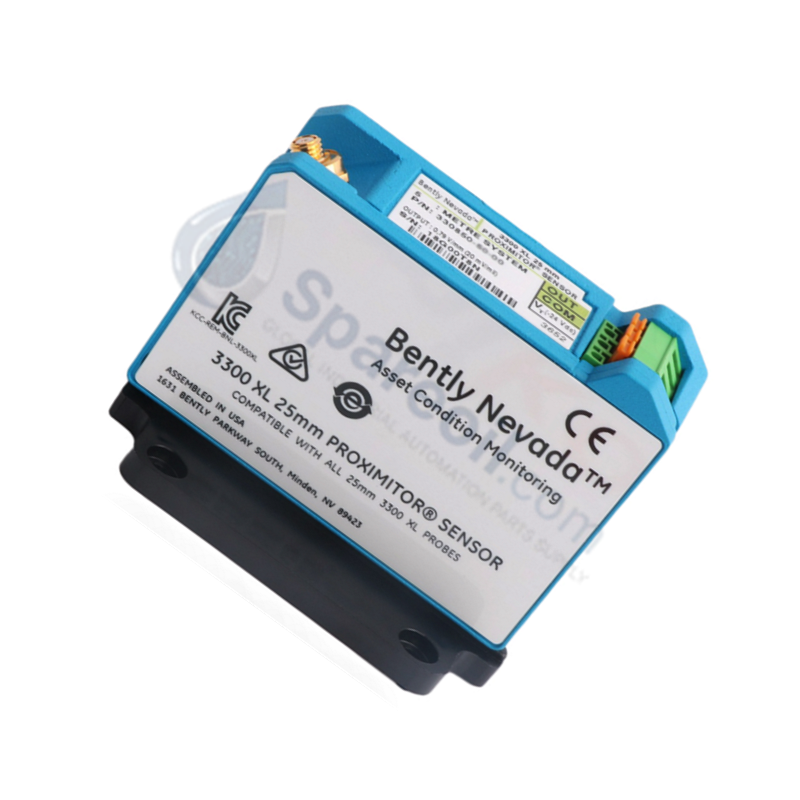

330850-50-05 Bently Nevada Proximitor Sensor

330850-50-05 | BENTLY NEVADA | 3300 XL 25 mm Proximitor Sensor

330850-50-05 | BENTLY NEVADA | 3300 XL 25 mm Proximitor Sensor

Disponibilidad: 10 Quedan en stock

Configured for high-frequency displacement measurement in rotating machinery monitoring networks, the BENTLY NEVADA 330850-50-05 (330850 3300 XL 25 mm Proximitor...

Código: 330850-50-05

Manufacturer: Bently Nevada
Product No.: 330850-50-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for high-frequency displacement measurement in rotating machinery monitoring networks, the BENTLY NEVADA 330850-50-05 (330850 3300 XL 25 mm Proximitor Sensor) provides direct physical signal processing between the non-contacting inductive probe and the vibration monitoring instrumentation.

Hardware Specifications

Parameter	Specification
Model	330850-50-05
Brand	Bently Nevada
Origin	USA
Weight	0.255 kg
Dimensions	60 mm x 60 mm x 100 mm
Operating Temp	-20 deg C to +80 deg C
Power Consumption	24 VDC
Output Signal	4-20 mA
Frequency Range	10 Hz to 1 kHz

Mechanical Monitoring and TSI Characteristics

The 330850-50-05 utilizes precise eddy-current probe scaling to translate target gap variations into a proportional 4-20 mA output signal. During initial system commissioning, engineers must perform gap voltage validation, targeting a -10 VDC nominal setpoint to ensure the linear measurement range is centered. This component supports rotor dynamics analysis by maintaining signal fidelity across the defined frequency band. When utilizing multiple probes in confined bearing housings, proper installation spacing is required to achieve cross-talk suppression and prevent interference between adjacent induction coils.

Frequently Asked Questions

Q: Does the 330850-50-05 support hot-swapping during operation?

A: No, the module requires the power supply to be disconnected before removal from the DIN-rail or panel mount to prevent transient voltage spikes on the loop.

Q: How is the SpringLoc terminal strip secured for vibration-heavy environments?

A: The SpringLoc terminals are designed to maintain constant clamping force on the wire conductors; however, ensure wire ferrules are used to prevent strand fatigue under high-vibration conditions.

Field Installation Guidelines

Mount the Proximitor assembly to a grounded DIN-rail or panel surface to ensure consistent chassis potential.
Maintain a minimum separation distance as specified by the machine's technical manual when installing multiple probes to facilitate cross-talk suppression.
Route signal cabling through shielded, rigid conduits, keeping the signal path physically isolated from AC power or motor drive cabling.
Ensure the probe-to-target alignment is perpendicular to the shaft surface; use an appropriate mounting bracket to secure the probe body against rotation.
Verify the loop resistance and terminal tightness before initiating the 24 VDC power cycle to confirm proper 4-20 mA signal transmission.
