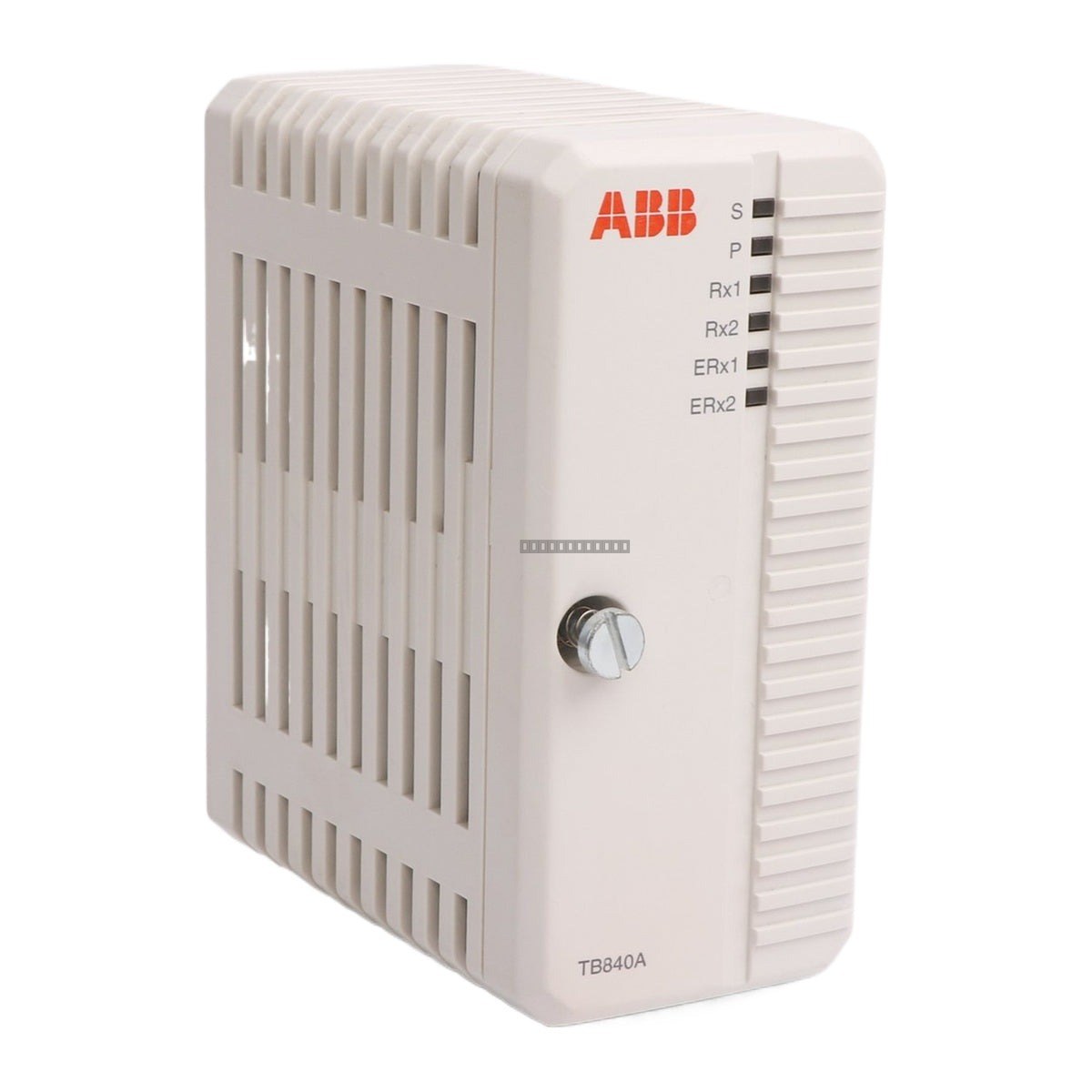

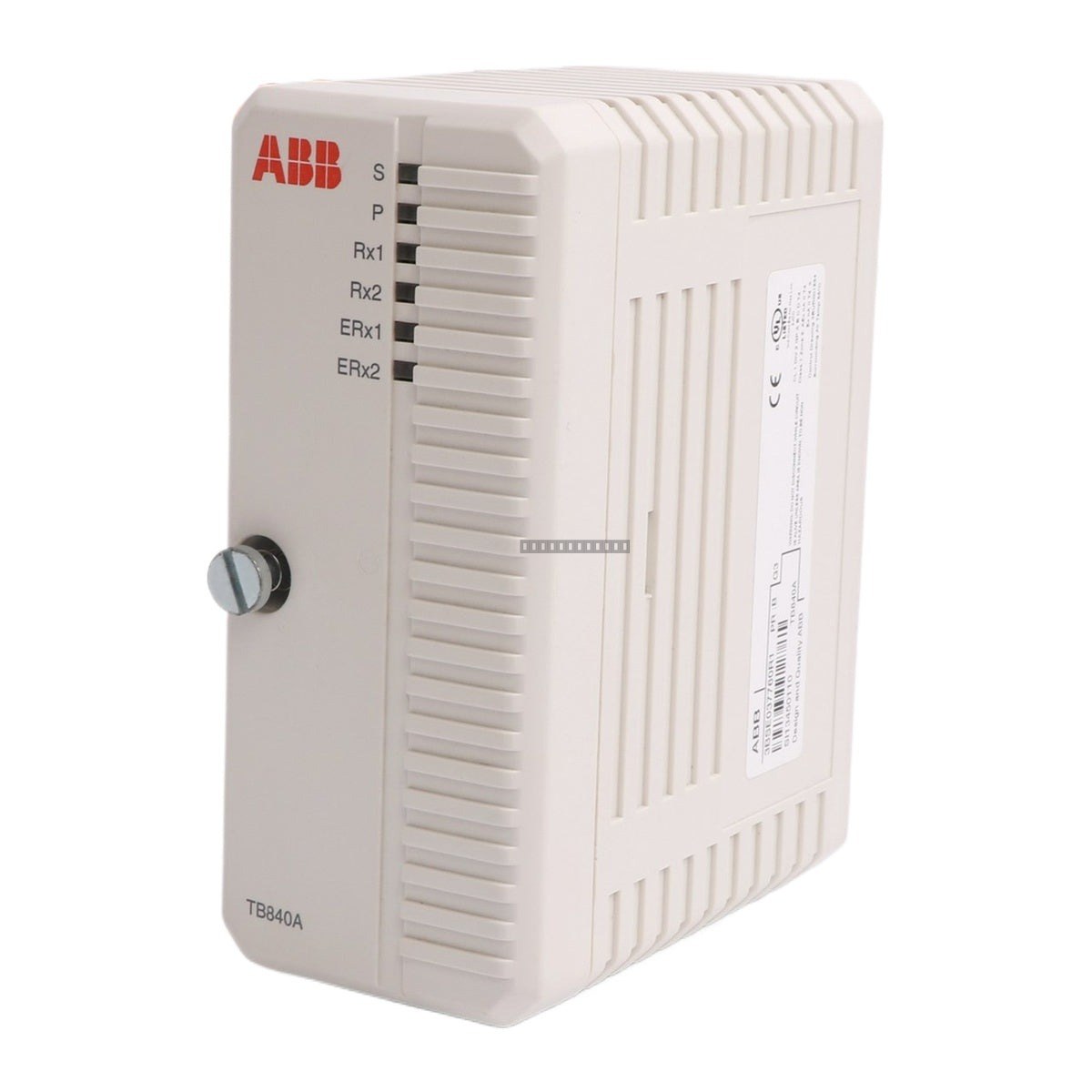

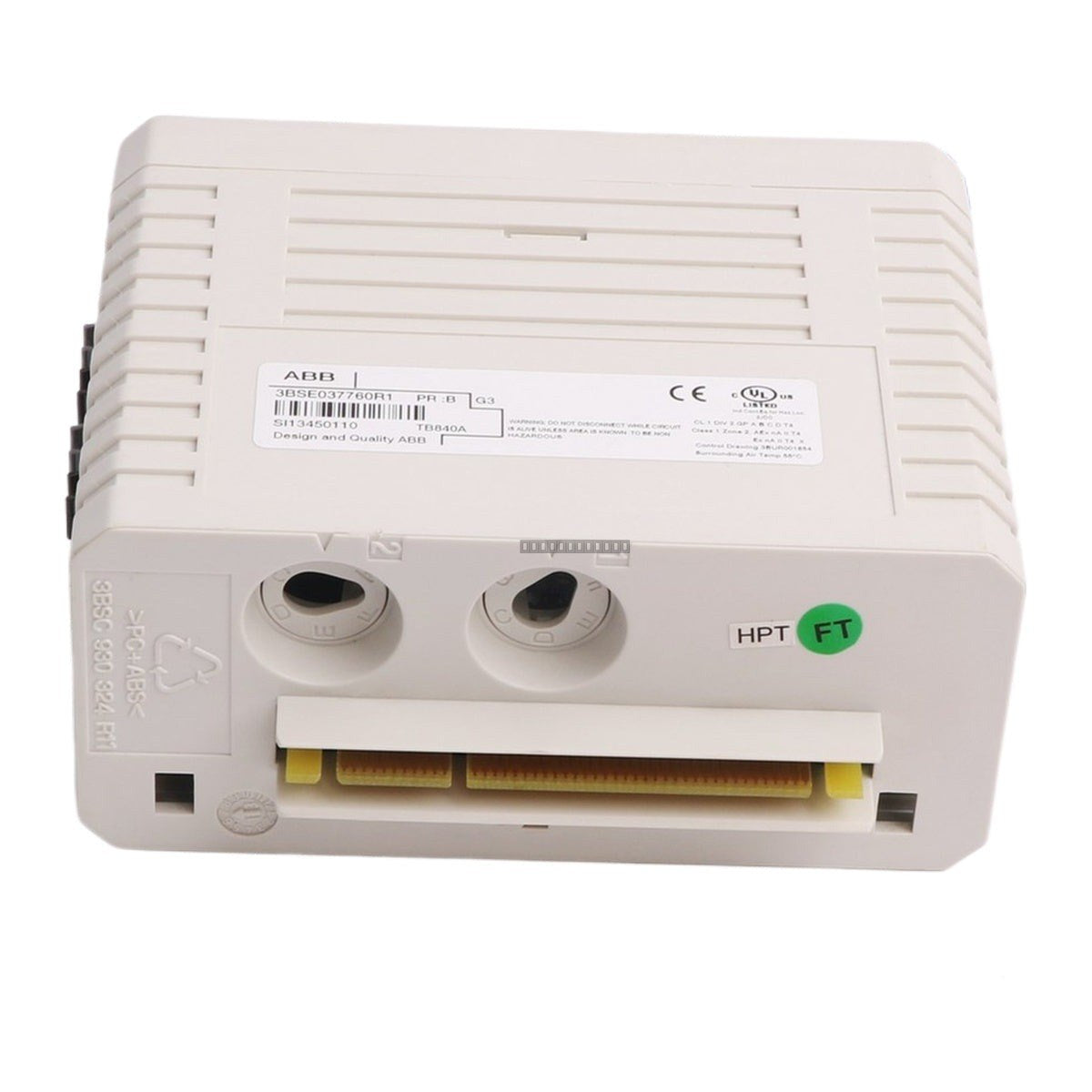

ABB TB840A 3BSE037760R1 Modulebus Cluster Modem

Disponibilidad: 7 Quedan en stock

DescriptionThe ABB TB840A (3BSE037760R1) is a high-performance Modulebus Cluster Modem designed for the S800 I/O distributed process control system. This...

Código: TB840A 3BSE037760R1

Manufacturer: ABB
Product No.: TB840A 3BSE037760R1
Product Type: Modulebus Cluster Modem
Product Origin: Sweden
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The ABB TB840A (3BSE037760R1) is a high-performance Modulebus Cluster Modem designed for the S800 I/O distributed process control system. This module serves as a critical fiber optic interface to the Optical ModuleBus, enabling robust communication between parent controllers and remote I/O clusters. The TB840A is specifically engineered for 1+1 redundant configurations, where it facilitates connection to redundant optical ModuleBus lines while maintaining a unified electrical ModuleBus for the connected I/O modules.

Features

Dual fiber optic ports for connection to the Optical ModuleBus.
Integrated electrical ModuleBus interface for local I/O module communication.
Supports 1+1 redundant operation for high-availability applications.
Supervisory functions for monitoring I/O ModuleBus health and power supply status.
Isolated power supply design to protect I/O modules.
Input power is internally fused for enhanced safety.
Supports up to 12 I/O modules on the electrical bus and up to 7 clusters on the fiber optic bus.

Applications

Power Generation: Distributed data acquisition and control for thermal and nuclear power plants.
Oil & Gas: Process control in refineries, offshore platforms, and pipeline pressure stations.
Chemical Processing: Continuous control for ethylene cracking and pharmaceutical manufacturing.
Heavy Industry: Blast furnace and converter control in metallurgy, and mining beneficiation systems.
Water Management: Large-scale urban sewage treatment and water pumping stations.

Technical Specifications

Product Model	TB840A (3BSE037760R1)
Communication Protocol	Modulebus
Operating Mode	Slave
Power Consumption (24V)	120 mA (typical)
Operating Temperature	0 to +55 degC
Storage Temperature	-40 to +70 degC
Hazardous Area Ratings	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine Certifications	ABS, BV, DNV-GL, LR

Installation Guidelines

Handling: This module contains sensitive electronic components. Always use proper ESD (Electrostatic Discharge) protection during handling and installation.
Mounting: Designed for mounting on a compatible MTU (Module Termination Unit) such as the TU841. Ensure the module is firmly seated to maintain electrical contact.
Power: Ensure the 24V DC power supply is disconnected before inserting or removing the module from the bus.
Cabling: Use appropriate fiber optic cables for the Optical ModuleBus connections. Ensure proper bend radius and protection for fiber runs to prevent signal loss.
Environment: Install in an environment compliant with the specified temperature ratings. Ensure adequate ventilation in the cabinet to prevent heat buildup.

FAQs

What is the primary function of the TB840A?

The TB840A acts as a fiber optic interface to the Optical ModuleBus, allowing for the distribution of I/O clusters and enabling 1+1 redundant operation in S800 I/O systems.

Can the TB840A be used in non-redundant systems?

While optimized for 1+1 redundancy, it serves as the standard interface for connecting I/O clusters to the Optical ModuleBus in various S800 I/O configurations.

What is the maximum capacity of the modem?

The modem supports up to 12 I/O modules on the electrical ModuleBus and up to seven clusters on the fiber optic ModuleBus.
