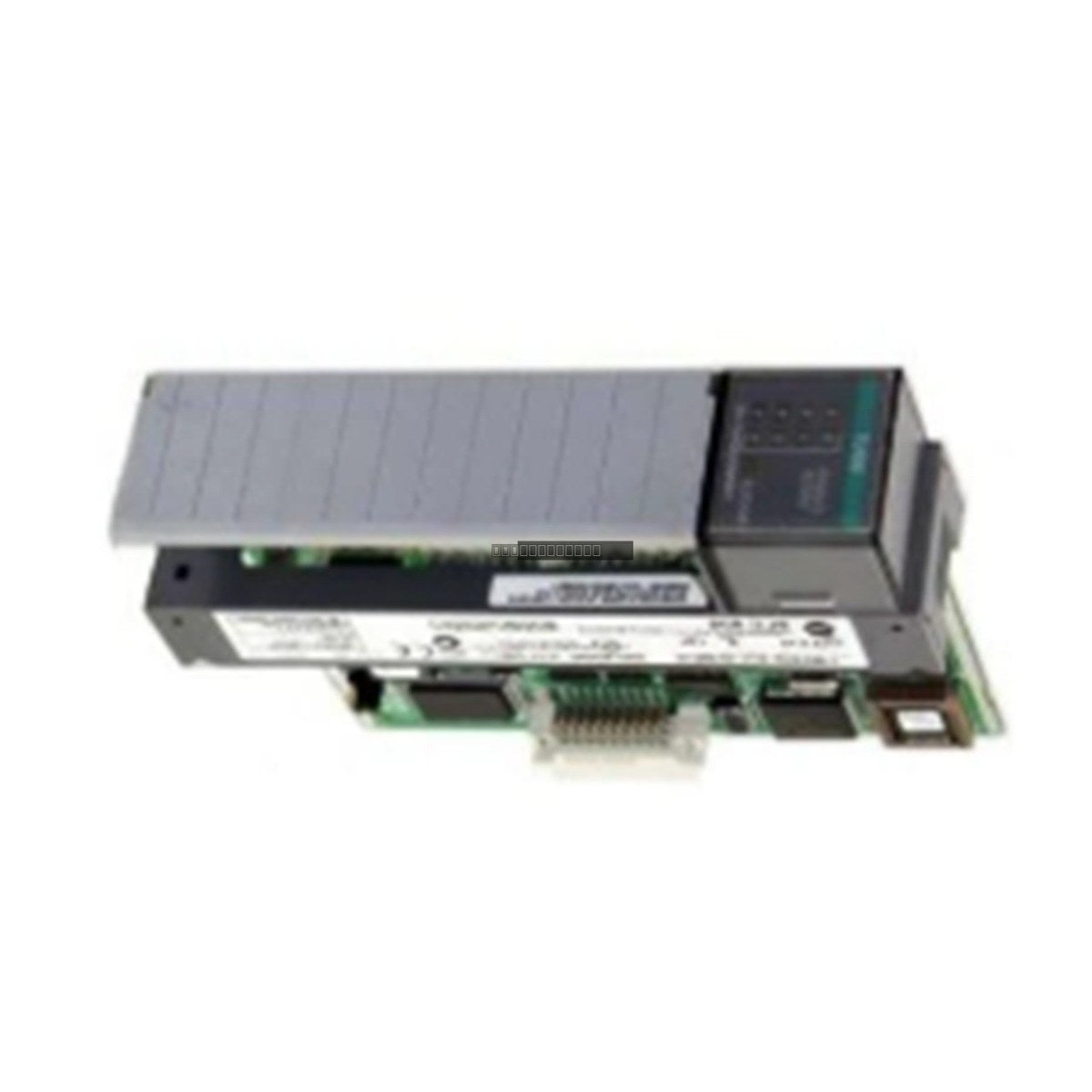

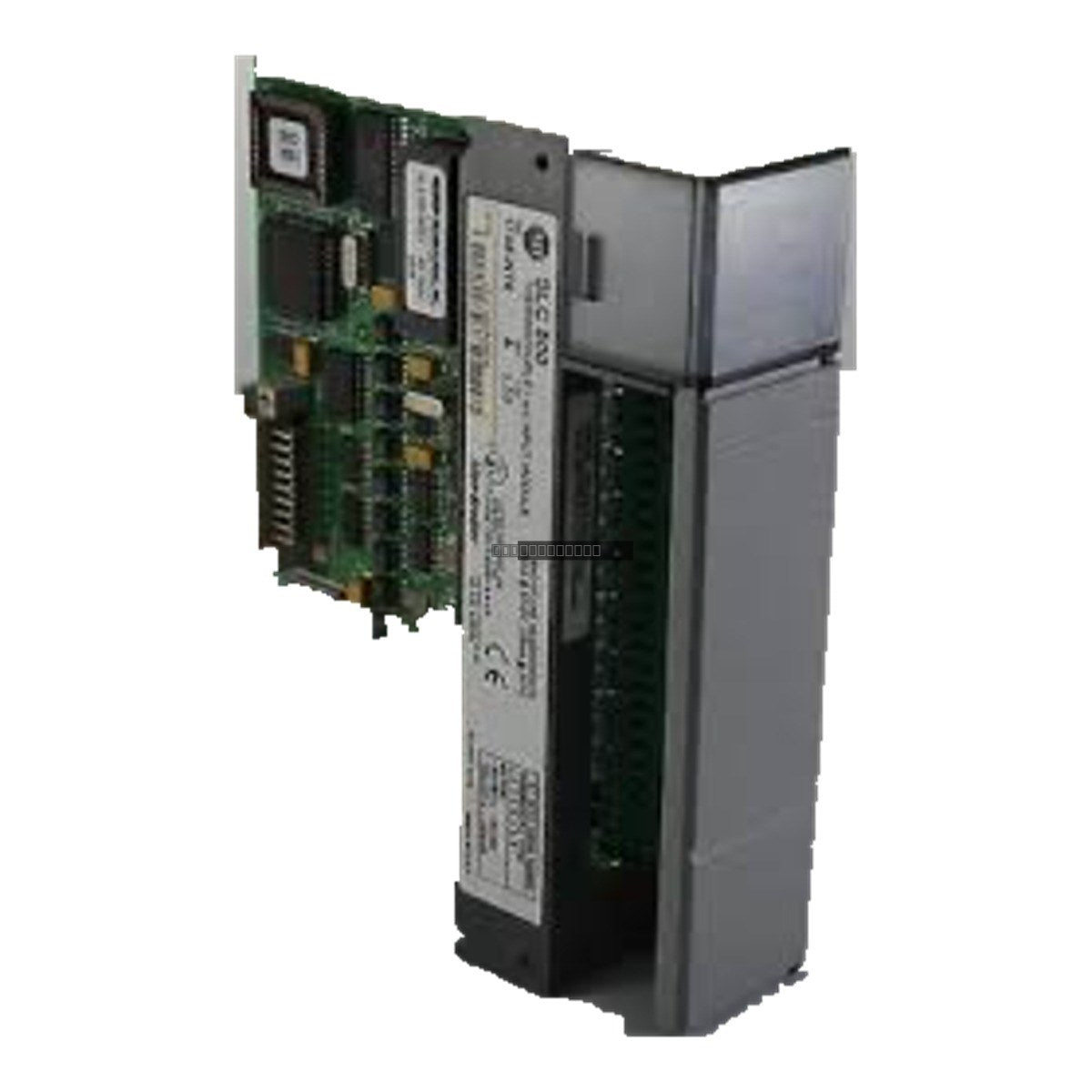

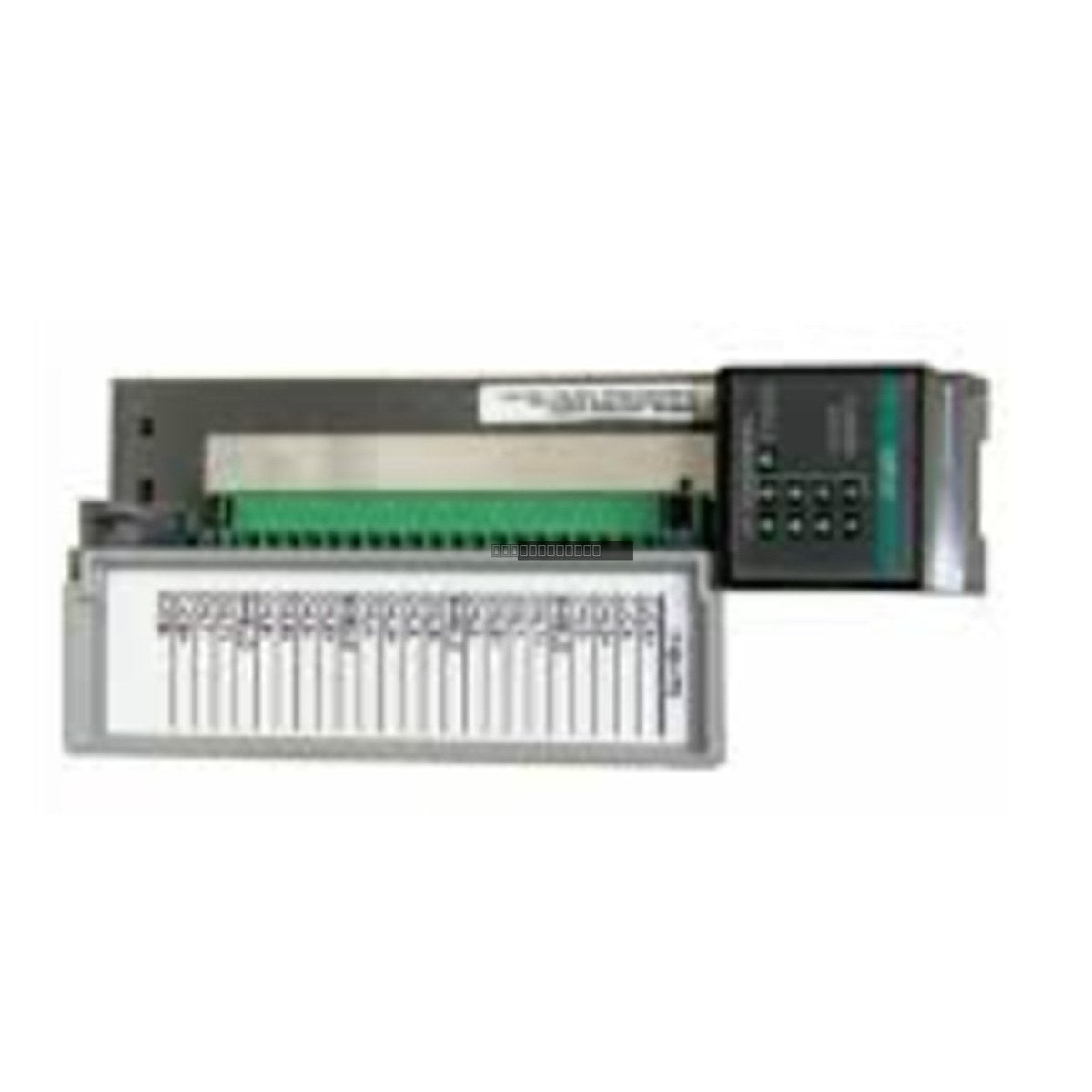

Allen-Bradley 1746-HSRV SLC 500 Servo Control Module

Disponibilidad: 8 Quedan en stock

The Allen-Bradley 1746-HSRV is a specialized Servo Control Module designed for the SLC 500 programmable controller family. This single-slot module...

Código: 1746-HSRV

Manufacturer: Allen-Bradley
Product No.: 1746-HSRV
Product Type: Servo Control Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Allen-Bradley 1746-HSRV is a specialized Servo Control Module designed for the SLC 500 programmable controller family. This single-slot module provides precise motion control capabilities, acting as an interface between the SLC 500 processor and various servo drive systems. It delivers an analog velocity command signal, allowing for sophisticated motion profiles within industrial automation applications.

Features

Single-slot module design for efficient rack utilization.
Provides an analog velocity command output with programmable limits reaching up to +/- 10 V DC.
Equipped with 3 digital inputs (24 V DC) and 1 digital output (24 V DC) for flexible control integration.
Optimized for seamless communication with Rockwell Automation servo drive hardware.

Applications

This module is primarily utilized in industrial environments requiring accurate motion control, such as packaging machinery, conveyor systems, assembly lines, and automated material handling equipment integrated with the SLC 500 platform.

Technical Specifications

Product Model	1746-HSRV
Module Type	Servo Control Module
Slot Requirement	Single Slot
Analog Output	+/- 10 V DC (Programmable)
Digital I/O	3 Inputs (24 V DC) / 1 Output (24 V DC)
Operating Temperature	0 to 60 degC (32 to 140 degF)
Storage Temperature	-40 to 85 degC (-40 to 185 degF)
Relative Humidity	5 to 95% (non-condensing)

Installation Guidelines

Mount the module as close to the processor as possible within the SLC 500 chassis to minimize signal latency and electrical noise interference.
Ensure the system power is disconnected before installing or removing the module from the I/O rack.
Handle the module using proper ESD (Electrostatic Discharge) safety practices to prevent damage to internal circuitry.
Verify that all field wiring is properly secured to the terminal block and routed away from high-voltage power lines to maintain signal integrity.

FAQ

What is the primary function of the 1746-HSRV?
The 1746-HSRV acts as an interface module that allows an SLC 500 controller to issue velocity commands to a servo drive, facilitating controlled motion in automated processes.

Does this module require a specific slot location?
Yes, it is recommended to install this module as close to the processor as possible to ensure optimal communication performance within the backplane.
