330780-90-05 Bently Nevada Proximitor Sensor

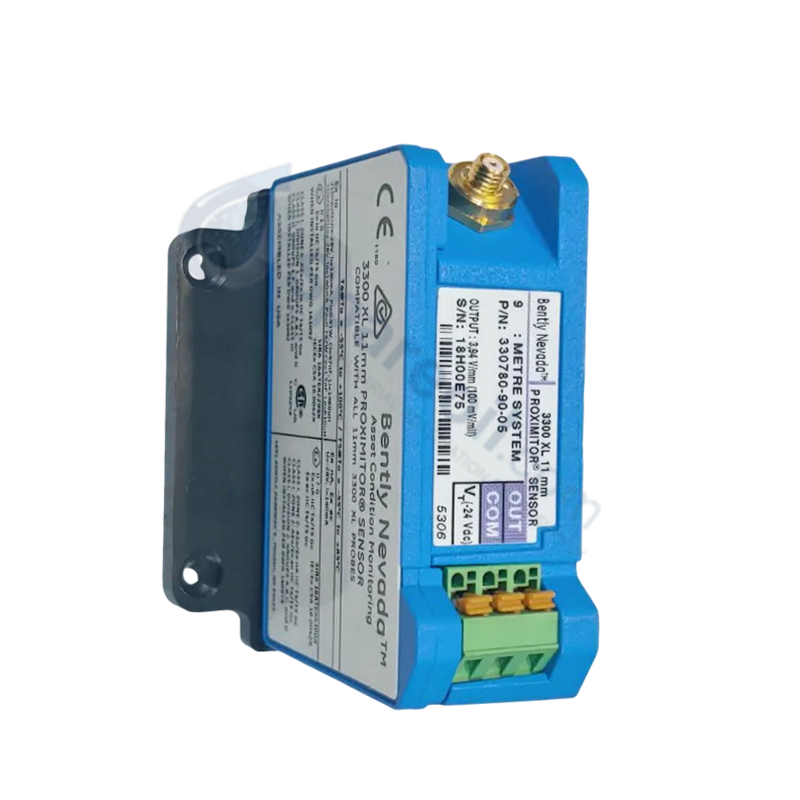

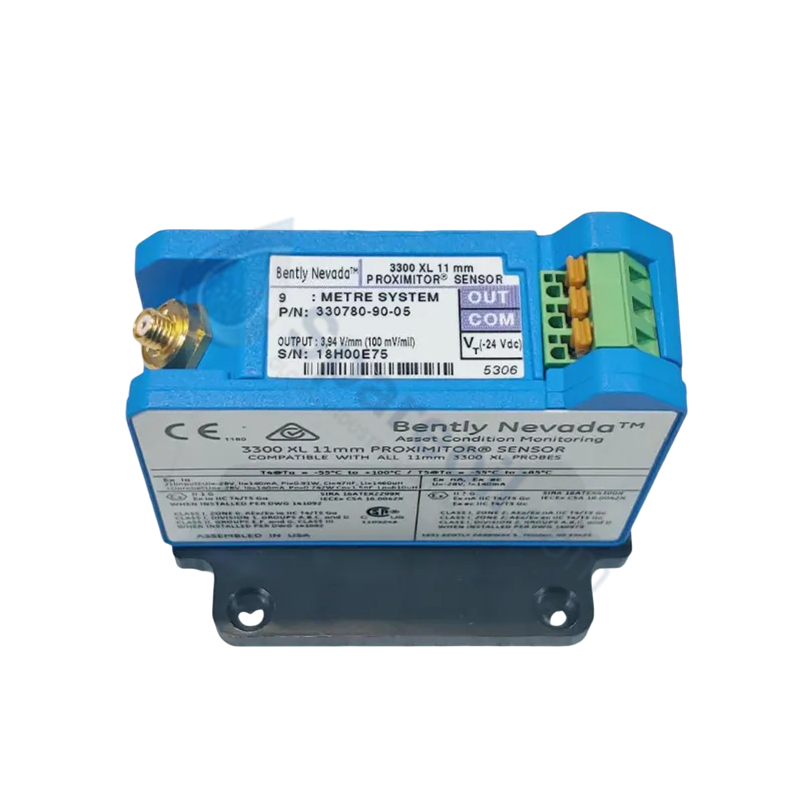

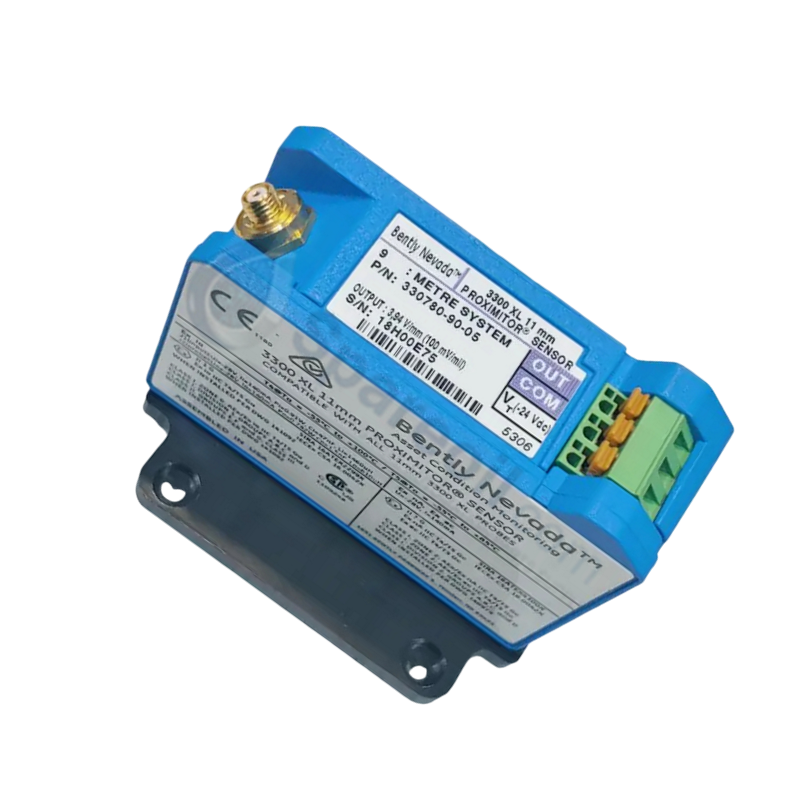

BENTLY NEVADA 330780-90-05 3300 XL Proximitor Sensor

BENTLY NEVADA 330780-90-05 3300 XL Proximitor Sensor

Disponibilidad: 10 Quedan en stock

The BENTLY NEVADA 330780-90-05, also cataloged as the 3300 XL Proximity Sensor, operates as a dedicated hardware component for non-contact...

Código: 330780-90-05

Manufacturer: Bently Nevada
Product No.: 330780-90-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The BENTLY NEVADA 330780-90-05, also cataloged as the 3300 XL Proximity Sensor, operates as a dedicated hardware component for non-contact displacement measurement within machine protection and condition monitoring networks. It processes high-frequency carrier signals to determine the relative gap between the probe tip and a metallic target surface.

Hardware Specifications

Parameter	Specification
Model	330780-90-05
Brand	Bently Nevada
Origin	USA
Weight	0.45 kg
Dimensions	60 mm x 60 mm x 100 mm
Operating Temp	-35 deg C to +65 deg C
Power Consumption	-24 VDC (-17.5 VDC to -26 VDC)
Output Sensitivity	3.94 V/mm (100 mV/mil)
Cable Length	9.0 meters
Mounting	Panel mount / DIN-rail

Mechanical Monitoring and TSI Characteristics

The 330780-90-05 utilizes eddy-current principle to facilitate precision vibration analysis. During system commissioning, engineers must perform gap voltage validation to ensure the steady-state reading targets -10 VDC at the specified mid-range gap. The sensor system is engineered for high-accuracy rotor dynamics observation, effectively suppressing cross-talk when multiple probes are installed in proximity on a single machine bearing. Signal linearity is maintained across the full specified range to ensure valid displacement data for machinery fault diagnosis.

Frequently Asked Questions

Q: What is the requirement for the probe tip clearance during installation?

A: The probe should be adjusted to achieve a gap voltage of -10 VDC for optimal linear range performance, which is typically the center of the 2 mm (80 mil) linear operating range.

Q: Does the 330780-90-05 support hot-swapping in a live monitoring system?

A: Yes, the 330780 XL series is designed to be removed or replaced while the power is active, provided that proper shielding and grounding protocols are maintained to prevent transient signal injection into the monitor.

Field Installation Guidelines

Ensure the probe cable is routed through rigid conduit or dedicated cable trays to prevent mechanical damage.
Maintain electrical isolation between the sensor housing and the machine casing if ground loops are suspected in the specific installation environment.
For the SpringLoc terminal connections, ensure the wire gauge is compatible with the clamp rating to prevent intermittent high-impedance paths.
Verify the system grounding impedance to ensure proper RFI/EMI immunity during high-speed rotating machinery operations.
All field wiring must be shielded, and the shield should be terminated at a single point to minimize noise pickup.
