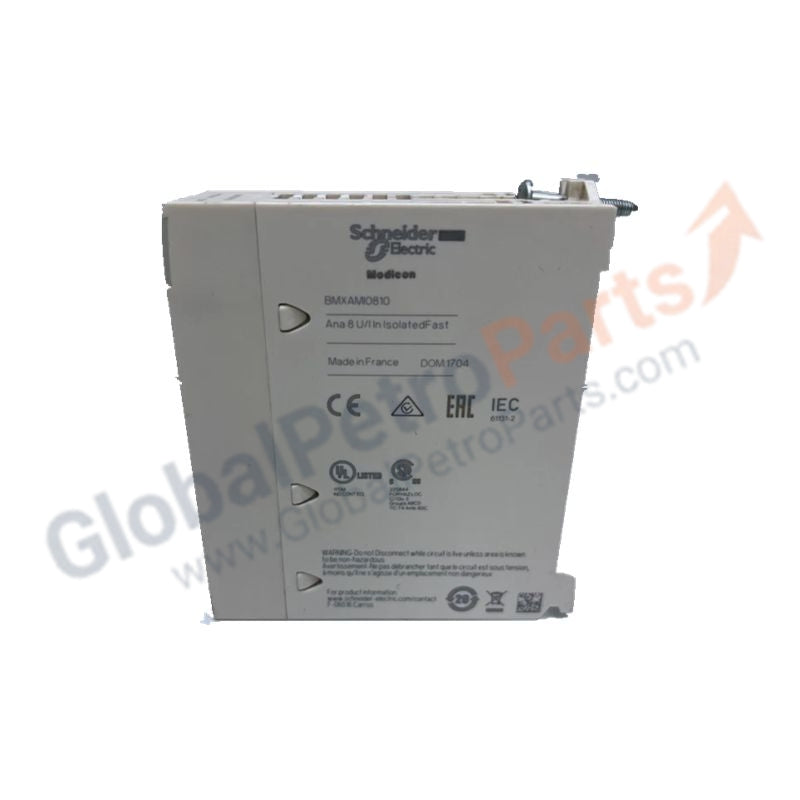

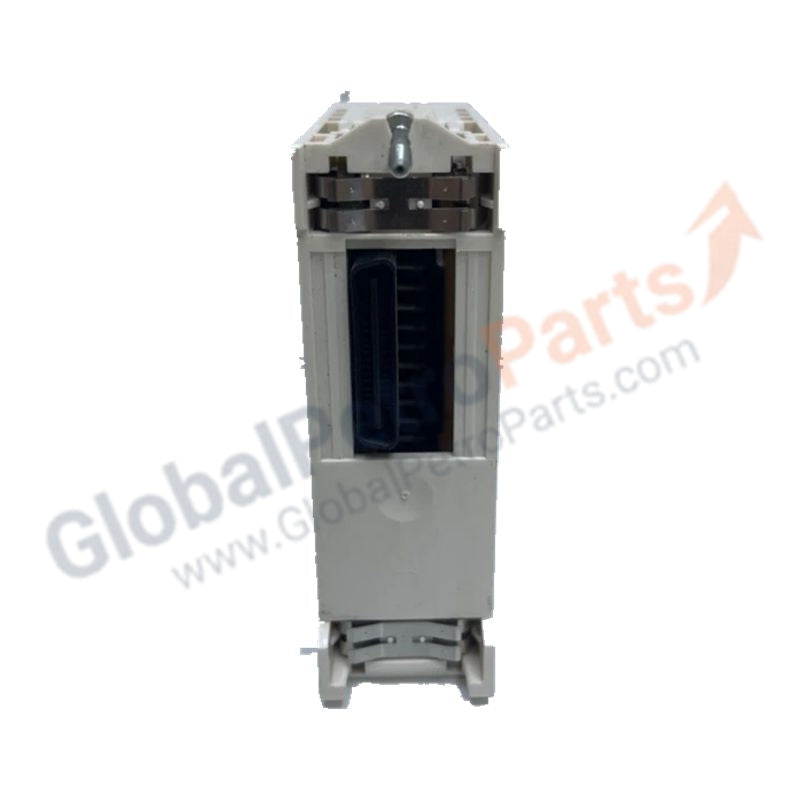

BMXAMI0810 Analog Input Module Schneider

Availability: 94 left in stock

Product Description The BMXAMI0810 is a high-density 8-channel isolated analog input module for the Schneider Electric Modicon X80 platform, compatible with M340 and M580 PAC systems. It supports...

SKU: BMXAMI0810

Manufacturer: Schneider
Product No.: BMXAMI0810
Product Type: Analog Input Module
Product Origin: France
Payment:T/T, Western Union
Weight: 310g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The BMXAMI0810 is a high-density 8-channel isolated analog input module for the Schneider Electric Modicon X80 platform, compatible with M340 and M580 PAC systems. It supports both voltage and current signals and provides 16-bit resolution for accurate signal acquisition in industrial process control environments. Full channel isolation minimizes noise, ground loops, and cross-interference.

Technical Specifications

Item	Specification
Channels	8 isolated analog inputs
Resolution	16-bit (15 bits + sign)
Voltage Inputs	±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V
Current Inputs	0–20 mA, 4–20 mA, ±20 mA
Input Impedance	10 MΩ (V); 250 Ω (mA)
Read Cycle	9 ms (standard); 1 ms + 1 ms/channel (fast)
Accuracy	±0.1% FS @ 25 °C
Temp Drift	30 ppm/°C
Isolation	1500 V AC (channel–bus / channel–ground)
CMRR	100 dB (50/60 Hz)
Power Consumption	150 mA @ 3.3 V DC
Terminal Block	28-way removable

Diagnostics & Protection

RUN / ERR / I/O LEDs
Broken wire detection (4–20 mA)
Over-range / under-range detection
IP20 housing, 3 gn vibration (IEC 60068-2-6)

Typical Applications

Temperature, pressure, and flow measurement
Chemical and water treatment processes
Analytical instrument signal acquisition
HVAC multi-point monitoring

Notes

Requires 28-way terminal block:

BMXXTSHPS00 (screw)
BMXXTSHPS10 (spring)
