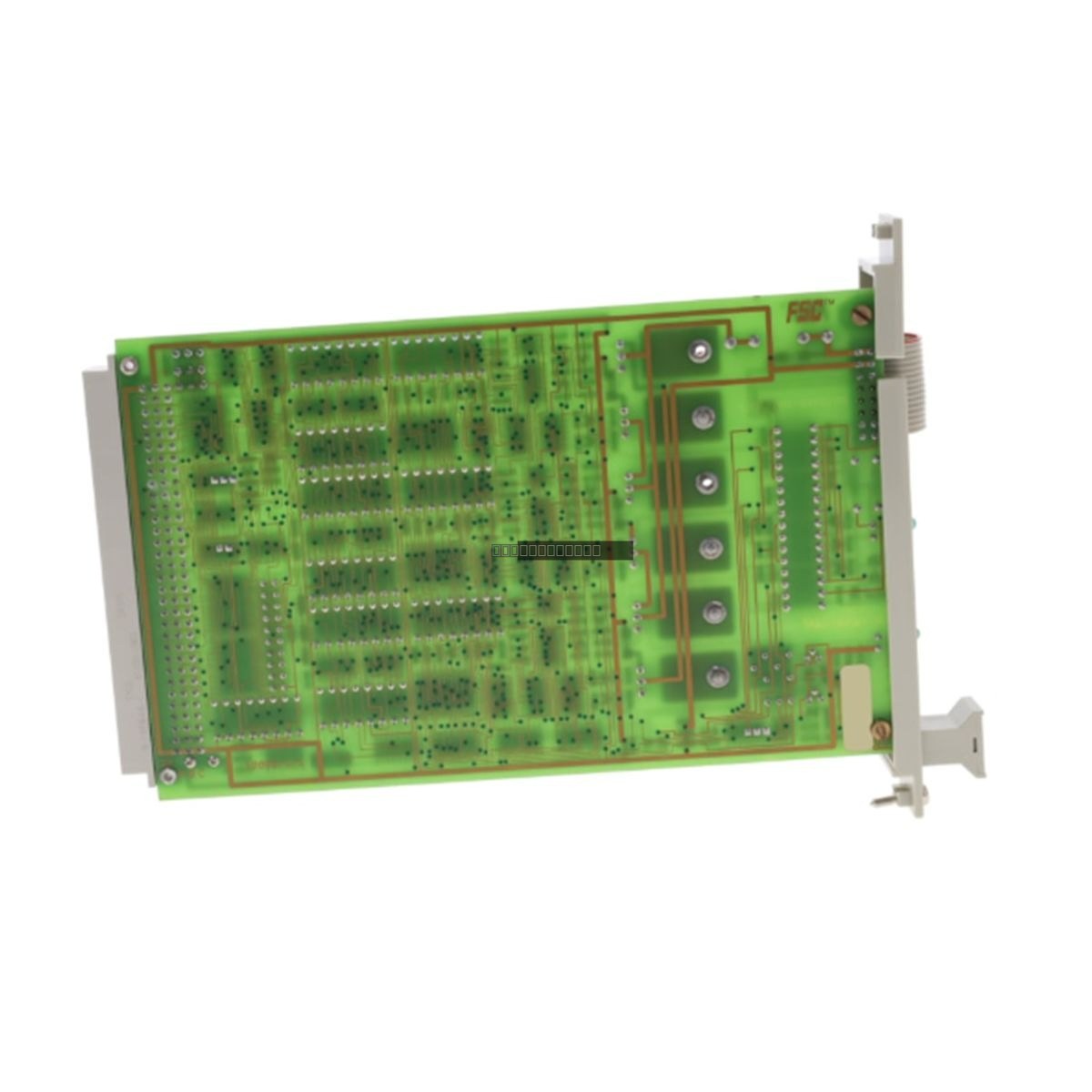

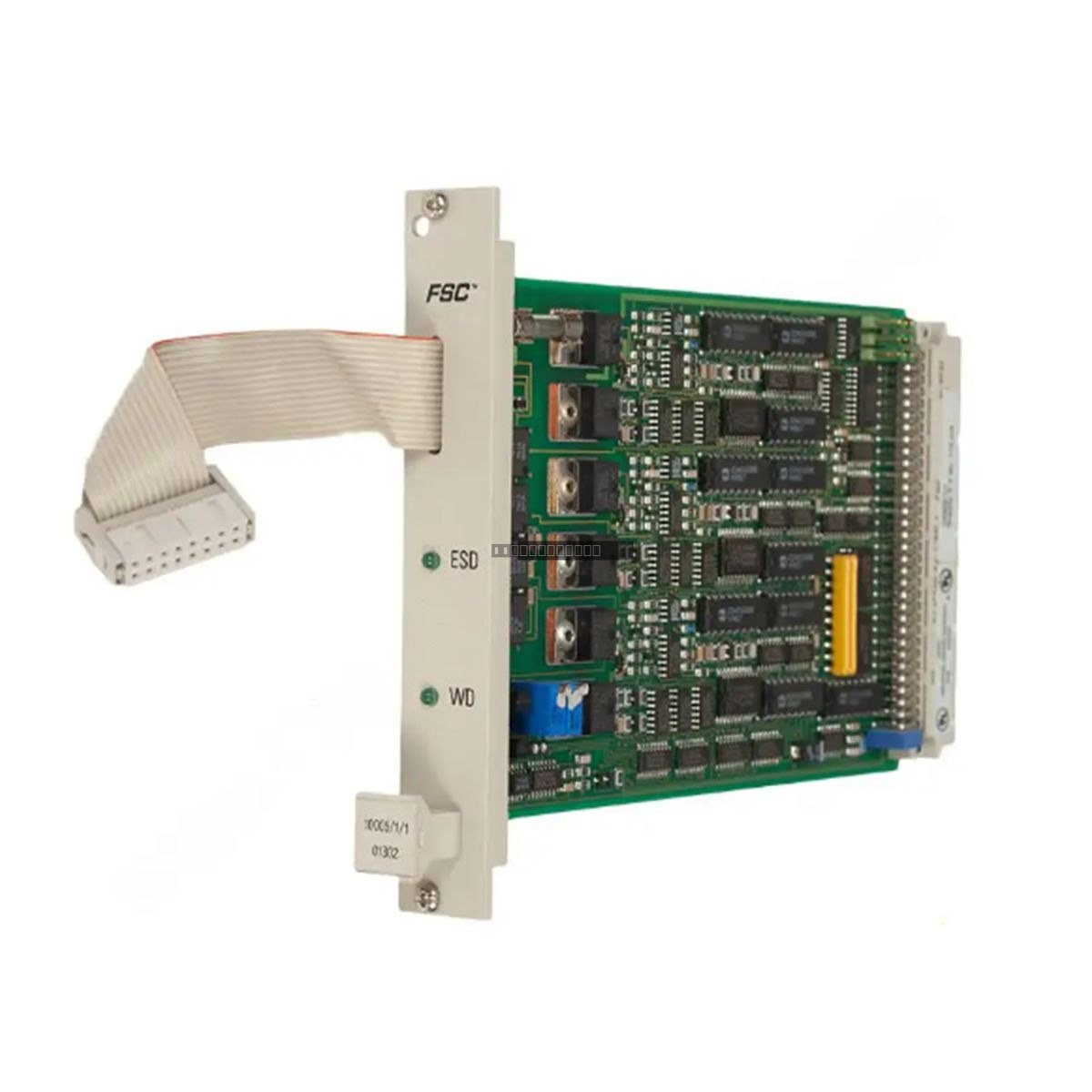

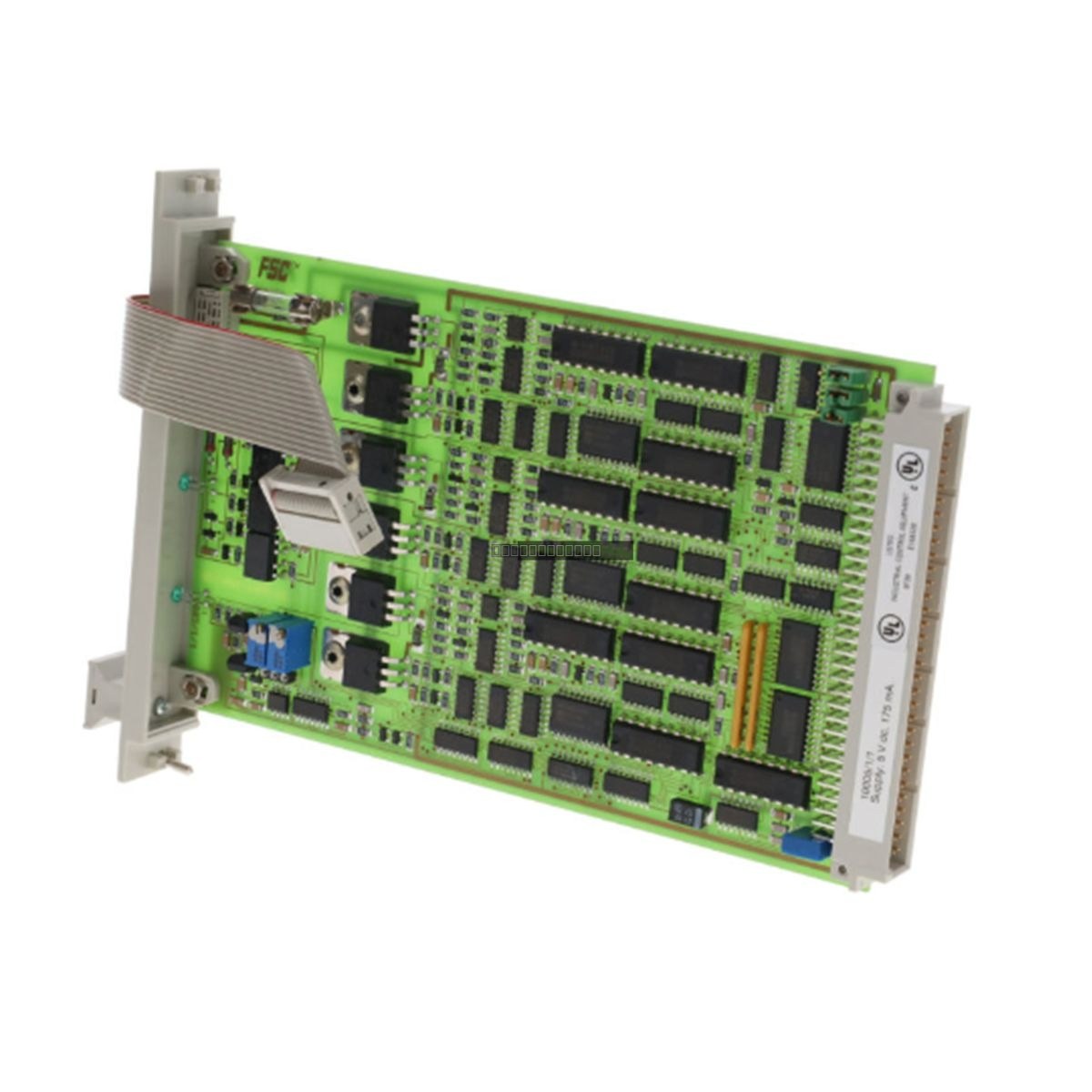

Honeywell 10005/1/1 FSC Watchdog Module

Disponibilidad: 7 Quedan en stock

DescriptionThe Honeywell 10005/1/1 is a dedicated Watchdog Module designed for integration within the Fault Tolerant Control (FSC) system architecture. This...

Código: 10005/1/1

Manufacturer: Honeywell
Product No.: 10005/1/1
Product Type: Safety System Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Honeywell 10005/1/1 is a dedicated Watchdog Module designed for integration within the Fault Tolerant Control (FSC) system architecture. This module serves as a critical safety component, monitoring system health and ensuring the integrity of control operations by providing watchdog functionality. It is engineered to maintain high availability and reliability in industrial automation environments.

Features

Designed specifically for Honeywell FSC safety systems.
Provides essential watchdog monitoring to detect system faults.
Compact 4 HP, 3U form factor for efficient rack density.
Robust design with verified power and input specifications for reliable operation.
Supports standard safety system power requirements.

Technical Specifications

Model Number	10005/1/1
Manufacturer	Honeywell
Power Supply	5 Vdc, 175 mA
Ripple Content	< 50 mV p-p
ESD1 Input	24 Vdc, 5 mA
ESD2 Input	5 Vdc, 10 mA
Reset Input	24 Vdc, 10 mA
Form Factor	4 HP, 3U
Approvals	CE, TUV, UL

Installation Guidelines

Ensure the system is powered down before inserting or removing the module from the rack to prevent electrical damage.
Verify that the rack slot is clean and free of debris to ensure proper connector seating.
Maintain proper grounding practices for the FSC rack assembly to minimize EMI and ensure signal integrity.
Observe the ripple content limits to prevent interference with the watchdog monitoring logic.
Handle with standard ESD precautions; use a grounded wrist strap when handling internal electronic components.

FAQ

What is the primary function of the 10005/1/1 module?
This is a watchdog module used within Honeywell FSC systems to monitor system status and trigger safety responses if a fault is detected.

What are the physical dimensions of this module?
The module occupies 4 HP (horizontal pitch) and 3U (rack units) of space in a standard industrial enclosure.

Does this module require specific power inputs?
Yes, it operates on a 5 Vdc supply at 175 mA, with specific requirements for its ESD and reset inputs as detailed in the technical specifications.
