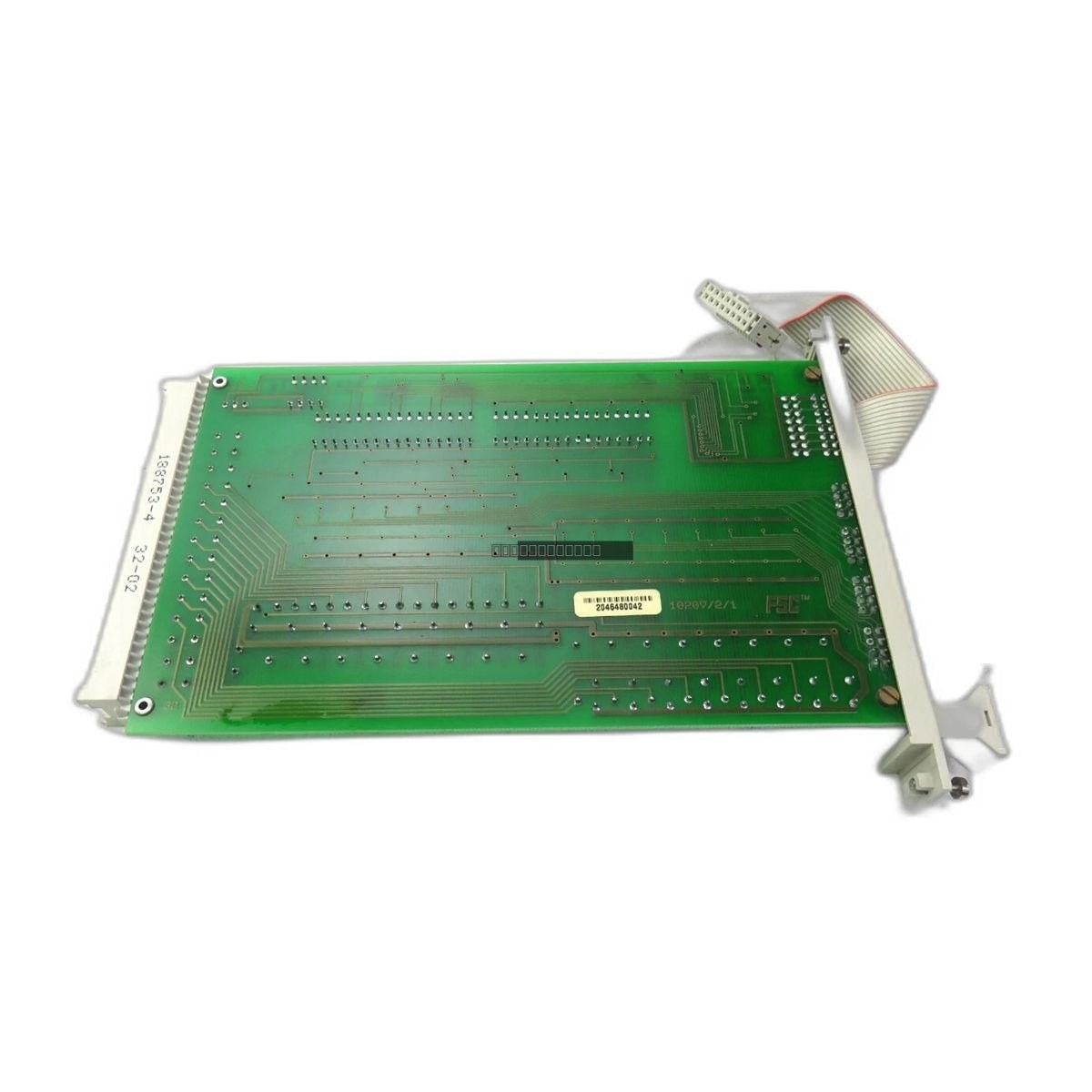

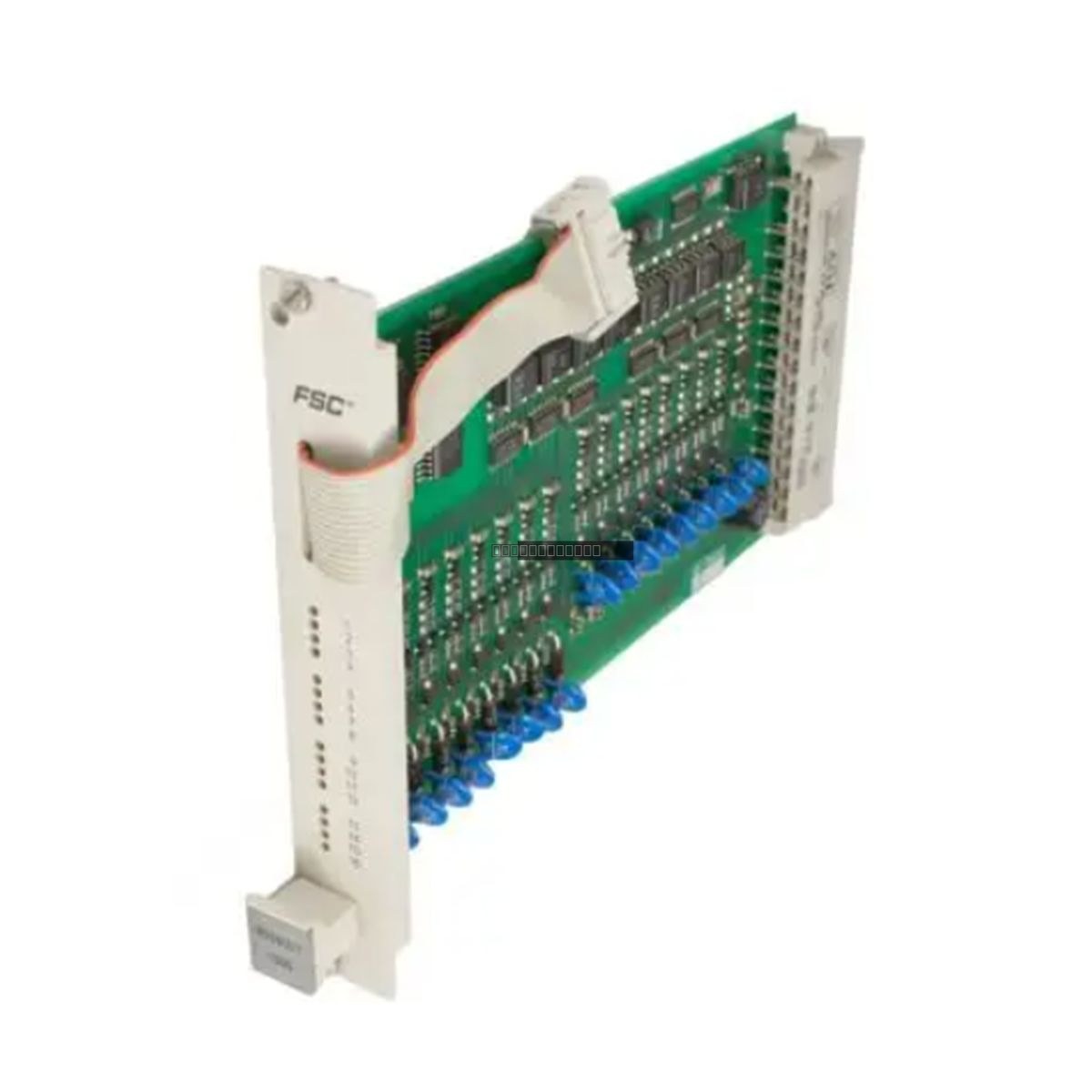

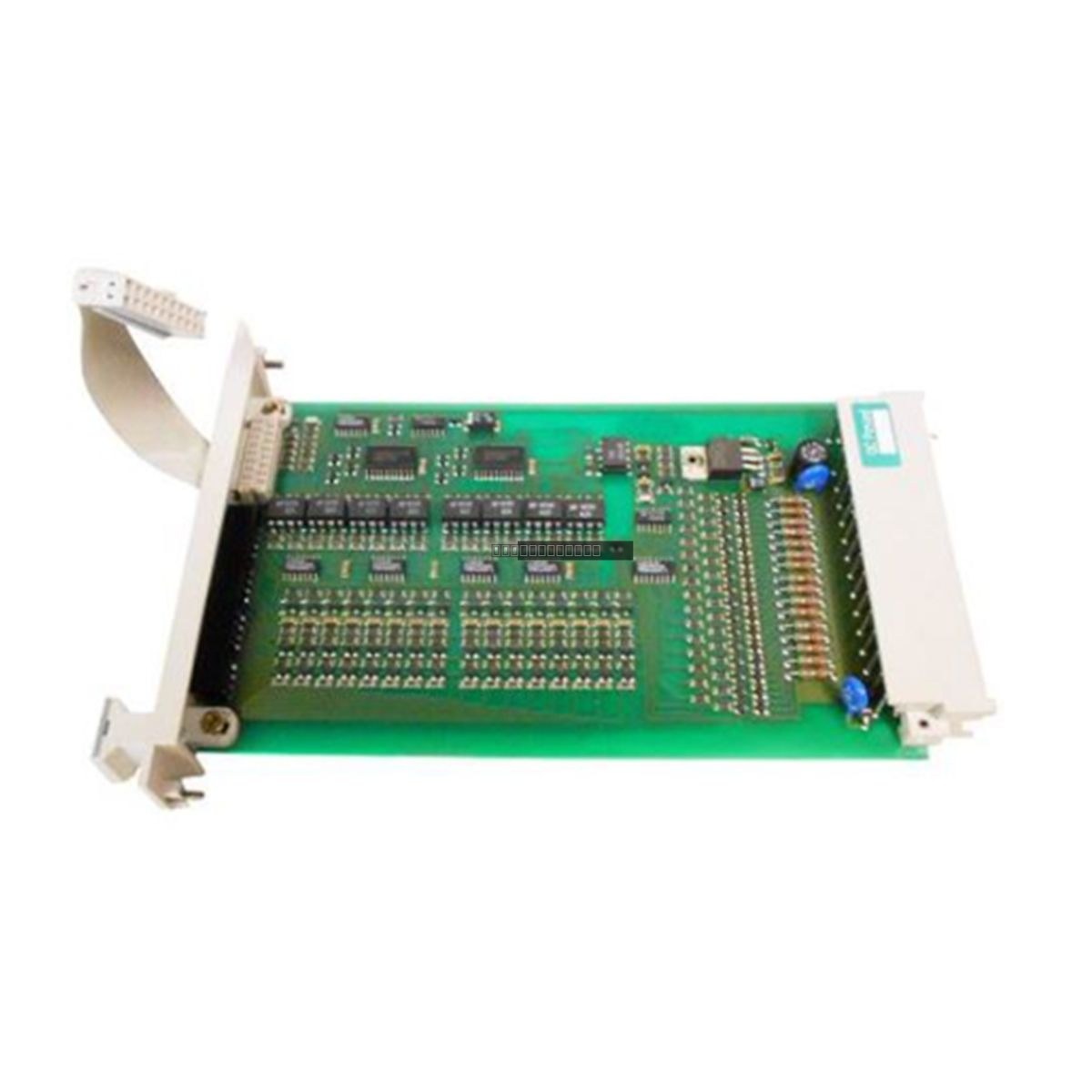

Honeywell 10209/2/1 16-Channel Digital Output Module

Disponibilidad: 3 Quedan en stock

The Honeywell 10209/2/1 is a high-reliability 16-channel digital output module designed for the Fail Safe Controller (FSC) system. This solid-state...

Código: 10209/2/1

Manufacturer: Honeywell
Product No.: 10209/2/1
Product Type: Digital Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 120g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Honeywell 10209/2/1 is a high-reliability 16-channel digital output module designed for the Fail Safe Controller (FSC) system. This solid-state module provides robust output control for industrial automation applications requiring precision and safety-rated performance.

Features

16 independent digital output channels
Solid-state source architecture
Short-circuit proof output design
Compatible with FSC system software versions 3.00 and higher
Compact 4 HP, 3U form factor

Technical Specifications

Model	10209/2/1
Output Channels	16
Output Type	24 Vdc Solid-state Source
Max Current per Channel	100 mA
Max Lamp Load	50 mA (1.2 W)
Max Load Capacitance	1 uF
Voltage Drop	< 1.2 Vdc at 100 mA
Off State Current	< 0.1 mA
Internal Power Requirements	5 Vdc, 35 mA

Installation Guidelines

Ensure the system power is completely disconnected before inserting or removing the module from the rack.
The module is designed for standard 3U rack mounting (4 HP width); ensure proper seating in the backplane connector.
Follow standard ESD (Electrostatic Discharge) precautions during handling to prevent damage to sensitive internal circuitry.
Verify that field wiring is routed away from high-EMI sources to maintain signal integrity.
Ensure all connected field devices do not exceed the specified 100 mA per channel current limit.

Compliance and Certifications

This module is designed for use in safety-critical environments and carries the following certifications: CE, TUV, and UL.

FAQ

What is the primary function of the 10209/2/1 module?
This module acts as a digital output interface for the Honeywell FSC system, allowing the controller to drive 24 Vdc field devices with safety-rated, short-circuit protected outputs.

Is this module compatible with older FSC software?
The 10209/2/1 is designed for systems utilizing software version 3.00 or higher.
