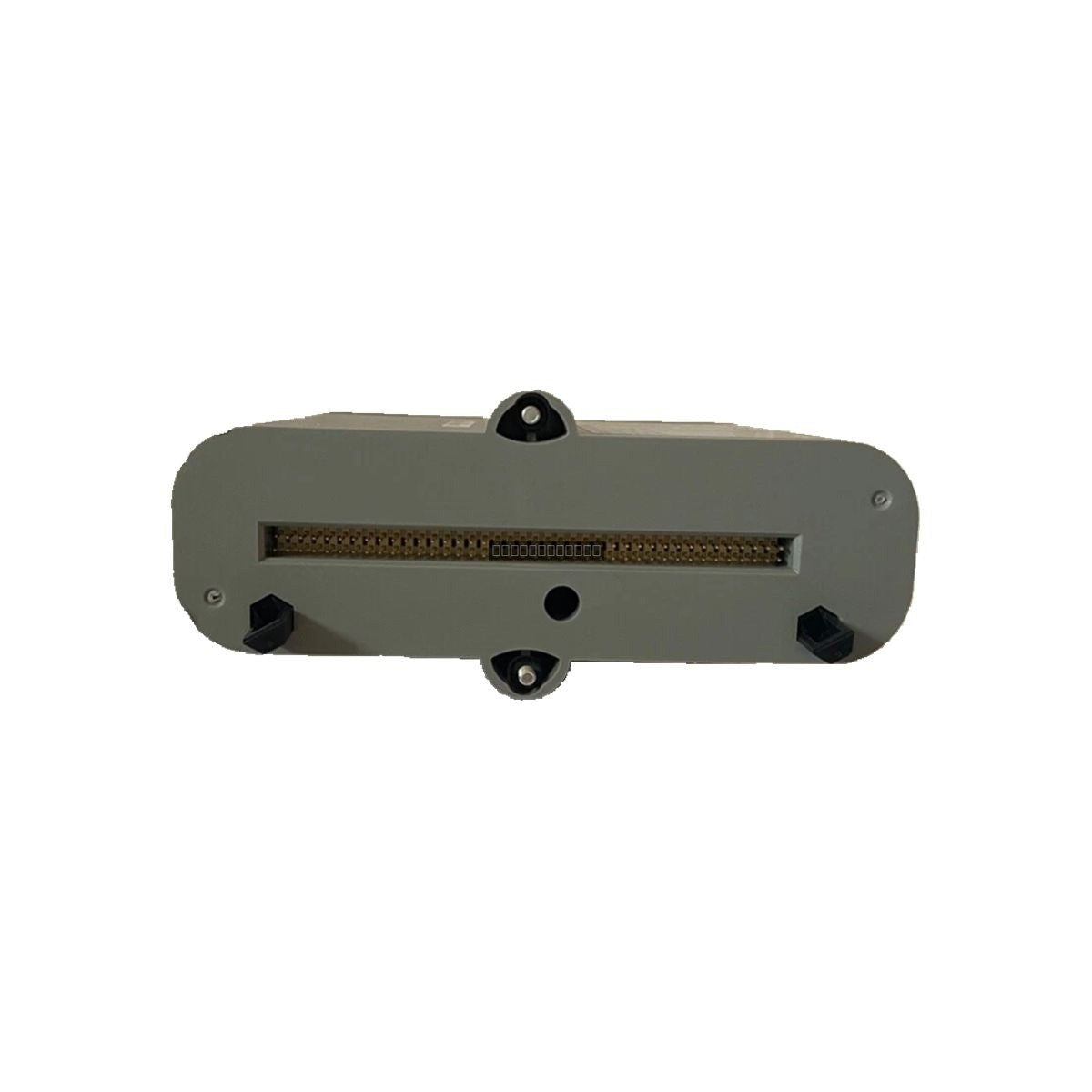

Honeywell 8U-PDISA1 32-Channel Digital Input SOE Module

Honeywell 8U-PDISA1 Digital Input Sequence of Events Module

Disponibilidad: 5 Quedan en stock

The Honeywell 8U-PDISA1 is a high-performance 32-channel digital input module engineered for Sequence of Events (SOE) recording within industrial control...

Código: 8U-PDISA1

Manufacturer: Honeywell
Product No.: 8U-PDISA1
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Honeywell 8U-PDISA1 is a high-performance 32-channel digital input module engineered for Sequence of Events (SOE) recording within industrial control architectures. This module is essential for applications requiring millisecond-level precision in event logging, facilitating rapid root-cause analysis and diagnostic tracking during process anomalies. By providing accurate timestamping for field signal transitions, the 8U-PDISA1 significantly enhances operational visibility in critical environments such as power generation and petrochemical refining.

Features

High-Speed SOE Capture: Provides 1 ms resolution for event timestamping, ensuring precise tracking of rapid signal state changes.
Dual Scanning Modes: Supports a 20 ms cycle for standard inputs and a 5 ms cycle for high-priority signal monitoring.
Robust Isolation: Features integrated optical isolation with a rating of 1000 VAC RMS or ±1000 VDC to protect control logic from field-side electrical disturbances.
Hot-Swappable Design: Engineered for removal and insertion under power, allowing for maintenance without interrupting the entire control system.
High Channel Density: Manages 32 discrete 24 VDC input channels within a single module footprint.

Applications

The 8U-PDISA1 is typically deployed in large-scale industrial automation systems where detailed event reconstruction is necessary. Common use cases include turbine control systems, emergency shutdown systems (ESD), and complex manufacturing processes where diagnostic logging is required to meet regulatory and safety standards.

Technical Specifications

Model	8U-PDISA1
Input Channels	32 Discrete Inputs
Input Voltage	24 VDC Nominal (18 to 30 VDC range)
SOE Resolution	1 ms
Scan Time	20 ms (Normal) / 5 ms (Fast)
Isolation	1000 VAC RMS / ±1000 VDC
Current Rating	95 mA
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C

Installation Guidelines

Ensure the module is installed in a clean, dry environment within the specified operating temperature range of 0 to 60 deg C.
Verify that the field wiring is properly shielded and routed away from high-voltage cables to mitigate electromagnetic interference (EMI).
When performing a hot-swap, ensure the module is fully seated and the locking mechanism is engaged to maintain a reliable connection to the backplane.
Use appropriate ESD precautions when handling the module to prevent damage to internal electronic components.
Always verify input voltage polarity before connecting field signals to the terminal blocks.

FAQ

Q: Can the 8U-PDISA1 be replaced while the system is running?
A: Yes, this module supports hot-swapping, which allows for removal and insertion under power, minimizing downtime in continuous process applications.

Q: What is the primary purpose of the SOE functionality?
A: The Sequence of Events (SOE) capability provides 1 ms resolution timestamping, which is critical for analyzing the exact order of operations during a trip or process disturbance.
