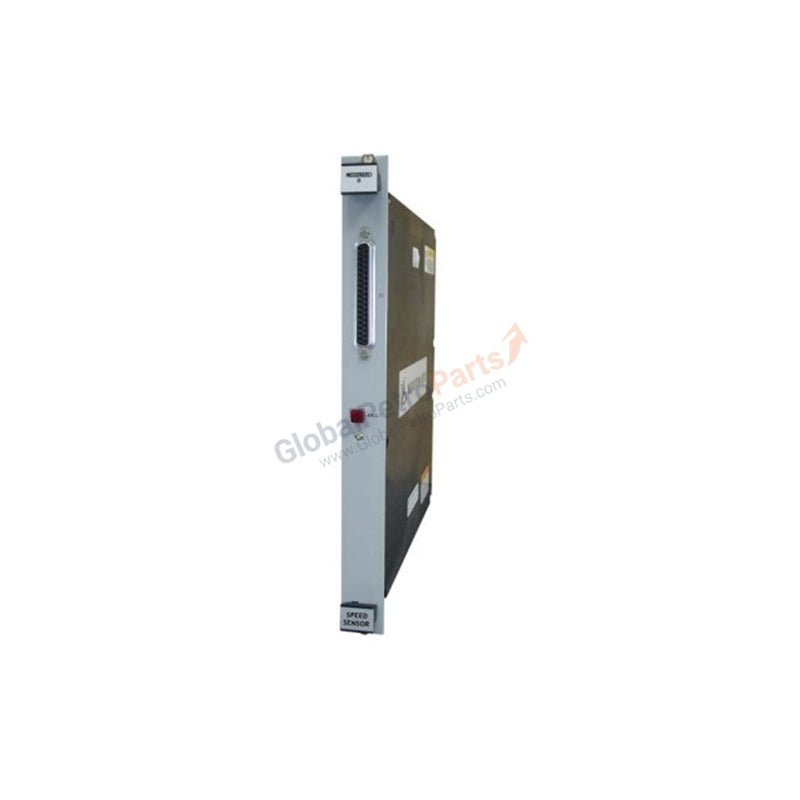

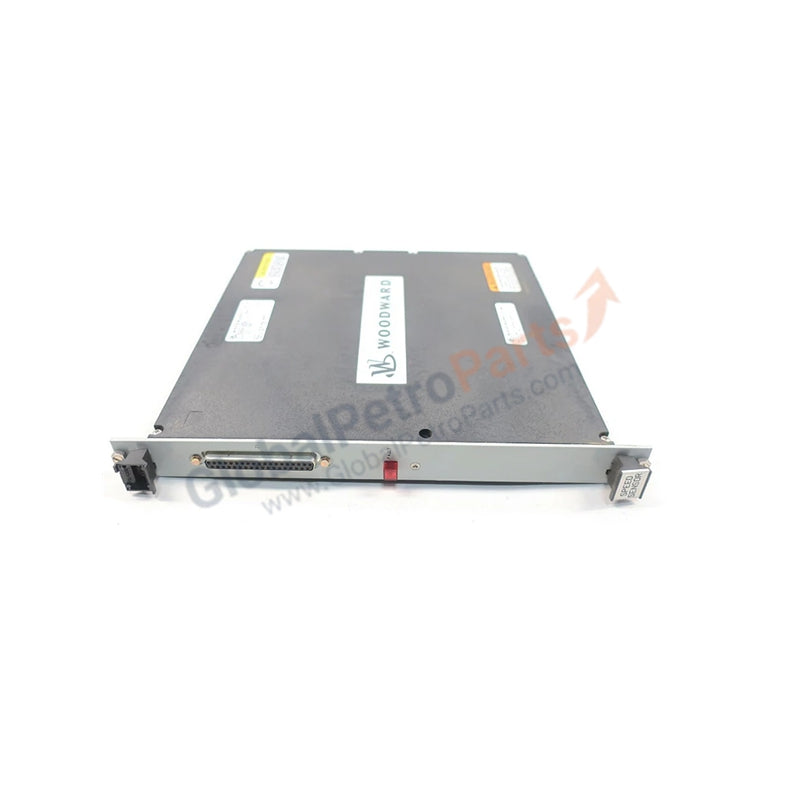

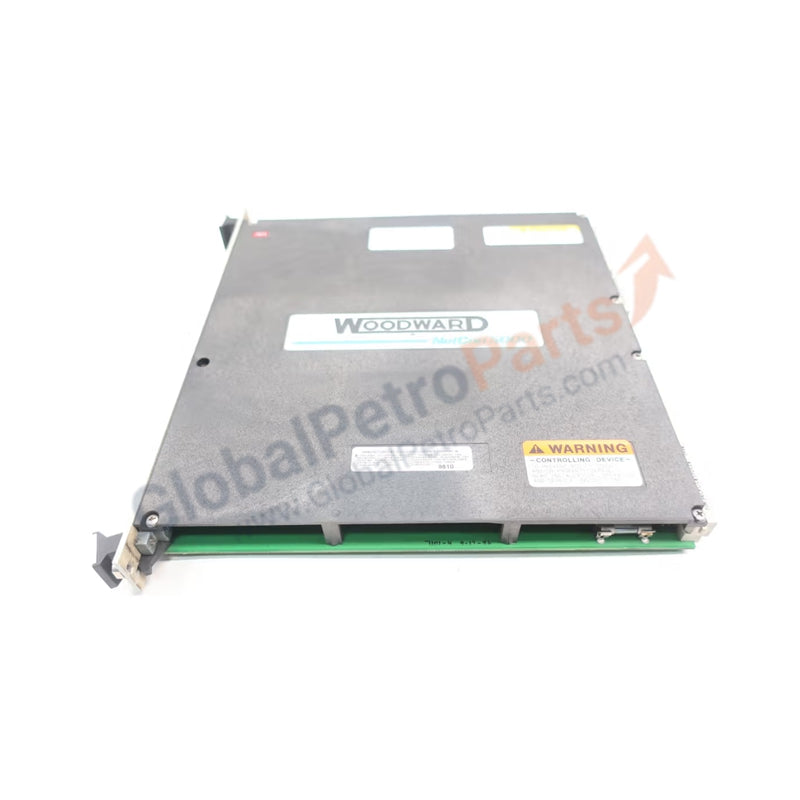

SIL 2 Overspeed Protection Module

SIL 2 Overspeed Protection Module | 5464-658 Woodward

Availability: 99 left in stock

Woodward 5464-658 MicroNet Plus Analog I/O and Overspeed Protection Module The 5464-658 (Part Number: 5464-658) is a high-integrity multi-channel interface...

SKU: 5464-658

Manufacturer: Woodward
Product No.: 5464-658
Product Type: Analog I/O Protection Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Woodward 5464-658 MicroNet Plus Analog I/O and Overspeed Protection Module

The 5464-658 (Part Number: 5464-658) is a high-integrity multi-channel interface module designed for the Woodward MicroNet™ Plus distributed control system. This module represents a critical fusion of high-density analog signal acquisition and autonomous safety logic. Beyond serving as a standard I/O interface, the 5464-658 (Model: 5464-658) features an independent, hardware-based overspeed protection circuit. This localized safety layer ensures that in the event of a main CPU failure or communication loss, the module can execute an emergency turbine shutdown within 20 milliseconds, providing a SIL 2 compliant safety net for high-value rotating assets.

Engineered for the rigorous demands of power generation and marine propulsion, the 5464-658 (Module: 5464-658) utilizes synchronous 10 kHz sampling to provide real-time data from vibration probes, RTDs, and thermocouples. This level of technical expertise (E-E-A-T) ensures that the MicroNet Plus system maintains a precise and reliable digital twin of the machinery's physical state. Its ruggedized, industrial-grade construction is specifically optimized to perform in EMI-rich environments where signal integrity is paramount for both control and machinery protection.

Detailed Technical Specifications

The 5464-658 (5464-658) combines high-resolution sensing with dedicated safety hardware.

Feature	Details
Manufacturer	Woodward
Model Number	5464-658
System Compatibility	MicroNet™ Plus Distributed Control System
Product Type	Analog I/O + Independent Overspeed Protection
Analog Inputs	16 Differential Channels (16-bit resolution)
Sampling Rate	10 kHz per channel (Synchronous acquisition)
Safety Compliance	SIL 2 Compliant Overspeed Circuit
Response Time	< 20 ms for overspeed trip execution
Supported Sensors	4–20 mA, RTD, Thermocouple, Vibration (Bently Nevada compatible)
Communication	Dual Redundant Ethernet; Modbus TCP, EtherNet/IP
Output Type	Configurable Analog Control Outputs for Actuators
Operating Temp	–20°C to +60°C (Extended range up to +70°C storage)
Isolation	Channel-to-channel and channel-to-logic isolation
