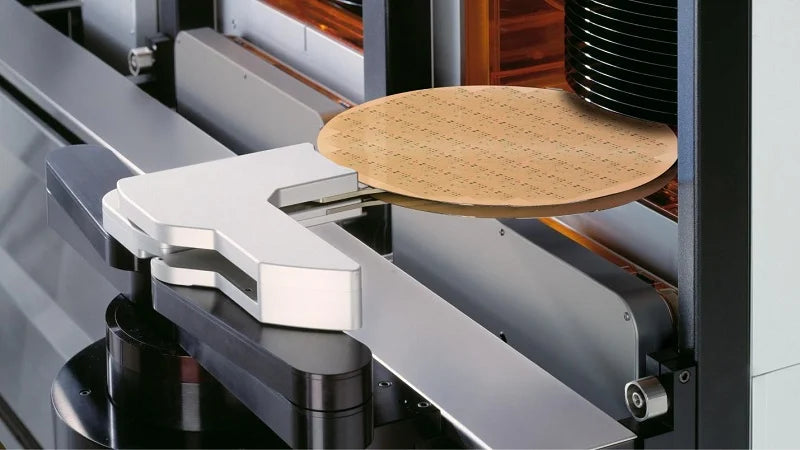

Strategic Approaches to Maximizing Uptime in Wafer Handling Robotics

In the high-stakes world of semiconductor manufacturing, industrial automation serves as the heartbeat of the production floor. Wafer handling robots navigate intricate paths between process tools and load ports with extreme precision. However, even a minor mechanical hiccup can halt an entire production line. Maintaining high uptime is not merely a goal; it is a necessity for protecting wafer yield and ensuring predictable throughput. This guide explores how to identify root causes of failures and implement robust maintenance strategies.

The Critical Impact of Robot Reliability on Fab Economics

A single wafer handling robot transfers thousands of fragile silicon units every day. When these systems fail, the fallout extends far beyond a simple mechanical pause. As a result, fabs face significant slumps in production, surging maintenance costs, and disrupted manufacturing schedules. In advanced nodes where margins for error are razor-thin, stable factory automation is the only way to maintain a competitive edge. Reliability ensures that the movement of wafers across modules remains fluid and synchronized.

Identifying Root Causes: Mechanical Fatigue and Wear

Precision components like bearings, belts, and linear guides degrade through constant 24/7 movement. Mechanical wear often manifests as irregular arm movements or increased vibrations during a transfer. These subtle shifts eventually trigger positioning errors that stop the tool. Therefore, technicians must prioritize the physical integrity of the robot’s joints. Early detection of a fraying drive belt or a loose motor coupling can prevent an expensive catastrophic failure.

Solving Sensor Misalignment and Detection Failures

Wafer handling robots rely on an array of sensors to map slots and confirm pickups. However, sensor contamination or slight shifts in alignment frequently cause false detection signals. These errors halt operations and require immediate EFEM robot troubleshooting. Regular calibration of alignment cameras and cleaning of optical sensors ensures the robot "sees" the wafer accurately every time. This proactive step eliminates the nuisance alarms that commonly plague automated handling systems.

Optimizing Vacuum Systems and End Effector Performance

The end effector is the robot's only physical point of contact with the wafer. Consequently, the vacuum system must maintain consistent pressure to prevent dropped wafers. Common faults include clogged vacuum lines or worn-out suction pads. A weak grip often triggers an alarm during the high-speed pickup phase. By regularly inspecting tubing connectors and the surface condition of the end effector, engineers can maintain the firm grip required for high-throughput operations.

Resolving Software and System Communication Lag

In a modern control system environment, robots do not operate in isolation. They communicate constantly with equipment controllers and Manufacturing Execution Systems (MES). Software glitches or communication timeouts often mimic mechanical failures. Moreover, interruptions in data packets can lead to incomplete transfer commands. Technicians should analyze error logs to determine if a fault is truly mechanical or if the PLC failed to handshake with the robot controller.

Implementing Proactive Maintenance for Long-Term Uptime

Transitioning from reactive repairs to a structured preventive maintenance routine is the most effective way to improve wafer handling system reliability. A well-documented schedule keeps the hardware in peak condition.

Expert Insight: The Human Factor in Robotic Reliability

In my experience, the difference between a fab with 95% uptime and one with 99% uptime is often the standard of technician training. Standardizing troubleshooting protocols prevents the "trial-and-error" approach that leads to secondary damage. Furthermore, as the industry moves toward Industry 4.0, integrating predictive data analysis—tracking Mean Time Between Failures (MTBF)—allows teams to intervene before a failure occurs. I believe that leveraging performance metrics is no longer optional; it is the future of sustainable automation.

Application Scenarios and Solutions

• Scenario A: High Vibration in Robot Arm. Solution: Inspect and replace drive belts and check motor coupling tension to restore smooth motion.

• Scenario B: Frequent "Wafer Not Found" Alarms. Solution: Clean the optical mapping sensor and perform a recalibration of the robot's Z-axis home position.

• Scenario C: Communication Alarms with Tool Controller. Solution: Verify the integrity of the Ethernet/Serial cables and check for electromagnetic interference (EMI) near the signal lines.
