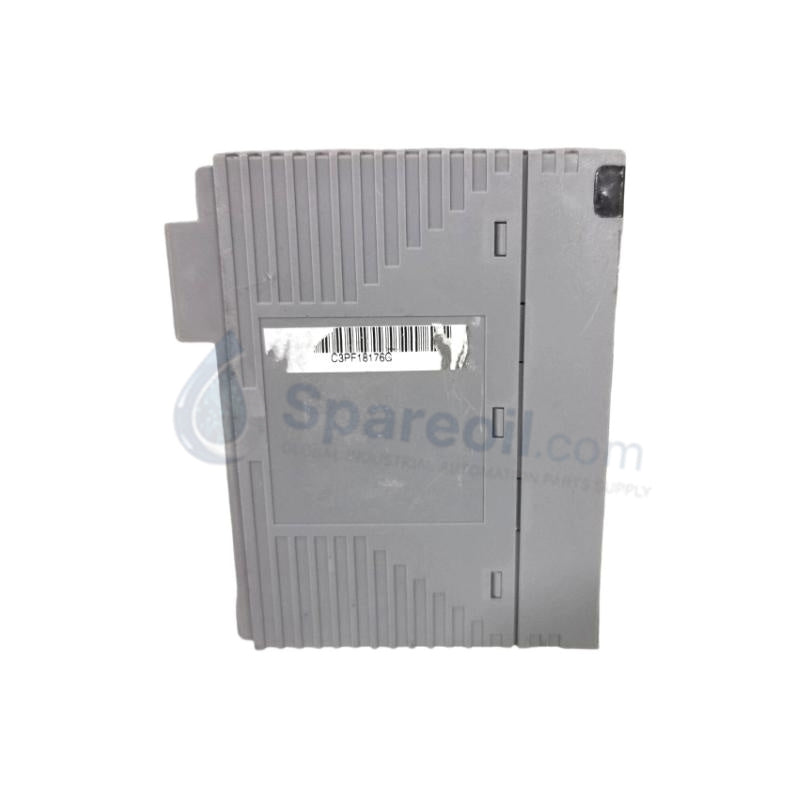

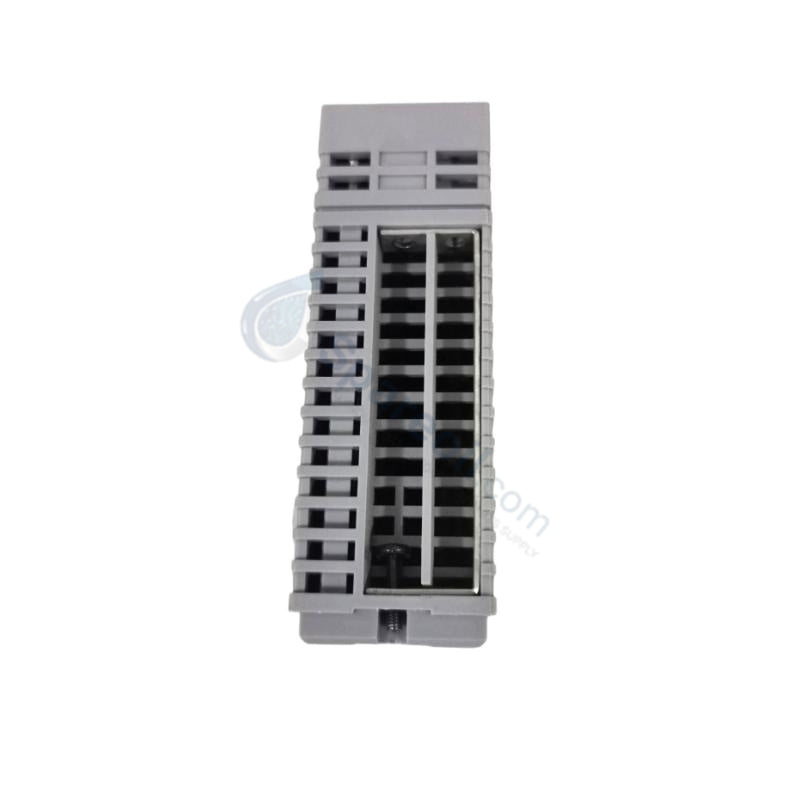

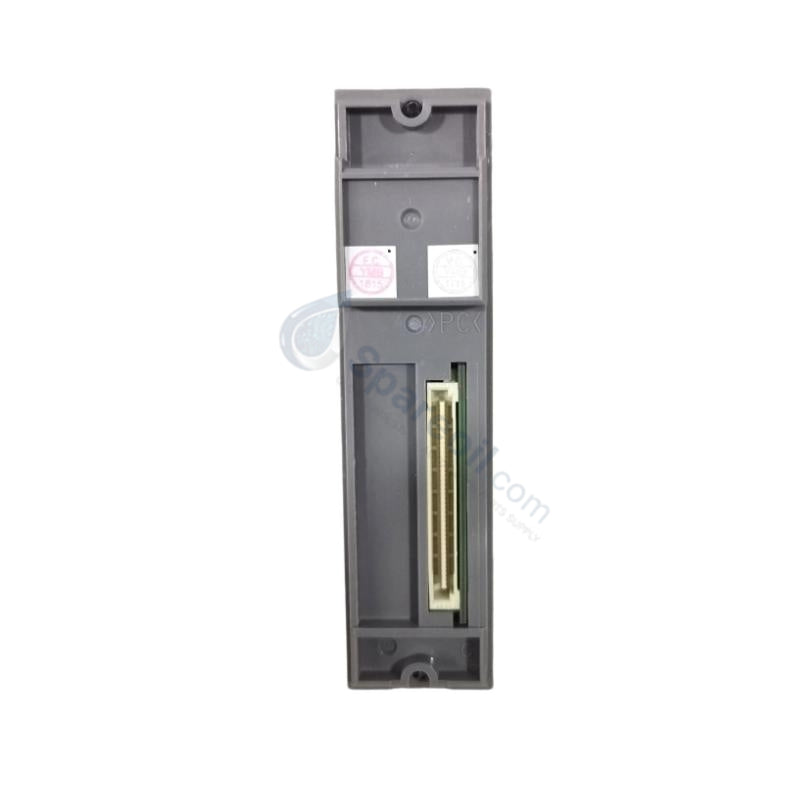

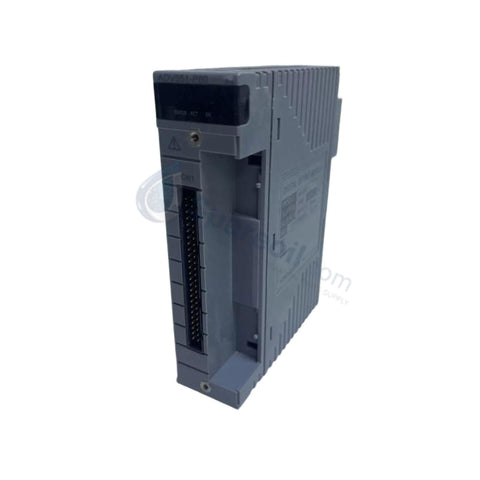

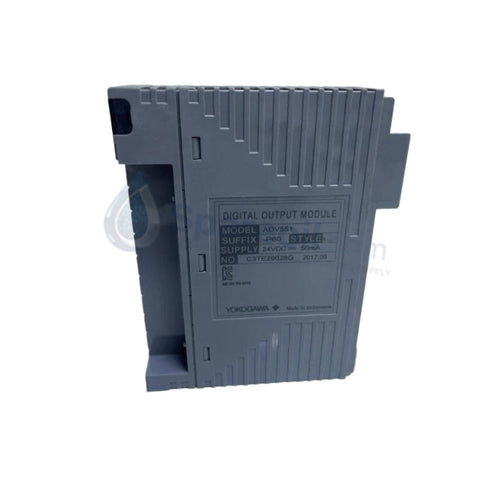

ADV551-P63 Yokogawa Digital Output Module

32-Channel 24 VDC Isolated Output Card | Yokogawa ADV551-P63

32-Channel 24 VDC Isolated Output Card | Yokogawa ADV551-P63

Disponibilidad: 99 Quedan en stock

Yokogawa ADV551-P63/D5A00 CENTUM VP Module Configured for high-density physical signal execution in distributed control networks, the Yokogawa ADV551-P63/D5A00 (ADV551 Digital...

Código: ADV551-P63

Manufacturer: Yokogawa
Product No.: ADV551-P63
Product Type: Digital Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Yokogawa ADV551-P63/D5A00 CENTUM VP Module

Configured for high-density physical signal execution in distributed control networks, the Yokogawa ADV551-P63/D5A00 (ADV551 Digital Output Module) provides direct physical/electrical execution. The hardware transmits distinct command signals from the system backplane to field components, driving physical loops by manipulating inductive and resistive loads directly via current sink configurations.

Suffix Breakdown & Model Matrix

Base Model (ADV551): Specifies a 32-channel isolated digital output module operating at a rated applied voltage of 24 VDC.
P Suffix: Identifies the incorporation of internal pulse width output and time-proportional output function blocks.
6 Suffix: Denotes the physical module housing configuration equipped with hardware status display LEDs and no explosion protection circuitry.
3 Suffix: Confirms compliance with the ISA Standard G3 environmental corrosion specification alongside an extended temperature rating (-20 to 70 deg C).
D5A00 Option: Indicates the pre-installed factory integration kit containing the KS Cable Interface Adapter tailored for 32-channel digital routing via the ATD5A-00 model interface.

Hardware Specifications

Parameter	Specification
Model	ADV551-P63/D5A00
Brand	Yokogawa Electric Corporation
Origin	Japan
Weight	0.2 kg (Shipping weight: 1.5 kg to 2 kg)
Dimensions	Compact modular unit matching CENTUM VP slot profiles
Operating Temp	-20 to +70 deg C
Power Consumption	700 mA at 5 VDC (less than 6 W typical)
Output Channels	32 channels, arranged in groups of 16
Rated Applied Voltage	24 VDC nominal (operational range: 20.4 to 26.4 VDC)
Output Format	Current sink topology
Maximum Load Current	100 mA per channel at 26.4 V
Withstanding Voltage (Signal to System)	2 kV AC for 1 minute
Withstanding Voltage (Between Commons)	500 V AC for 1 minute (common minus side every 16 channels)
Pulse Width Output Range	8 ms to 7200 s
Response Time	less than or equal to 1 ms typical

Process Control & DCS Instrumentation

The Yokogawa ADV551-P63/D5A00 utilizes specialized channel-to-channel isolation hardware rated to withstand up to 2 kV AC between output signals and system logic, which eliminates loop interference in electrical fields. Field engineers route signals through the minus common rails configured every 16 channels, where 500 V AC separation keeps separate loops isolated. The processing unit executes hardware-driven pulse width transformations from 8 ms up to 7200 s, adjusting duty cycles at the local transistor level to maintain stable output metrics without loading central controllers.

Frequently Asked Questions

Q: How does the module react during an online component replacement under active rack power conditions?

A: The hardware supports hot-swap installation, meaning field personnel can extract the module from the active backplane without disrupting data propagation or dropping power on adjacent node slots.

Q: What physical indicator confirms an isolated channel failure or wiring problem on the field side?

A: The integrated faceplate status display uses dedicated channel LEDs driven by internal diagnostic logic to flag circuit conditions, letting technicians spot down loops without checking software consoles.

Q: Does the current sink output architecture provide internal short-circuit protection for individual channels?

A: The card incorporates electronic short-circuit protection limits per channel to prevent excessive load currents from damaging the internal transistor matrix during unexpected field faults.

Field Installation Guidelines

Earth Terminal Connection: Secure the reference line directly to the system rack grounding bar. Ensure the structural earth loop maintains a resistance of less than 1 Ohm to preserve the 2 kV AC isolation rating.
Interface Adapter Alignment: Mount the ATD5A-00 KS Cable Interface Adapter directly onto the module plug face, tightening all retention fasteners to ensure sound connections under industrial vibration conditions.
Load Limit Verification: Verify that the continuous electrical draw of connected valves or relays stays below the 100 mA per channel threshold at 26.4 VDC to avoid premature thermal stress.
Conduit Separation Routing: Route all 32 external field terminal lines inside separate grounded metal trays away from high-voltage AC motor lines to limit electromagnetic coupling.
