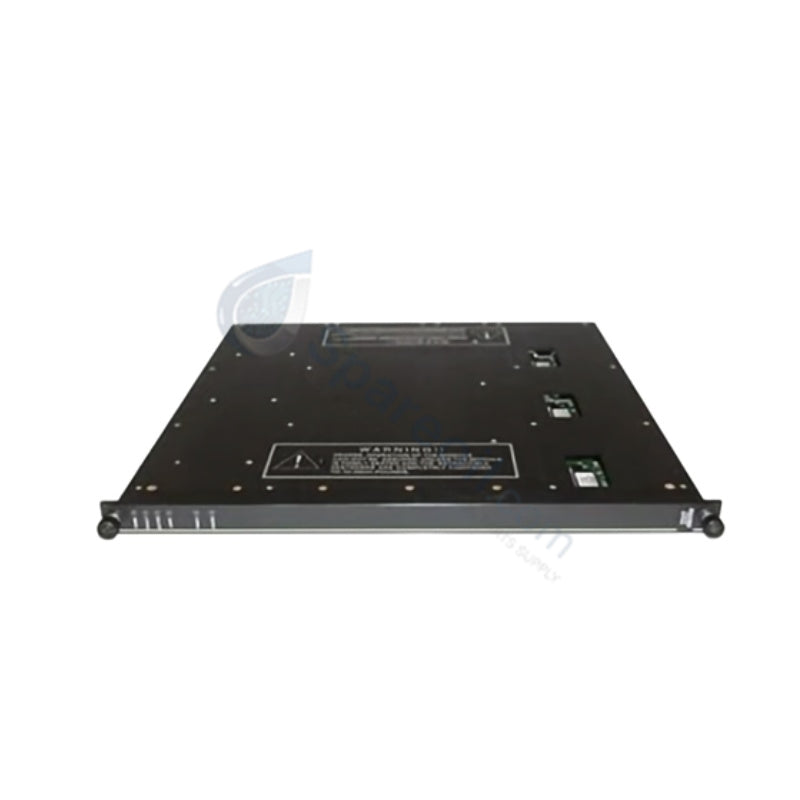

3601TN Triconex Digital Output Module

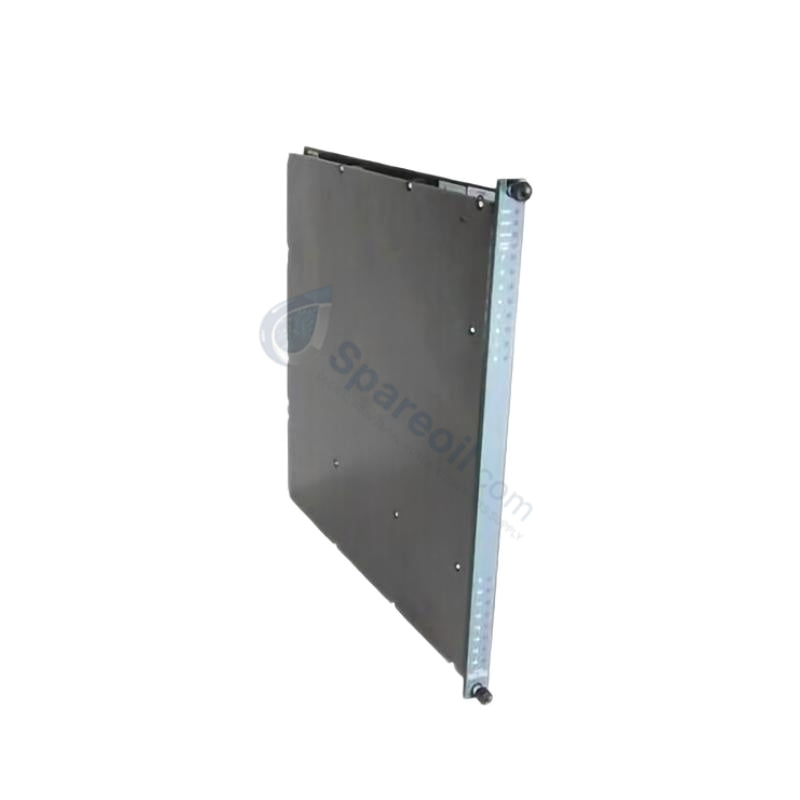

3601TN Triconex 8310N2 Digital Output Module

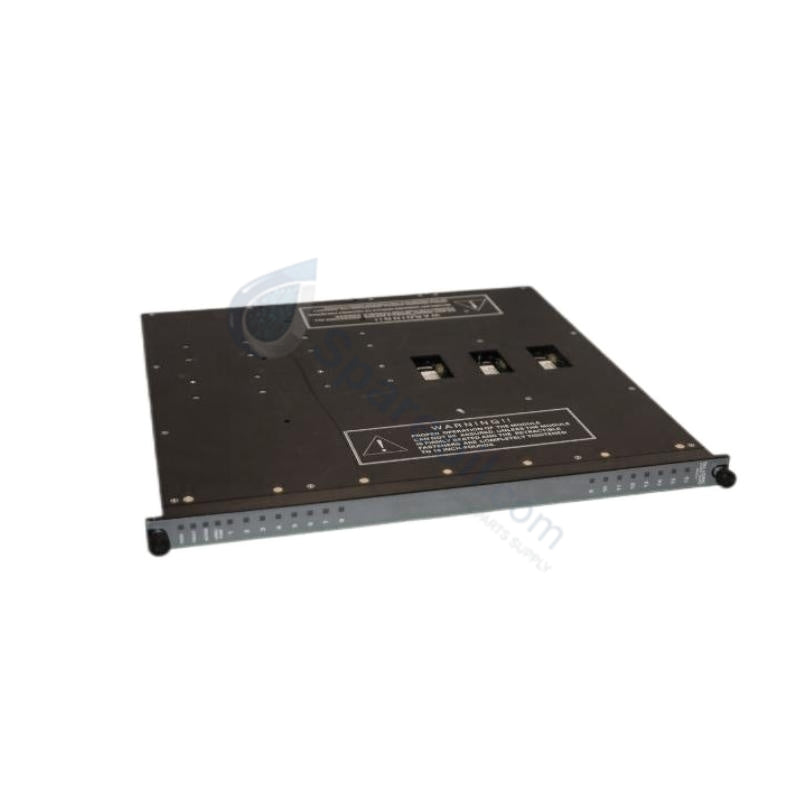

3601TN Triconex 8310N2 Digital Output Module

Disponibilidad: 10 Quedan en stock

Triconex 3601TN Digital Output Module The Triconex 3601TN, also cataloged as the 3601TN Digital Output Module, operates as a dedicated...

Código: 3601TN

Manufacturer: Triconex
Product No.: 3601TN
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Triconex 3601TN Digital Output Module

The Triconex 3601TN, also cataloged as the 3601TN Digital Output Module, operates as a dedicated hardware component for safety-critical field execution within Tricon Communication and main processor networks. Configured to interface with 8 digital output channels alongside 16 digital input points, the hardware provides direct electrical execution via Form C (SPDT) solid-state relays. The module switches loads up to 10 A @ 250 VAC/DC within a response latency of less than or equal to 1 ms, executing real-time logic commands directed by the primary safety controllers.

Hardware Specifications

Parameter	Specification
Model	3601TN (8310N2)
Brand	Triconex
Origin	United States
Weight	0.5 - 0.8 kg
Dimensions	100 x 50 x 25 mm
Operating Temp	-40 to +70 deg C
Power Consumption	24 VDC nominal operating voltage
Output Channels	8 Digital Output Channels (Form C SPDT)
Input Channels	16 Digital Input Channels
Current Rating	5 A continuous per channel
Switching Latency	Less than or equal to 1 ms
Isolation Voltage	2500 V optical isolation between logic and field
Interface Ports	2 communication ports (RS-485 Modbus RTU/TCP)
Safety Certification	IEC 61508 SIL 3, ATEX, UL, CE

Triple Modular Redundancy (TMR) and Fail-Safe Execution

The hardware utilizes an internal triple modular redundancy (TMR) architecture to drive high availability and eliminate single-point failures across critical process paths. Integrated diagnostic subroutines yield up to 99.999% fault coverage, running continuous built-in self-tests (BIST) to detect open loops, short circuits, and out-of-bounds voltage variances within the field circuits. A 2500 V optical isolation barrier completely separates the backend processing logic from field-side transients, enforcing immediate fail-safe state execution under emergency shutdown (ESD) or burner management configurations.

Frequently Asked Questions

Q: What specific procedures regulate the online hot-swapping of the 3601TN module?

A: The slot layout permits full online hot-swapping while the safety system remains operational. Upon physical insertion into the active chassis, the module initializes internal self-diagnostics to verify firmware flash compatibility and matches voting registers before the internal TMR logic activates the output paths.

Q: How do the embedded communication ports interface with external engineering nodes?

A: The module provides 2 dedicated communication ports configured for RS-485 Modbus RTU and TCP protocols. These interfaces stream hardware diagnostic status variables and channel switching records to the host main processor without lagging the core logic solver loops.

Q: What parameters define the load limits of the solid-state relay matrix?

A: Each individual channel supports a continuous current rating of 5 A, with absolute peak relay contact limitations bounded at 10 A @ 250 VAC/DC. The solid-state layout ensures zero mechanical degradation over millions of operational cycling runs.

Field Installation Guidelines

Align the module with the appropriate backplane slot orientation and insert the hardware until the rear pins seat completely into the internal communications bus.
Connect the 24 VDC nominal field loop wiring to the designated field terminal block, verifying the continuous current load stays below 5 A per channel path.
Establish dedicated routing paths for the field output wires, keeping them physically separated from low-voltage analog sensor cables to eliminate electrical noise induction.
Secure all instrument cable shield drains directly to the low-impedance copper safety ground bar located within the main system enclosure.
Check that ventilation gaps around the chassis remain clear to prevent heat buildup, ensuring the ambient envelope does not exceed 70 deg C.
