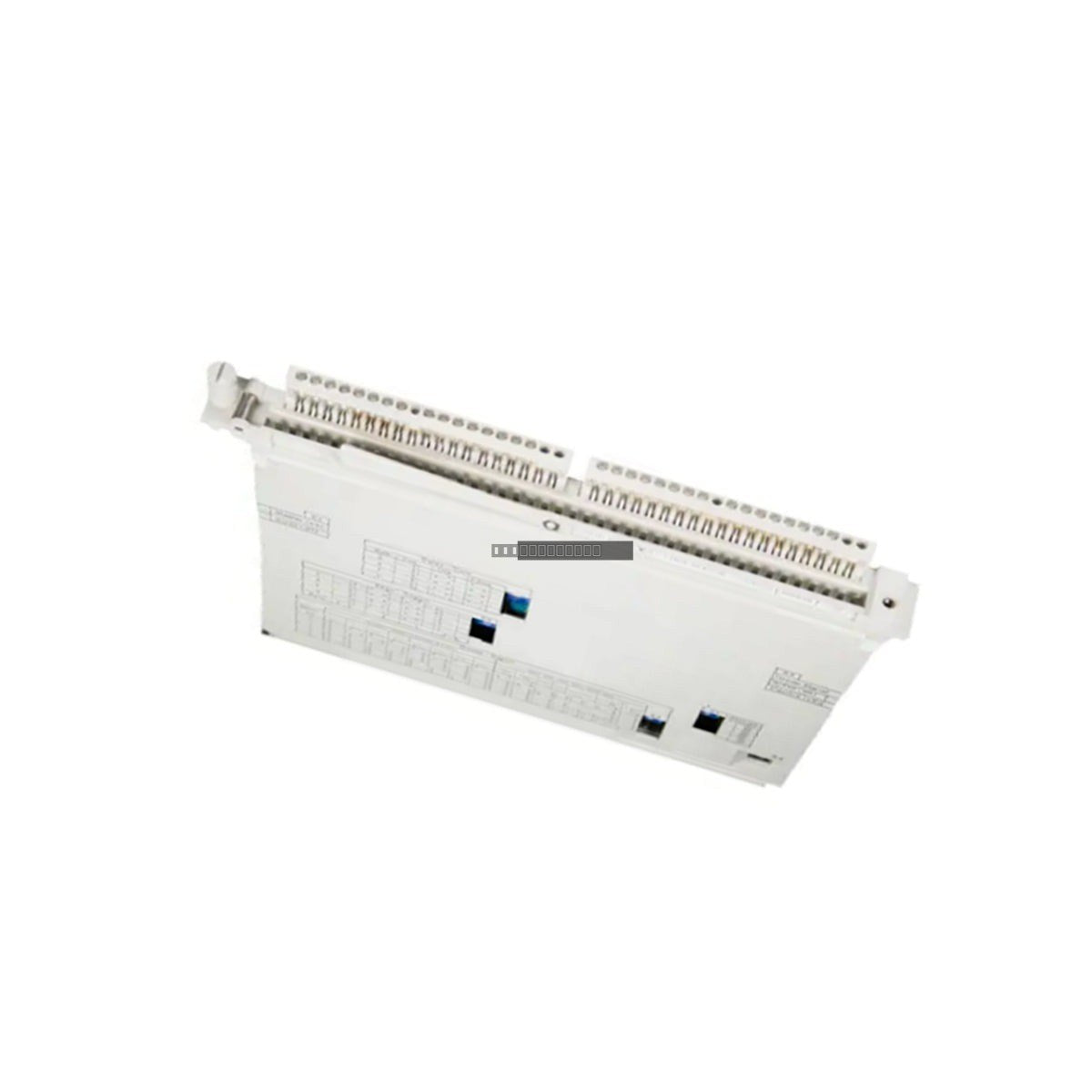

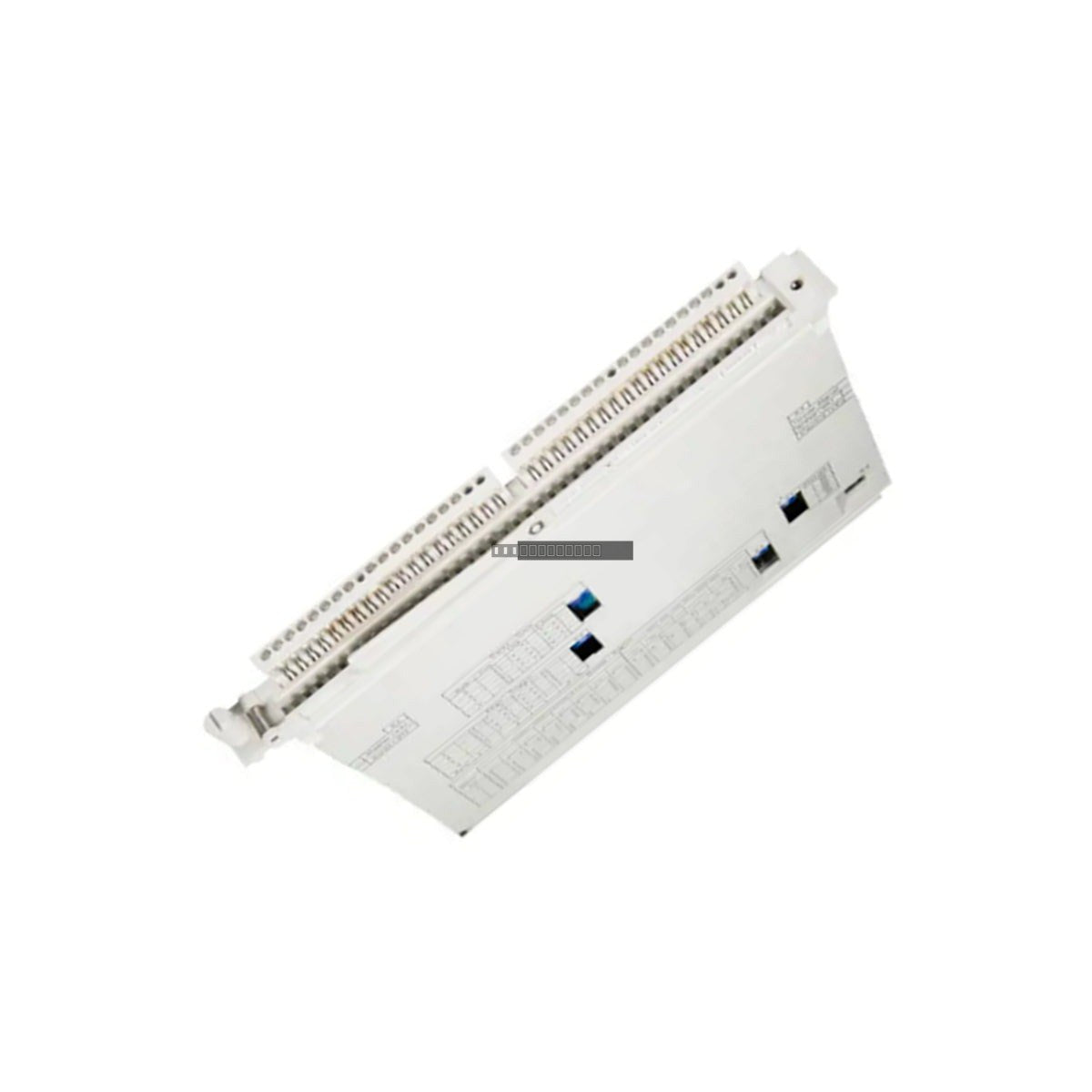

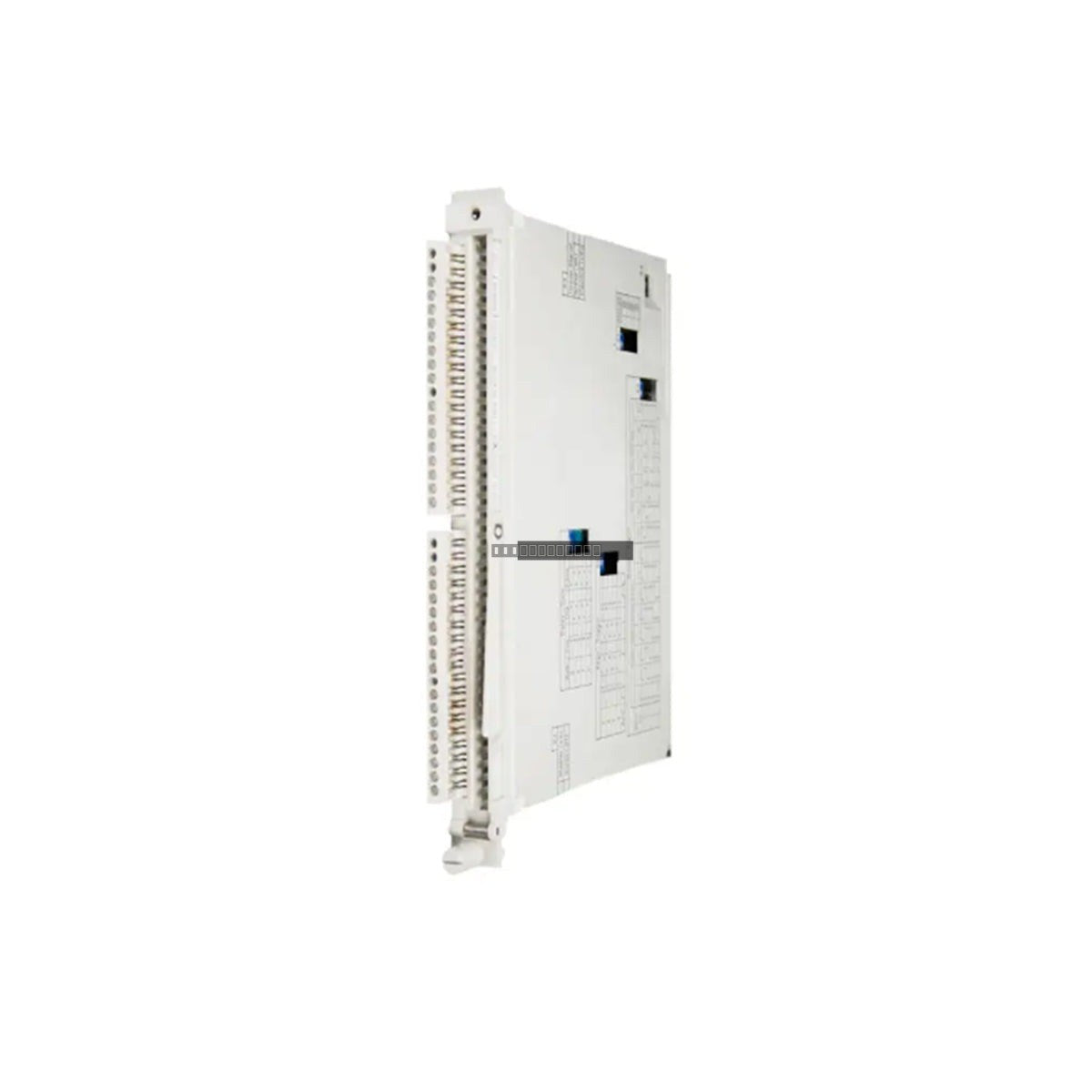

Siemens 6ES5432-4UA11 Simatic S5 Digital Input Module

Siemens 6ES5432-4UA11 Simatic S5 Digital Input Module

Disponibilidad: 9 Quedan en stock

DescriptionThe Siemens 6ES5432-4UA11 is a robust digital input module designed for integration within the Simatic S5 PLC product family. This...

Código: 6ES5432-4UA11

Manufacturer: Siemens
Product No.: 6ES5432-4UA11
Product Type: Digital Input Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Siemens 6ES5432-4UA11 is a robust digital input module designed for integration within the Simatic S5 PLC product family. This module provides 32 galvanically isolated input channels, designed to process 24 VDC signals from field-level devices such as limit switches, sensors, and control pushbuttons. Engineered for demanding industrial environments, the module incorporates advanced noise suppression and optical isolation to protect the PLC backplane from transient electrical interference, ensuring consistent process control and system reliability.

Features

32-channel digital input density for high-capacity I/O requirements.
Galvanic isolation per channel group to mitigate ground loop risks.
Integrated group error monitoring for enhanced system diagnostics.
Active hardware filtering to stabilize input signals and eliminate contact bounce.
Optical isolation barrier between field wiring and control logic.

Applications

This module is widely utilized in legacy Simatic S5 automation systems across various sectors, including petrochemical refining, heavy manufacturing, and mining. It is ideal for monitoring large-scale sensor arrays where electrical isolation is critical for preventing cross-channel interference and protecting the central processing unit.

Technical Specifications

Model	6ES5432-4UA11
Brand	Siemens
Series	Simatic S5
Input Channels	32 (Floating)
Nominal Voltage	24 VDC
Signal Level 0	-30 VDC to 5 VDC
Signal Level 1	13 VDC to 33 VDC
Power Consumption	3.5 W
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 70 deg C

Installation Guidelines

Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
Verify correct wiring polarity for all 24 VDC field inputs.
Utilize shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
Ensure proper grounding of the Simatic S5 rack to maintain the integrity of the galvanic isolation.
Keep ventilation paths clear to maintain operating temperatures within the specified 0 to 60 deg C range.

FAQ

Is the 6ES5432-4UA11 compatible with all Simatic S5 racks?
This module is designed for the standard Simatic S5 backplane architecture. Please verify your specific CPU and rack configuration to ensure slot compatibility.

What is the purpose of the group error signal?
The group error signal provides an aggregate status of the input channels, allowing the CPU to quickly identify and respond to faults or wire breaks within the module's input groups.
