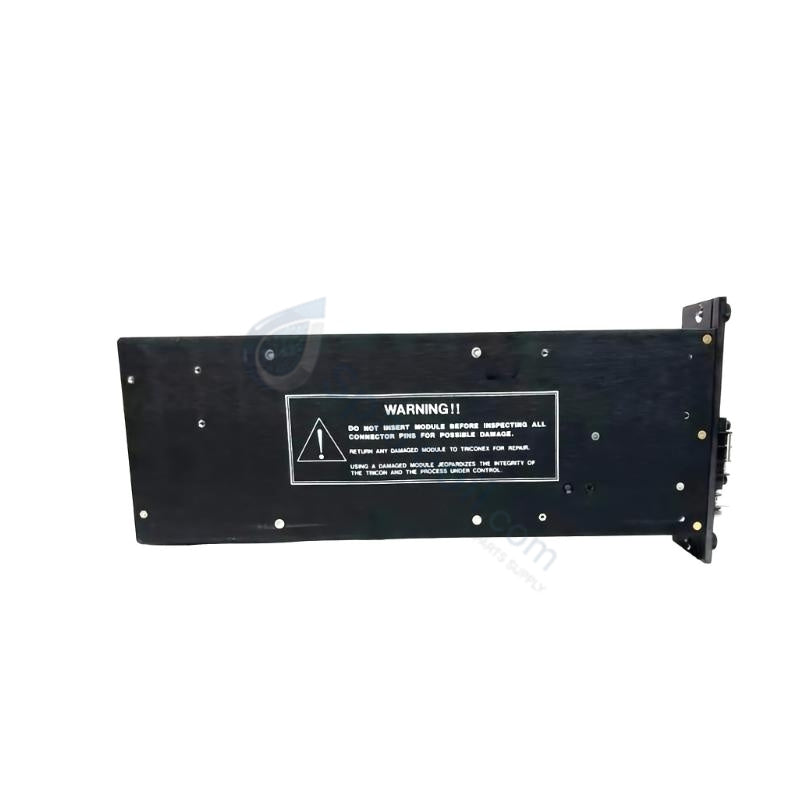

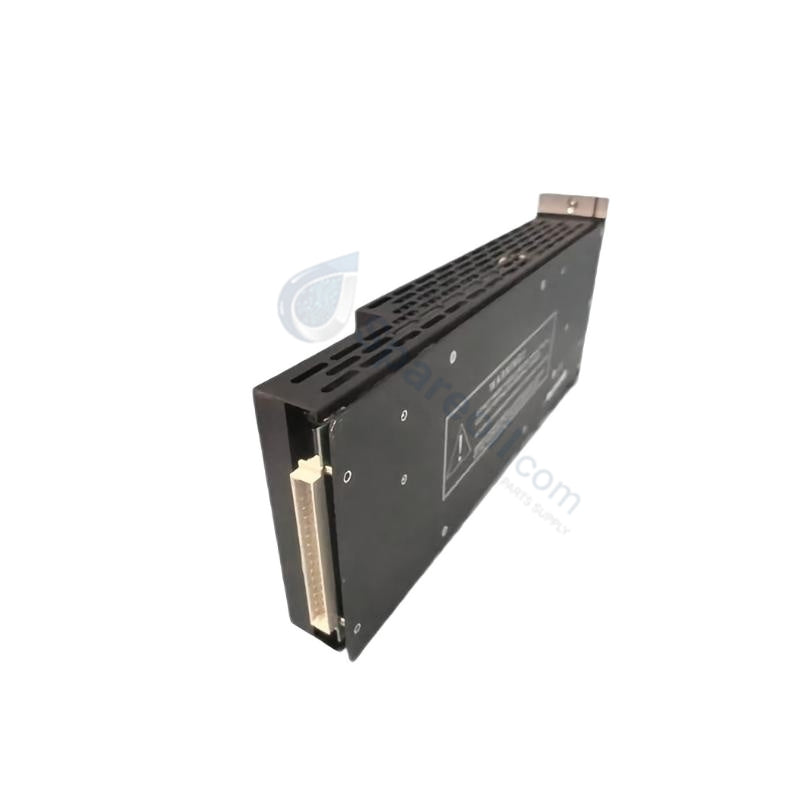

Triconex 8306A Analog Input Module

Configured for fault-tolerant discrete loop processing in industrial safety networks, the Triconex 8306A (8306A Analog Input Module) provides direct physical electrical execution. The hardware infrastructure coordinates the digitization of continuous variables from up to 32 isolated analog inputs, processing 4-20 mA current loops or 0-5 VDC voltage inputs generated by transmitters and sensors. Operating as the primary hardware interface within Tricon 3000 Series Safety Instrumented System (SIS) racks, the unit converts field signals using an internal 12-bit analog-to-digital matrix while running background logic leg cross-checks.

Hardware Specifications

Parameter Specification
Model 8306A
Brand Schneider Electric - Triconex
Origin United States
Weight 2.0 kg (Shipping weight) / 1.5 kg (Net module weight)
Dimensions 177.8 mm x 101.6 mm x 228.6 mm
Operating Temp -20 deg C to +60 deg C
Power Consumption 15 W typical
Input Channels 32 isolated analog inputs
Signal Type 4-20 mA current loop or 0-5 VDC voltage inputs
Resolution 12-bit A/D conversion
Accuracy +-0.1% of full scale
Architecture Triple Modular Redundancy (TMR) with 2-out-of-3 voter logic
Safety Integrity Level SIL3 capable (IEC 61508 / IEC 61511 compliance)
Isolation 1500 VAC galvanic isolation between channels and backplane
Certifications IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

High Reliability Safety Control (SIS) Technical Attributes

The module operates on a Triple Modular Redundancy (TMR) 2oo3 architecture, containing three independent execution pathways isolated physically and galvanically from each other. Each channel performs hardware-based 2-out-of-3 voting directly before signal output, mitigating single-point failures and assuring continuous operation even if an individual component pathway faults. Galvanic isolation limits are enforced at 1500 VAC between the system backplane and the field termination lines, protecting internal logic components from external electrical interference, field surges, and cross-channel faults. Fail-safe state execution routines are hardcoded into the internal circuitry; upon detection of an unrecoverable internal hardware deviation or communication failure, the affected outputs immediately drop to a de-energized, safe state. High-density scaling provides 32 independent output loops per slot, allowing full programmatic control through TriStation configurations without reducing redundant diagnostic capacity.

Frequently Asked Questions

Q: How does the internal 2oo3 voting logic respond if one of the three microcontrollers detects an out-of-bounds analog reading?

A: The internal architecture runs continuous inter-leg verification. If a single leg deviates from the other two during the 12-bit A/D conversion cycle, the voter logic overrides the aberrant reading using the matching values of the remaining two operational legs, triggering a diagnostic fault LED without disrupting process data execution.

Q: Can the channels be mixed between current loops and voltage signals on the same physical module?

A: Yes, the input range is configurable per channel. Technicians must select the appropriate signal profile within the system software and ensure that the external field wiring matches the corresponding termination baseplate layout.

Q: What is the maximum voltage breakdown threshold allowed across the galvanic isolation layer before data corruption occurs?

A: The module maintains full galvanic isolation up to 1500 VAC between the field input channels and the internal system backplane. Transients exceeding this specification risk puncturing the isolation barrier, leading to permanent hardware damage or signal anomalies.

Field Installation Guidelines

Field technicians must verify that all wiring complies with standard industrial instrumentation protocols. Field signals must use shielded twisted-pair copper conductors terminated securely into the designated Tricon termination baseplate. Maintain rigid physical separation between low-voltage DC analog lines and high-voltage AC distribution cabling to prevent electromagnetic coupling. Internal system grounding bars must connect directly to the plant safety earth with a low-impedance path, keeping shield drain wires un-spliced and grounded at a single designated terminal point. Ensure the module chassis slides smoothly along the guide rails of the Tricon rack until the backplane connectors seat completely. Fasten all mechanical retention screws to lock the assembly against vibration. Online hot-swap replacements require the operator to confirm that no active field faults exist on the associated loop prior to removing the faulty unit.
