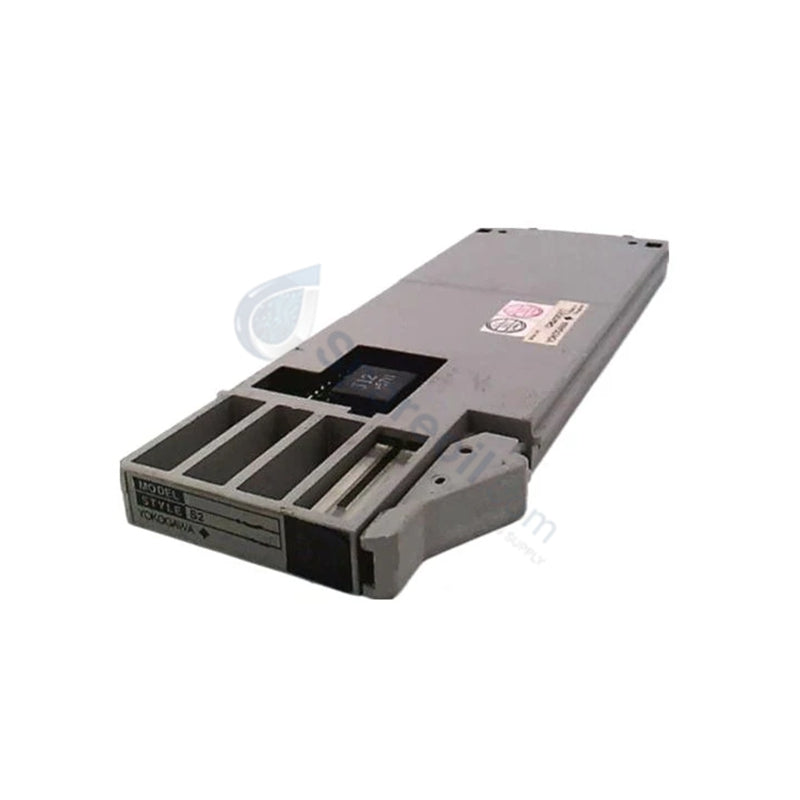

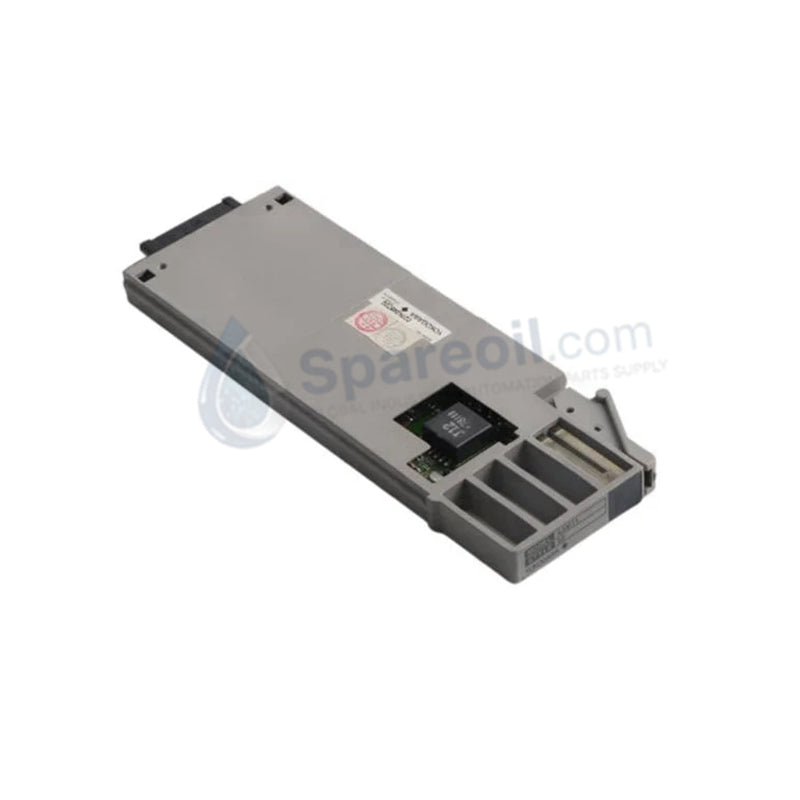

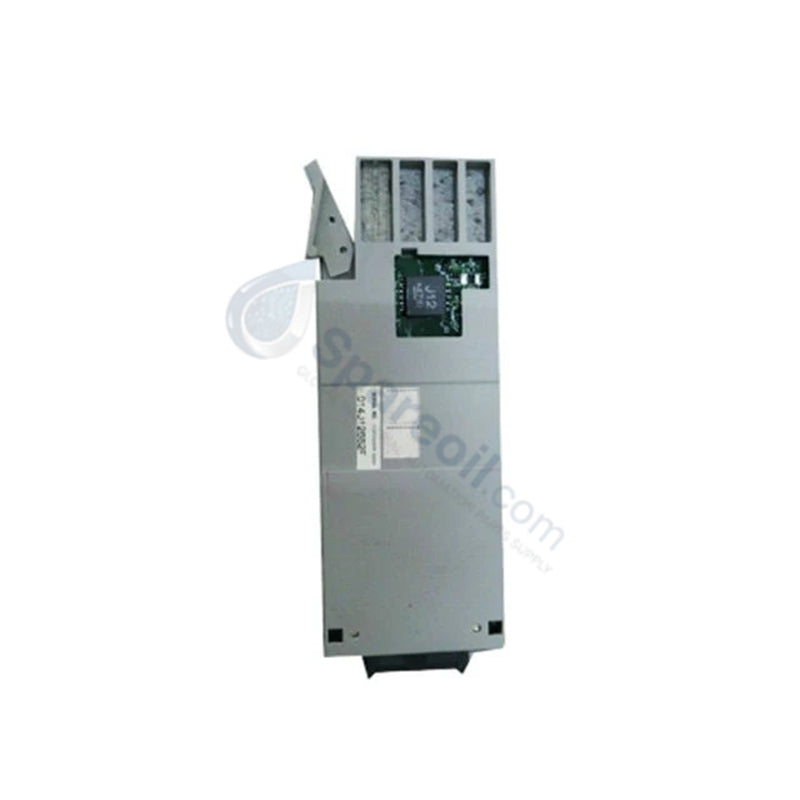

YOKOGAWA AAM10-S1 Analog Input Module

Configured for precision analog signal acquisition in CENTUM VP and CS3000 control architectures, the YOKOGAWA AAM10-S1 (AAM10-S1 Analog Input Module) provides direct physical and electrical execution of 8-channel current or voltage monitoring.

Hardware Specifications

Parameter Specification
Model AAM10-S1
Brand YOKOGAWA
Origin Japan
Weight 0.3 kg
Dimensions 43 mm x 130 mm x 147 mm
Operating Temp -20 deg C to 60 deg C
Power Consumption 5 W
Performance 8-channel 4-20 mA or +/- 10 V, 13-bit resolution

Process Control and DCS Connectivity

The AAM10-S1 functions as a high-integrity gateway between field-mounted transmitters and the control system, utilizing 4-20 mA HART loop protocol standards for data acquisition. To maintain measurement accuracy and system stability, the module incorporates robust channel-to-channel isolation, which mitigates common-mode noise and ground loops in dense instrumentation racks. Furthermore, the unit facilitates FOUNDATION Fieldbus and Profibus PA connectivity for integrated control topologies, ensuring deterministic data exchange. Integrated cold junction compensation (CJC) is available for thermocouple-based process loops, allowing for precise monitoring of temperature-critical variables across DCS and safety-monitored environments.

Frequently Asked Questions

Q: Does the AAM10-S1 support hot-swapping during active process operations?

A: The module supports hot-swapping; however, ensure that the corresponding input loop is placed in a non-critical state or that the system has transitioned to a redundant input processing mode before extraction to avoid signal errors or controller alarms.

Q: How should input signals be configured to prevent channel saturation?

A: Users must ensure that current signals are limited to the 4-20 mA range and voltage signals do not exceed the +/- 10 V threshold. Verify that cable shields are properly terminated at the source to prevent electromagnetic noise from causing input buffer clipping.

Field Installation Guidelines

Mount the AAM10-S1 module securely into the designated rack slot, ensuring the backplane connector is fully seated and the mechanical locking latch is engaged. Terminate all signal inputs to the front-access terminal blocks, strictly observing the correct polarity for current loops. Ensure that the cabinet chassis ground is verified to maintain low-impedance pathing for transient suppression. Upon installation, use the system engineering tool to map the input addresses and perform a channel-by-channel signal verification test against known field-device references to ensure measurement accuracy before the module is commissioned for active control duties.
