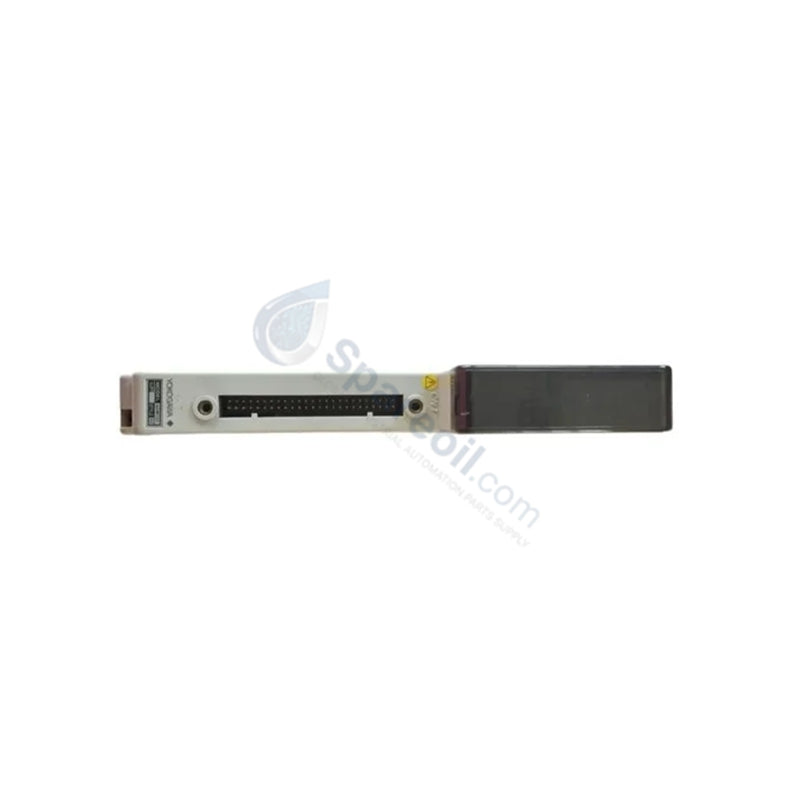

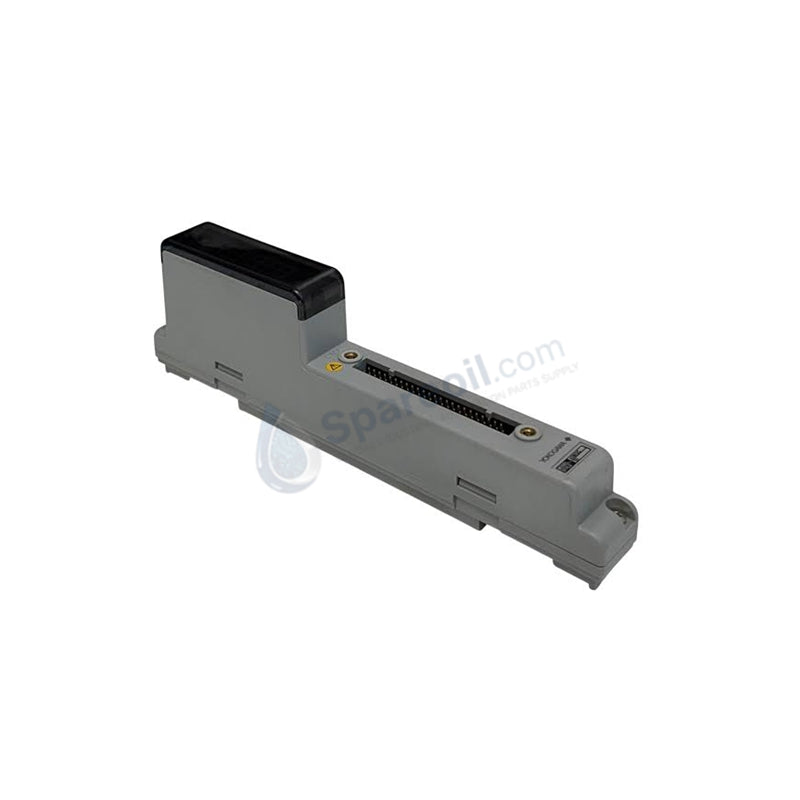

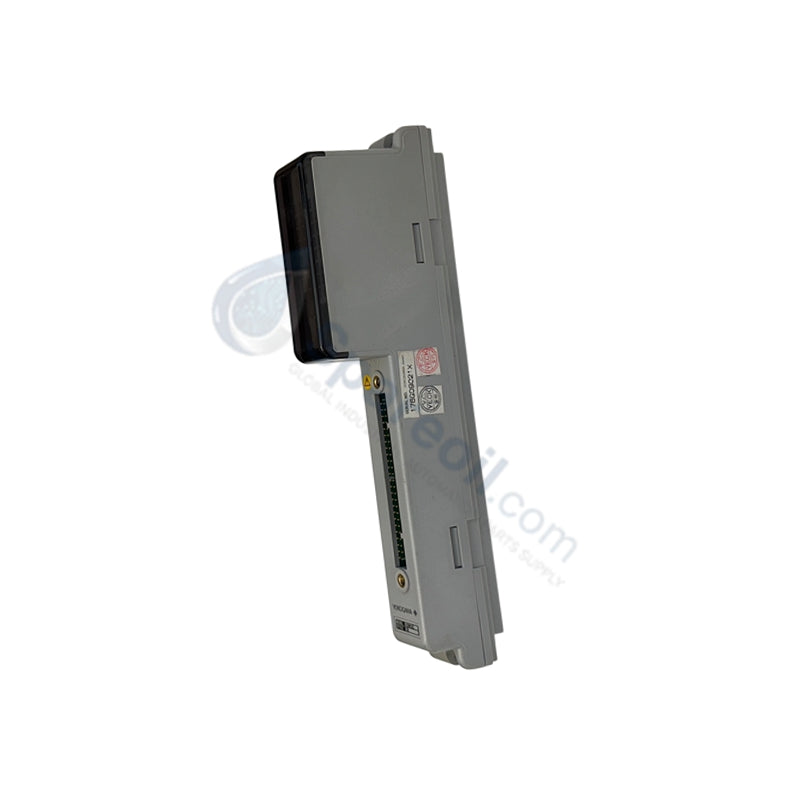

Yokogawa ADM12C-S2 Digital Input Module

Configured for high-density discrete signal acquisition in CENTUM CS and CENTUM VP control networks, the Yokogawa ADM12C-S2 (ADM12C Digital Input Module) provides direct physical execution of dry contact signal processing.

Hardware Specifications

Parameter	Specification
Model	ADM12C-S2
Brand	Yokogawa
Origin	Japan
Weight	0.7 kg
Dimensions	125 mm x 100 mm x 150 mm
Operating Temp	0 deg C to +60 deg C
Power Consumption	3 W
Input Channels	32 isolated digital inputs
Isolation	Grouped optical isolation
Response Time	40 ms pulse width (max 10 Hz)

DCS Process Control Connectivity

The ADM12C-S2 module integrates high-density digital signal processing within Yokogawa DCS architectures. Each of the 32 input channels features grouped optical isolation to mitigate common-mode noise and ground loop potentials common in industrial cabinets. The module provides internal hardware debounce filters to ensure discrete states (ON ≤ 200 Ohm; OFF ≥ 100 kOhm) are accurately digitized without false triggering from transient contact bounce. Integration into the control network is achieved via standardized KS9 or KS10 series cabling connecting to TE32 terminal boards, facilitating a consistent signal path that preserves the integrity of logic-level transitions required for process monitoring.

Frequently Asked Questions

Q: Does the ADM12C-S2 support hot-swapping within the I/O rack?

A: Yes, the ADM12C-S2 is designed for hot-swappable installation. The backplane interface allows for module replacement without interrupting the operation of the host controller or the associated system power supply, provided that the physical terminal connections are managed correctly during the swap.

Q: How does the internal hardware debounce function affect input signal timing?

A: The hardware debounce is optimized to reject high-frequency contact noise, resulting in a minimum pulse width requirement of 40 ms for valid state detection. Signals shorter than this threshold may not be captured by the module, which is a design requirement to ensure signal stability in electrically noisy environments.

Field Installation Guidelines

Mounting: Ensure the module is securely seated in the designated I/O nest slot. Verify that the backplane connector is fully engaged and the locking levers are in the closed position to prevent vibration-induced signal intermittency.
Signal Wiring: Connect the field dry contact inputs to the TE32 terminal board using shielded cabling (KS9/KS10 series). Terminate the shield at the cabinet ground rail to minimize EMI coupling into the sensitive input stages.
Grounding: Maintain a low-impedance ground path between the I/O nest chassis and the main cabinet earth bar. This connection is necessary for the grouped optical isolation circuits to provide the rated protection against potential ground potential differences.
Environment: While the module is rated for up to 60 deg C, maintain internal cabinet temperatures below 50 deg C to maximize the MTBF of the internal electronic components and the grouped optocouplers.
