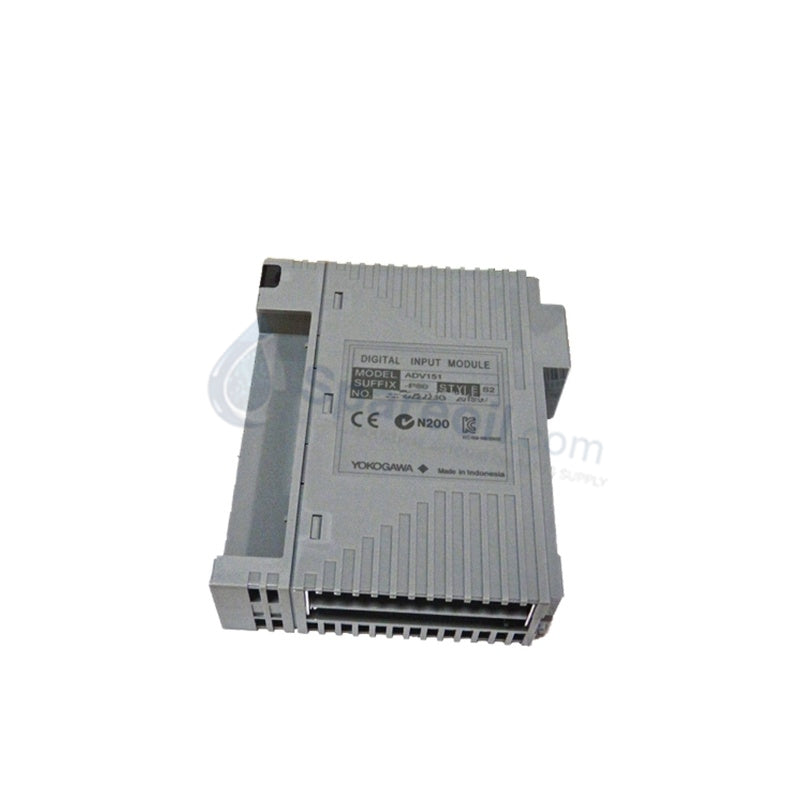

ADV151-P10/D5A00 Yokogawa Digital Input Module

ADV151-P10/D5A00 Yokogawa CENTUM VP Digital Input Module

ADV151-P10/D5A00 Yokogawa CENTUM VP Digital Input Module

Disponibilidad: 20 Quedan en stock

Yokogawa ADV151-P10/D5A00 Digital Input Module The Yokogawa ADV151-P10/D5A00 serves as the primary ADV151 Digital Input Module utilized to execute discrete...

Código: ADV151-P60/D5A00

Manufacturer: Yokogawa
Product No.: ADV151-P60/D5A00
Product Type: Digital Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Yokogawa ADV151-P10/D5A00 Digital Input Module

The Yokogawa ADV151-P10/D5A00 serves as the primary ADV151 Digital Input Module utilized to execute discrete field signal acquisition across CENTUM VP control system platforms.

Suffix Breakdown & Model Matrix

The suffix structure defines specific hardware configurations for the ADV151 base architecture:

P: Incorporates pushbutton input functionality.
1 / 6: Specifies functional variant, status indication, and explosion protection classification.
0: Denotes basic module functional design.
D5A00: Specifies the integrated KS cable interface adapter configured for 32-channel digital signal connection.

Hardware Specifications

Parameter	Specification
Model	ADV151-P10/D5A00
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg
Dimensions	Compact modular rack mount
Operating Temp	-20 deg C to +55 deg C
Power Consumption	200 mA at 5 VDC, 30 mA at 24 VDC
Input Channels	16 or 32 digital inputs (configuration dependent)
Rated Input Voltage	24 VDC
Input Voltage Range	ON >= 15 VDC, OFF <= 5 VDC
Input Current	4 to 7 mA per channel
Isolation	1500 VAC withstand between field and system logic
Response Time	<= 5 ms

4-20 mA HART Loop Protocol & Channel Isolation

The module incorporates optocoupler galvanic barriers rated at 1500 VAC to isolate field contact loops from system logic backplanes. Designed for dense DCS enclosures containing active 4-20 mA HART loop protocol wiring and low-voltage digital I/O lines, the physical circuit design suppresses transient voltage spikes and ground potential shifts. Front-panel diagnostic LEDs continuously display channel activation states, providing immediate hardware status verification during field contact transitions.

Frequently Asked Questions

Q: Can this module be replaced while the DCS backplane remains energized?

A: Yes, the unit supports online hot-swap replacement, allowing extraction and installation without de-energizing the I/O rack or interrupting active communication on neighboring cards.

Q: What interface adapter option is integrated with the /D5A00 suffix?

A: The /D5A00 option code indicates the module includes a factory-installed KS cable interface adapter designed for direct termination via 32-channel system cabling.

Field Installation Guidelines

Install the module into the designated slot of the CENTUM VP base rack, verifying that the card edge connectors seat firmly into the backplane. Secure the KS cable interface adapter to the front terminal layout and verify that field cabling shield conductors connect directly to the central cabinet grounding bar. Maintain strict physical separation between 24 VDC signal wiring and high-voltage AC power lines within the cable ducts to prevent induced electromagnetic noise.
