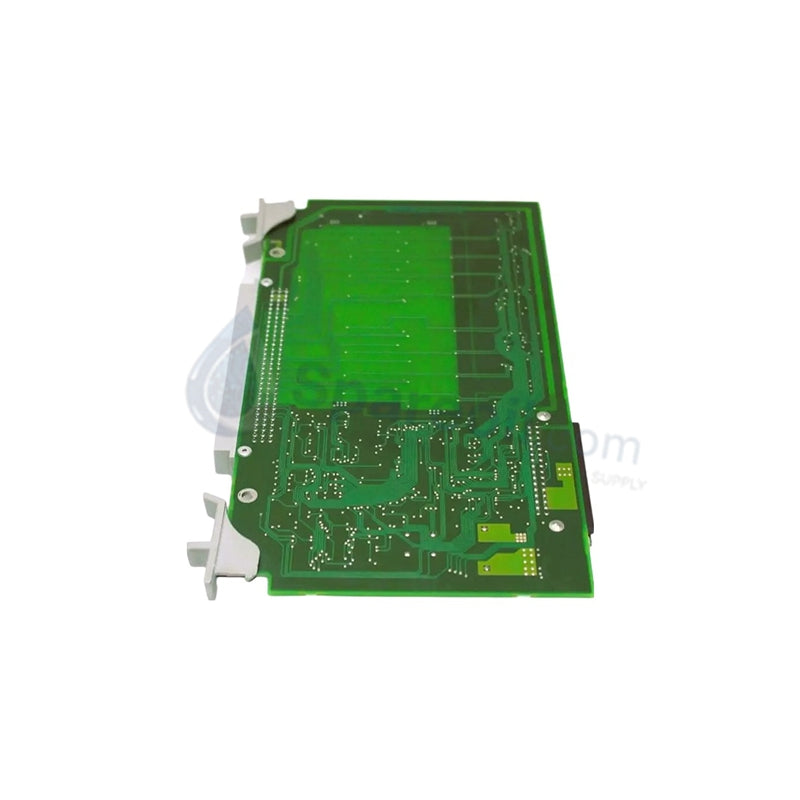

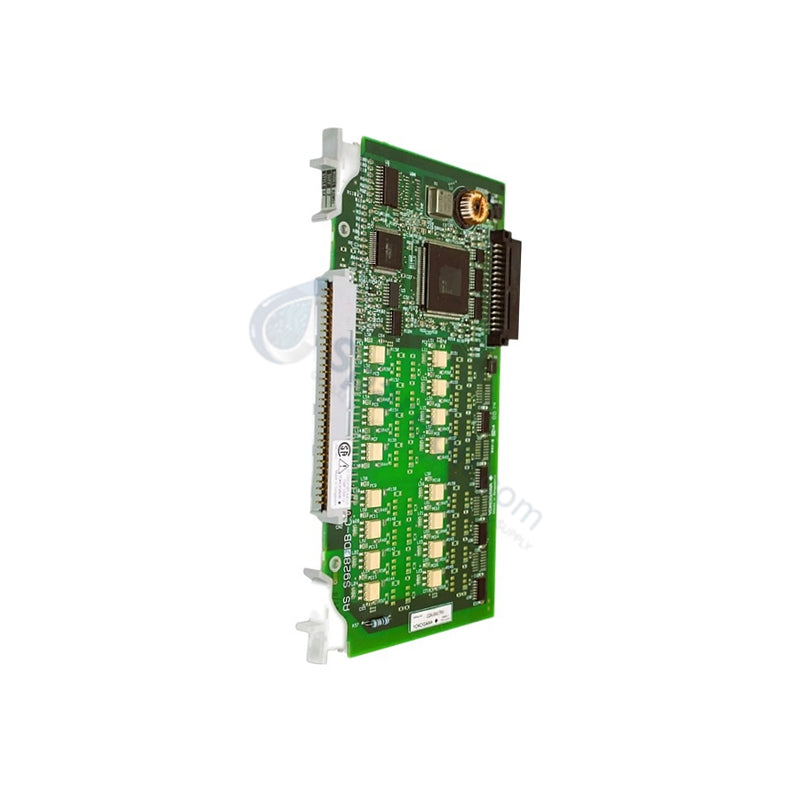

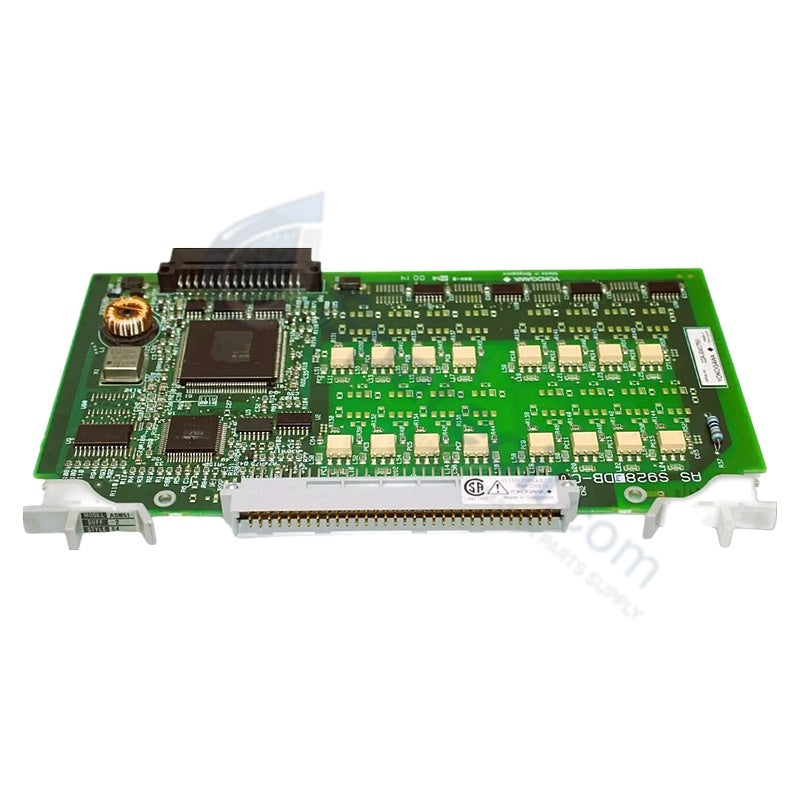

Yokogawa ADM51-2 S4 Contact Output Module

Configured for discrete switching and load isolation in CENTUM VP and CENTUM CS systems, the Yokogawa ADM51-2 S4 (ADM51 Contact Output Module) provides direct physical/electrical execution. The module houses 8 independent Single Pole Double Throw (SPDT) relay contact channels designed to drive external final control elements, interlocks, and alarm annunciators. Operating directly off 24 VDC control power, the assembly provides isolated dry contact closures, keeping field electrical disturbances from penetrating internal backplane processing logic.

Suffix Breakdown & Model Matrix

Suffix Code	Specification	Functional Description
ADM51	Base Model	Contact Output Module (SPDT contact design)
-2	Contact Type / Configuration	8-channel SPDT isolated contact output variant
S4	Style Code	Hardware style revisions for specific backplane compatibility

Hardware Specifications

Parameter	Specification
Model	ADM51-2 S4
Brand	Yokogawa
Origin	Japan
Weight	0.2 kg net (1.0 kg packaged)
Dimensions	127 mm x 25 mm x 203 mm
Operating Temp	-10 to +55 deg C
Power Consumption	24 VDC logic power supply input
Output Channels	8 isolated SPDT contact channels
Rated Contact Current	1 A per output channel
Contact Switching Rating	250 VAC at 1 A
Isolation Resistance	100 Mohm minimum at 500 VDC
Withstanding Voltage	500 VAC dielectric isolation

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation Integration

The ADM51-2 S4 contact output module preserves system integrity by deploying complete physical channel-to-channel isolation and galvanic backplane separation rated for 500 VAC. When installed inside control enclosures carrying 4-20 mA HART loop protocol carrier frequencies or millivolt CJC (cold junction compensation) instrumentation circuits, the individual relay chambers isolate field inductive noise. This channel-to-channel architecture prevents high-voltage inductive switching transients from inducing crosstalk into nearby high-density analog signal processing cards.

Frequently Asked Questions

Q: How does the SPDT contact layout benefit field wiring configurations over SPST contacts?

A: Each SPDT (Form C) output channel provides both normally open (NO) and normally closed (NC) contacts sharing a single common terminal, allowing field technicians to wire failsafe trip loops without adding intermediate external relays.

Q: What are the backplane insertion limits regarding hot-swapping the ADM51-2 S4 module?

A: Field servicing requires de-energizing external 250 VAC / 1 A field load circuits at the terminal block prior to extracting the module from the baseplate to prevent arcing across backplane edge connector pins.

Q: How should inductive field loads be suppressed when wired directly to the relay outputs?

A: An external flyback diode must be connected across 24 VDC inductive loads, or an RC snubber network across 250 VAC loads, to absorb switching back-EMF spikes and prevent contact erosion.

Field Installation Guidelines

Contact Arc Suppression: Install snubber circuits or suppression diodes directly across external inductive coils (solenoids, motor starters) to maintain the 1 A switching specification and protect internal SPDT contacts.
Cabinet Signal Separation: Maintain a minimum 200 mm clearance between SPDT output load cables carrying 250 VAC and sensitive 4-20 mA analog or communication bus wiring.
Functional Grounding: Connect the I/O rack frame earth terminal to the main functional earth (FE) bus using low-impedance copper strap to ensure full dielectric isolation performance (500 VAC).
Load Current Boundaries: Verify that the continuous switching current across each individual SPDT contact channel does not exceed 1 A under maximum ambient operating temperatures.
