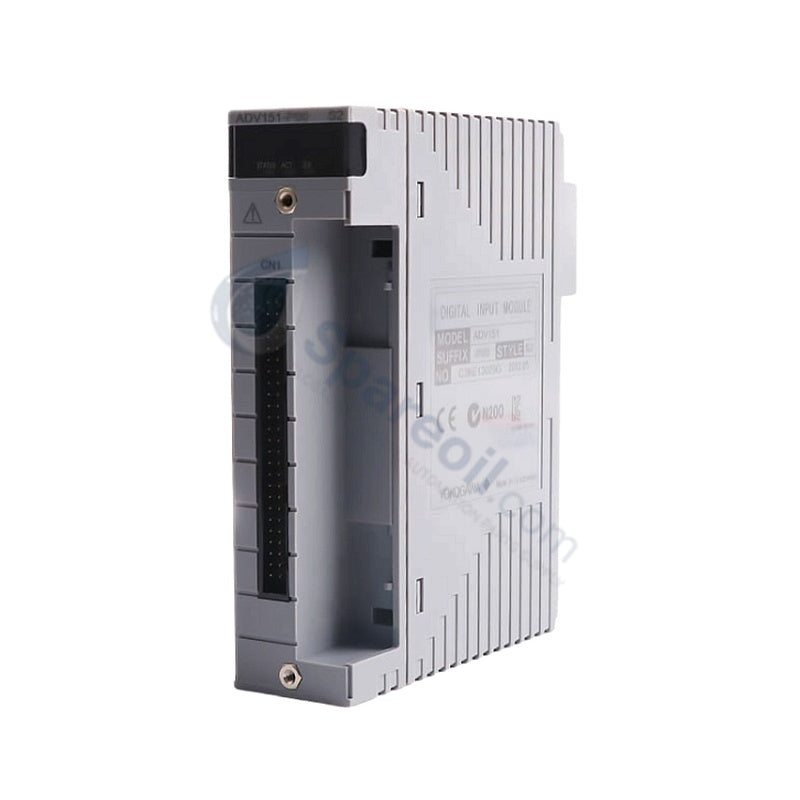

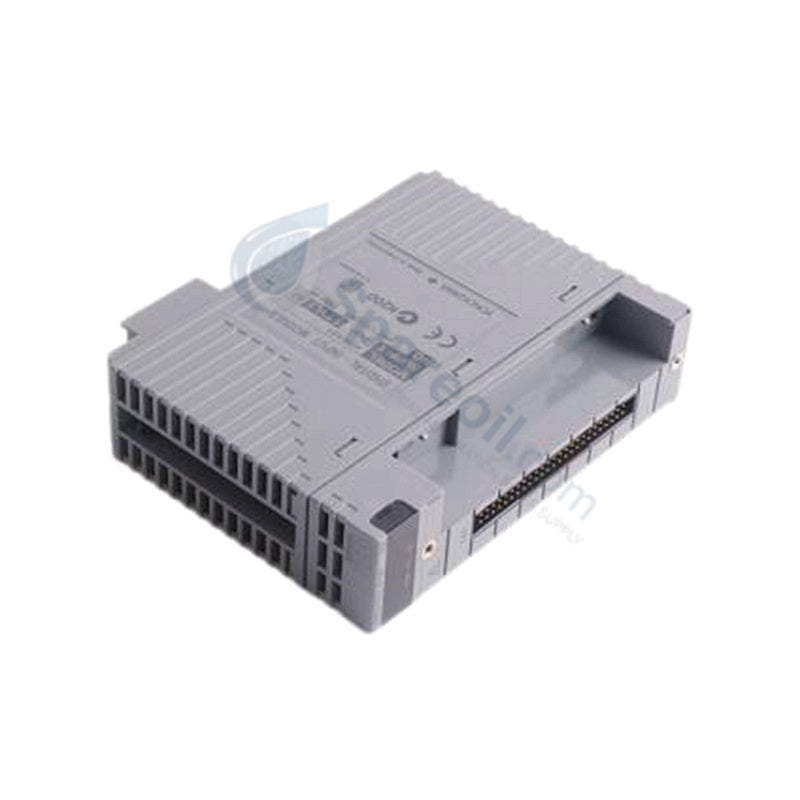

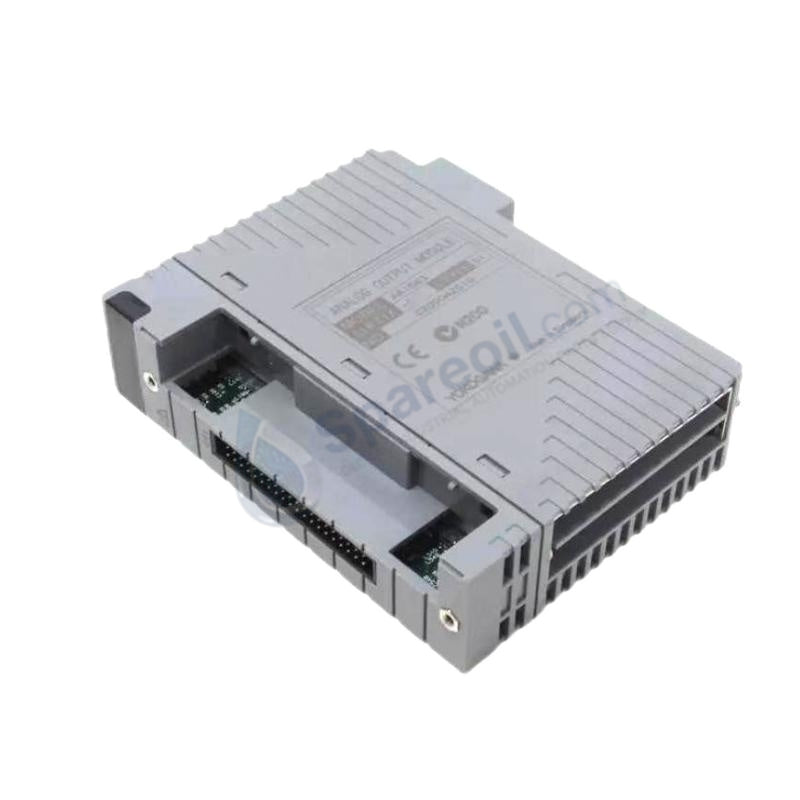

Yokogawa ADV151-P13/D5A00 Digital Input Module

The Yokogawa ADV151-P13/D5A00, also cataloged as the ADV151 Digital Input Module, operates as a dedicated hardware component for discrete field signal acquisition and contact status processing within CENTUM VP and CS 3000 DCS platforms.

Suffix Breakdown & Model Matrix

Code Component	Code Option	Technical Definition
Model	ADV151	Digital Input Module (32-channel, 24 VDC, Isolated)
Suffix - Type	-P	Standard type with basic execution features
Suffix - Features	1	Standard specification without status display
Suffix - Protection	3	With ISA Standard G3 option and extended temperature (-20 to 70 deg C) option
Option Code	/D5A00	With KS Cable Interface Adapter for 32-channel digital signals (ATD5A-00)

Hardware Specifications

Parameter	Specification
Model	ADV151-P13/D5A00
Brand	Yokogawa
Origin	Japan
Weight	0.6 kg Net / 1.5 kg Shipping
Dimensions	Compact modular design for CENTUM VP nest
Operating Temp	-20 to +70 deg C
Power Consumption	200 mA at 5 VDC, 30 mA at 24 VDC
Input Channels	32 Digital Inputs
Rated Input Voltage	24 VDC
Input Voltage Thresholds	ON state >= 15 VDC, OFF state <= 5 VDC
Input Current	4 to 7 mA per channel
Isolation	1500 VAC withstand between field and system logic
Response Time	<= 5 ms ON/OFF switch latency
Compliance	CE, UL, RoHS, ISA Standard G3 protective coating

Process Control and DCS Interface Features

The unit integrates 32 isolated digital input channels to acquire field contacts while maintaining galvanic isolation up to 1500 VAC. The module routes status signals across the DCS backplane bus directly to Field Control Stations. The onboard KS cable interface adapter (/D5A00) allows direct connection to external terminal panels, preserving channel-to-channel isolation and shielding internal logic against transient field surges.

Frequently Asked Questions

Q: What is the direct manufacturer-designated functional replacement for the ADV151-P13/D5A00 module?

A: Yokogawa designates the ADV151-P63/D5A00 module as the direct functional replacement. The replacement unit retains identical 32-channel 24 VDC electrical parameters while adding front-panel LED status displays.

Q: Can engineers hot-swap the ADV151-P13/D5A00 module during system operation?

A: Yes. You can remove and replace the module online without interrupting active Field Control Station execution or de-energizing adjacent system cards on the I/O node nest.

Field Installation Guidelines

Module Insertion and Grounding: Slide the module firmly into its designated slot in the CENTUM I/O nest until the top and bottom latches lock cleanly. Verify that the node chassis earth braid connects directly to the panel protective conductor.
KS Cable Adapter Routing: Fasten the KS cable interface adapter (/D5A00) securely to the module front connector. Route signal multi-cores through cable troughs to prevent mechanical strain on the module interface.
Shielding Termination Rules: Terminate incoming field cable shields at the dedicated earth bar on the termination assembly. Keep shield drain wires isolated from field common lines to uphold the 1500 VAC isolation barrier.
