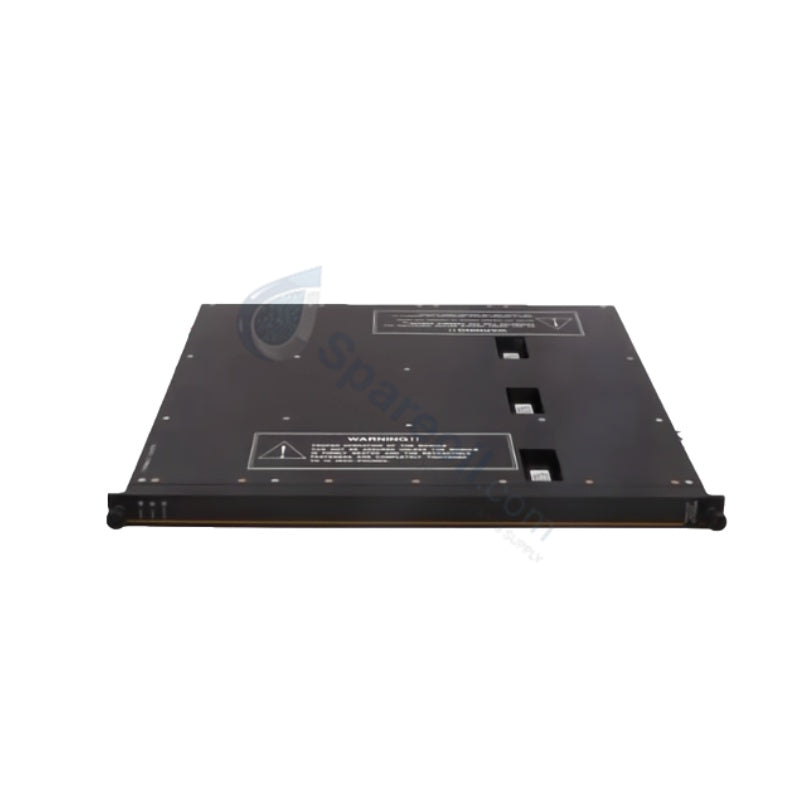

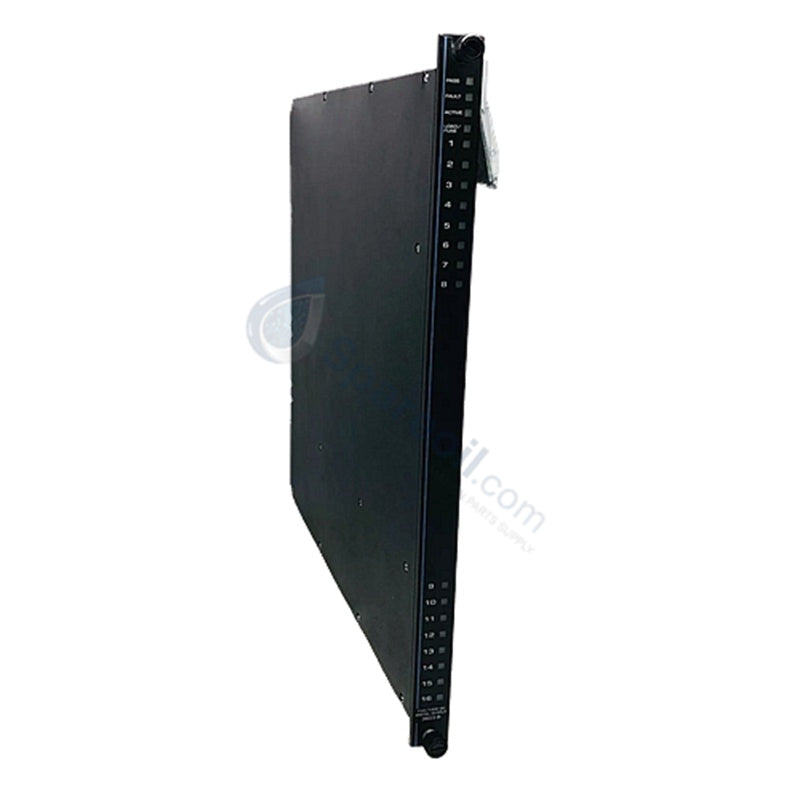

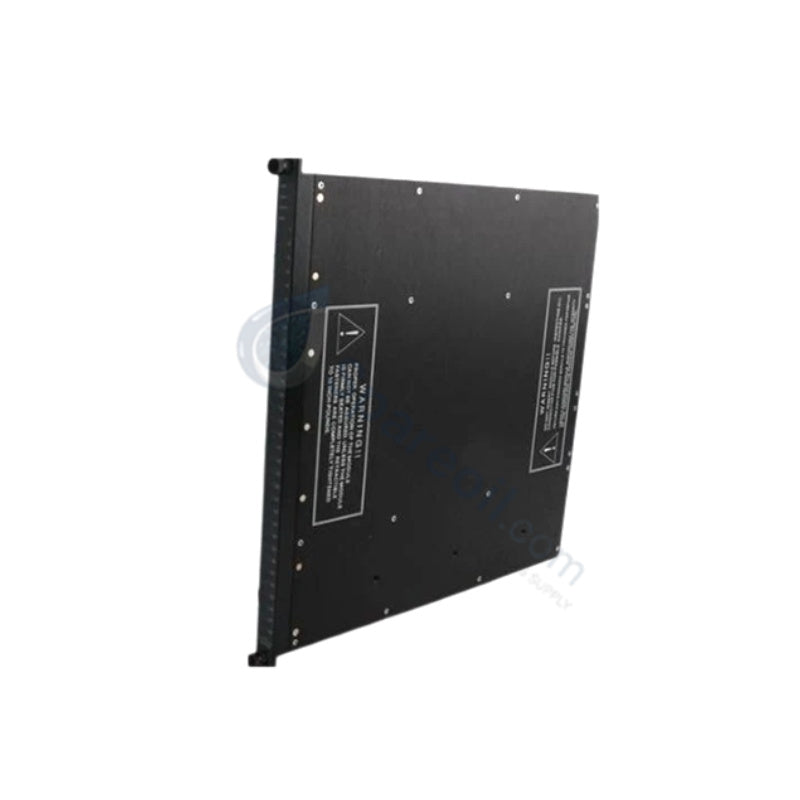

Triconex 3603B Tricon 3000 Series Module

The Triconex 3603B, also cataloged as the 3603B Digital Output Module, operates as a dedicated hardware component for discrete signal processing within Tricon 3000 Series SIS platforms. The hardware routes concurrent state transitions from the internal processing core directly to external field circuits to manipulate solenoids, relays, and trip actuators.

Hardware Specifications

Parameter Specification
Model 3603B
Brand Triconex (Schneider Electric)
Origin United States
Weight 1.5 - 2.0 kg (2.00 lbs)
Dimensions 177.8 mm x 101.6 mm x 228.6 mm
Operating Temp -20 to +60 deg C
Power Consumption 15 W typical
Output Channels 32 isolated digital outputs
Output Voltage 24 VDC nominal (Alternative spec: HVDO 120 VAC)
Output Current Up to 0.5 A per channel
Safety Integrity Level SIL3 (IEC 61508 / IEC 61511)
Isolation 1500 VAC galvanic isolation between backplane and field wiring
Diagnostics Continuous self-test, LED indicators per channel
Termination Style Screw-clamp terminals, accepts 12-22 AWG wire
Storage Temp -40 to +85 deg C
Humidity Range 5% to 95% non-condensing
Certifications IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy and Safety Integrity

The processing sub-assembly utilizes a triple modular redundancy (TMR) 2oo3 architecture consisting of three isolated hardware legs running parallel safety logic paths. Internal signal verification mechanisms depend on 1500 VAC galvanic isolation to separate the input channel logic from the main controller backplane bus. If a hardware fault occurs, the internal voter logic identifies the discrepant leg and maintains fail-safe state execution across the operational loops. Automated hardware diagnostics flag wiring faults and open-loop failures to uphold systemic validation parameters under IEC 61508 SIL3 limits.

Frequently Asked Questions

Q: What are the online hot-swap constraints when extracting this digital output module?

A: The module supports online hot-swap capabilities inside the designated rack allocation. Technicians can replace the unit while the backplane remains energized without stopping the system logic solver execution or causing process interruption on the remaining active modules.

Q: How does the channel isolation network respond to common-mode electrical noise across field loops?

A: The 1500 VAC galvanic isolation barrier actively mitigates electrical cross-talk and limits voltage transitions between the external field wiring terminals and the internal backplane architecture, maintaining signal clarity for the digital output logic.

Field Installation Guidelines

Align and insert the module vertically into the specific single-slot allocation of the Tricon 3000 Series SIS chassis. Verify full mechanical seating with the backplane pin assembly before engaging the front panel locking mechanisms. Connect field cabling using the corresponding termination baseplate, ensuring all conductors comply with 12-22 AWG wire size specifications. Ground the overall cable shielding loops directly to a low-impedance master instrument ground bus to minimize electromagnetic interference (EMI). Route all discrete output control cables through dedicated wireways separated from high-current AC power cables.
