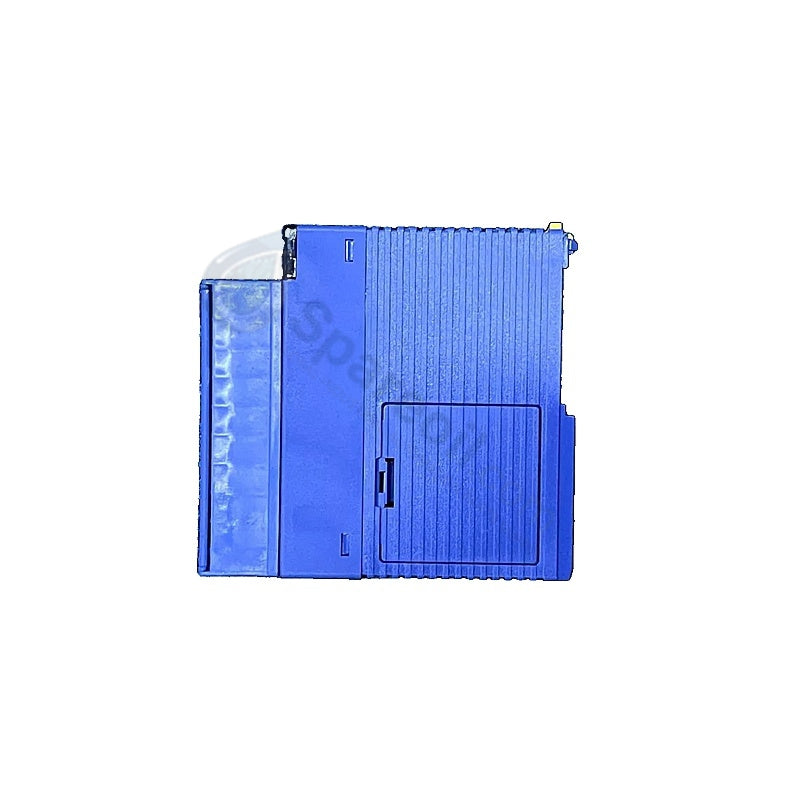

Yokogawa F3YD64-1F FA-M3 Transistor Output Module

Configured for discrete field actuation in FA-M3 PLC platforms, the Yokogawa F3YD64-1F (F3YD64-1F Transistor Output Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model F3YD64-1F
Brand Yokogawa
Origin Japan
Weight 0.25 kg
Dimensions 35.0 mm x 130.0 mm x 100.0 mm
Operating Temp 0 to +55 deg C
Power Consumption 6.0 W approx. (supplied via 5 VDC backplane)
Output Channels 64 transistor outputs (Sink-type DC)
Rated Output Voltage 24 VDC (range 20.4 to 28.8 VDC)
Rated Output Current 0.1 A per channel maximum
Total Current Capacity 3.2 A per common terminal
Response Time <= 0.5 ms
Isolation Optical isolation between channels and internal logic
Status Indicators LED indicators per output channel

Process Control Signal Isolation and High-Density Switching Dynamics

The module executes discrete state control through 64 sink-type transistor output channels organized across high-density terminal banks. Integrated optical isolation barriers physically disconnect field-side 24 VDC switching circuits from the internal backplane logic bus. This configuration prevents high-voltage surges and common-mode noise from entering the primary CPU card while delivering response times below 0.5 ms. Built-in protection logic handles inductive switching noise, maintaining signal integrity during rapid state transitions across external solenoid valves and auxiliary relays.

Frequently Asked Questions

Q: What are the current loading limitations when operating all 64 output channels simultaneously?

A: Each individual output channel supports a maximum current load of 0.1 A at 24 VDC. Field installers must ensure that total current draw per common terminal bank does not exceed 3.2 A to avoid thermal overload.

Q: How does the module handle inductive voltage spikes during high-speed transistor switching?

A: Internal optical couplers isolate field circuits from backplane logic, but external inductive loads (such as DC relay coils) require external flyback diodes installed directly across the field device terminals to suppress inductive voltage transients.

Field Installation Guidelines

Mount the module directly into a free I/O slot on the FA-M3 base unit. Ensure backplane connectors align correctly before pushing the module firmly into position, and tighten the retaining screw to lock the assembly to the DIN rail frame.

Terminate field wiring using the 64-point connector block. Connect the external 24 VDC power supply to the designated power terminals, ensuring correct polarity for sink-type transistor operation. Route field output cables separately from high-voltage AC lines to prevent electromagnetic cross-talk. Maintain adequate enclosure cabinet ventilation to dissipate internal heat when all 64 channels operate at maximum current capacity.
