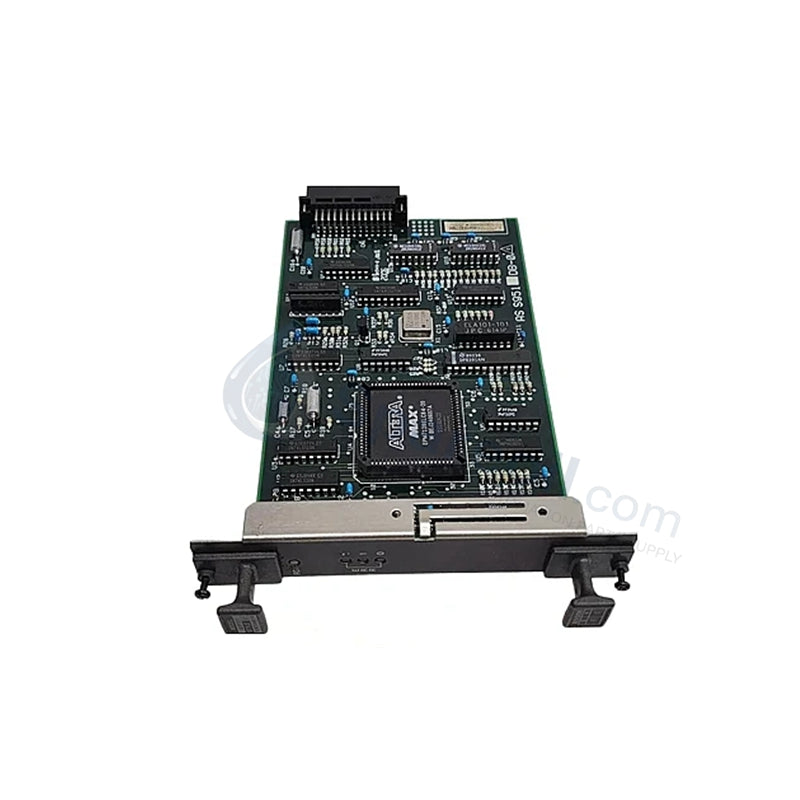

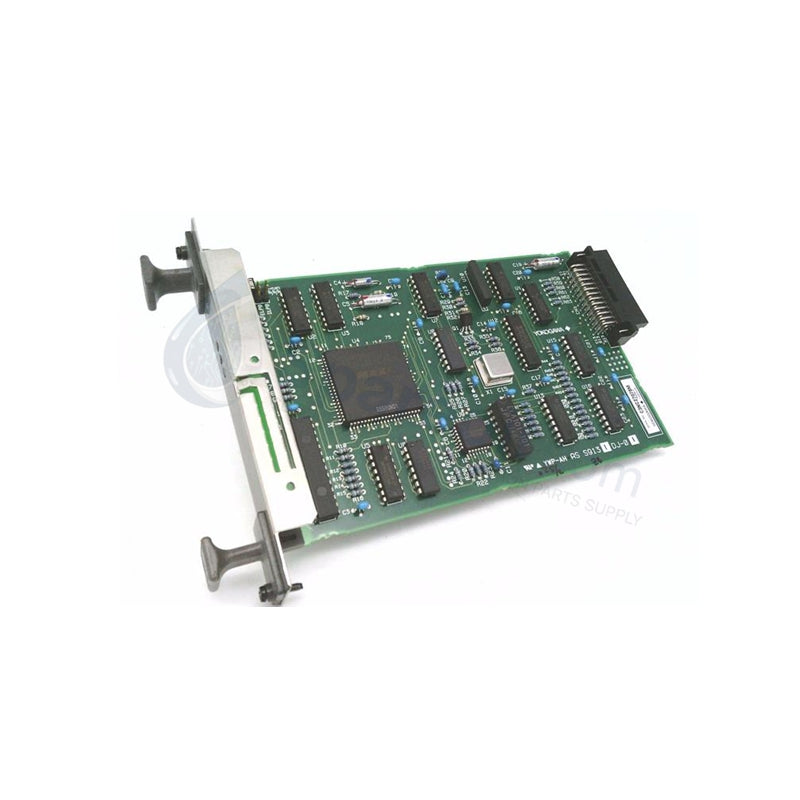

HART-Enabled Analog I/O Module YOKOGAWA VM1*B CENTUM VP

Disponibilidad: 10 Quedan en stock

YOKOGAWA VM1*B Multipoint Analog I/O Module Configured for high-accuracy signal acquisition in CENTUM VP and CS 3000 DCS platforms, the...

Código: VM1*B

Manufacturer: Yokogawa
Product No.: VM1*B
Product Type: Analog I/O Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 1360g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

YOKOGAWA VM1*B Multipoint Analog I/O Module

Configured for high-accuracy signal acquisition in CENTUM VP and CS 3000 DCS platforms, the YOKOGAWA VM1*B (VM1B Analog I/O Module) provides direct physical/electrical execution of HART-enabled analog loop management.

Suffix Breakdown & Model Matrix

VM1: Base model identifier for multipoint analog I/O functionality with integrated HART communication support.
*B: Revision designator indicating specific hardware iteration and interface standards for DCS rack backplane compatibility.

Hardware Specifications

Parameter	Specification
Model	VM1*B
Brand	YOKOGAWA
Origin	Japan
Weight	1.36 kg
Dimensions	356 × 178 × 25 mm
Operating Temp	-10 deg C to +55 deg C
Power Consumption	24 V DC
I/O Type	Analog (4-20 mA) / HART
Redundancy	Dual-redundant capable
Calibration	Factory/User-defined storage

DCS Process Control & Isolation Attributes

The VM1*B executes 16-bit analog signal processing while concurrently supporting HART protocol data extraction from smart field instrumentation. To maintain loop integrity in high-density rack environments, the module features channel-to-channel isolation that prevents ground-loop interference and common-mode transients. The module utilizes cold junction compensation (CJC) for temperature-sensitive inputs and provides real-time diagnostic reporting via the HART loop protocol. This integration allows for simultaneous analog control and digital device monitoring without interrupting the primary control signal. Furthermore, the redundant architecture enables seamless state synchronization, ensuring continuous operation within the DCS control station.

Frequently Asked Questions

Q: Does the VM1*B support online hot-swapping?

A: Module replacement must adhere to the specific DCS backplane power-down procedures to prevent potential bus communication errors. Confirm system redundancy status in the engineering workstation prior to extraction.

Q: Is HART communication supported on all input/output channels?

A: The module is engineered for HART-enabled device integration; however, ensure the field wiring and software channel configuration are correctly mapped to permit digital data transit across the analog loop.

Q: How is calibration data preserved during module power cycles?

A: The module incorporates non-volatile memory that stores both factory-default and user-calibrated A/D conversion values, ensuring immediate signal accuracy upon system initialization.

Field Installation Guidelines

Mounting: Secure the module into the designated DCS rack slot, ensuring the locking mechanisms are fully engaged to establish a low-impedance ground bond with the cabinet backplane.
Wiring: Use shielded twisted-pair instrumentation cabling for all analog signal paths. Terminate the shield at the cabinet-level grounding rail to provide a low-resistance path for electromagnetic noise suppression.
Isolation: Keep signal cabling at a minimum distance of 150 mm from high-voltage AC lines to prevent inductive noise coupling into the sensitive HART signal processing stage.
Thermal Management: Monitor the rack ambient temperature to ensure it remains within the -10 deg C to +55 deg C range, maintaining adequate clearance for proper convection-based heat dissipation.
