ST2D YOKOGAWA CENTUM DCS Datasheet & Technical Manual

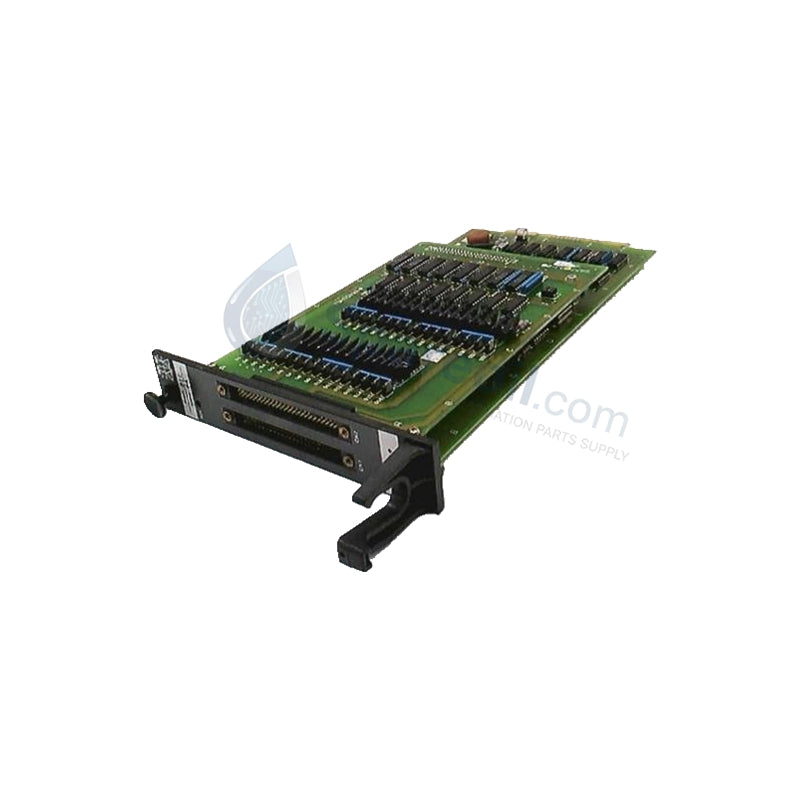

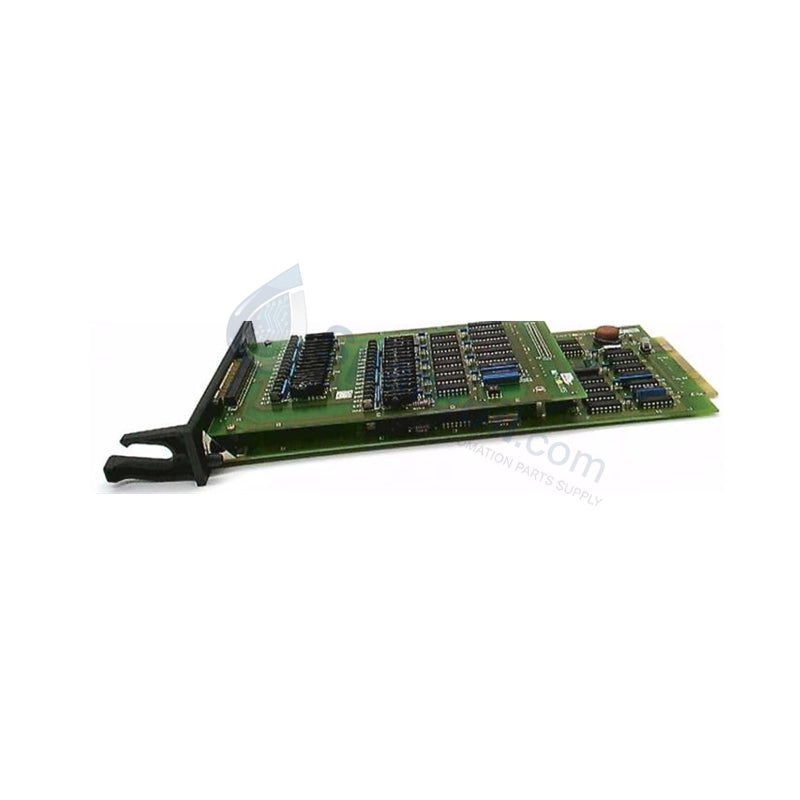

Multi Status Input Interface Card YOKOGAWA ST2*D CENTUM VP

Multi Status Input Interface Card YOKOGAWA ST2*D CENTUM VP

Disponibilidad: 10 Quedan en stock

YOKOGAWA ST2*D Multi Status Input Card Configured for field signal termination in CENTUM VP and CS 3000 DCS platforms, the...

Código: ST2*D

Manufacturer: Yokogawa
Product No.: ST2*D
Product Type: Interface Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

YOKOGAWA ST2*D Multi Status Input Card

Configured for field signal termination in CENTUM VP and CS 3000 DCS platforms, the YOKOGAWA ST2*D (ST2D Multi Status Input Card) provides direct physical/electrical execution of sensor-to-controller signal interface management.

Suffix Breakdown & Model Matrix

ST2: Base model identifier for multi-status signal termination and input interface functionality.
*D: Hardware revision and interface designation indicating compatibility with specific I/O module bus structures.

Hardware Specifications

Parameter	Specification
Model	ST2*D
Brand	YOKOGAWA
Origin	Japan
Weight	0.5 kg
Dimensions	250 × 130 × 30 mm
Operating Temp	-10 deg C to +55 deg C
Power Consumption	Passive
I/O Type	Multi-Status Analog/Digital
Isolation	Electrical
Protection	Built-in Surge Suppression

DCS Process Control & Isolation Attributes

The ST2*D functions as a primary interface layer for field instrumentation, facilitating the transition between external field wiring and internal DCS signal processing modules. To preserve measurement integrity, the card incorporates electrical isolation between the field wiring terminal block and the system bus, effectively mitigating common-mode voltage contamination. The design features integrated surge protection circuitry to shield downstream I/O modules from transient voltage spikes originating in the field-side cable runs. Furthermore, the unit provides cold junction compensation (CJC) pathing for thermocouple-based inputs, ensuring that terminal block thermal gradients do not influence the accuracy of the connected analog input circuitry during process monitoring.

Frequently Asked Questions

Q: Does the ST2D card require external power for operation? A: No, the ST2D serves as a passive signal termination and interface assembly; power for the associated field devices is provided via the connected I/O module loops.

Q: How should I verify the integrity of the integrated surge protection?

A: The surge protection components are designed for industrial longevity. However, if a high-energy transient event occurs, perform a continuity check on the suppression paths and replace the unit if impedance measurements deviate from established baseline values.

Q: Can this module be utilized for both analog and digital signals simultaneously?

A: Yes, the terminal architecture permits the routing of mixed analog and digital signals, provided that the wiring segregation standards for the connected DCS I/O modules are maintained.

Field Installation Guidelines

Mounting: Secure the card into the system rack using the provided mounting holes. Ensure the chassis is bonded to the cabinet's equipotential ground plane to maximize the effectiveness of the internal surge protection.
Wiring: Utilize shielded instrumentation-grade cable for all analog signals. Terminate shields at the cabinet-level grounding rail rather than at the card itself to prevent ground loops.
Signal Isolation: Maintain physical separation of at least 150 mm between the termination assembly wiring and high-current power conductors to prevent inductive noise injection into the signal loops.
Maintenance: Periodically inspect terminal screw torque to ensure low-resistance connections, particularly in environments subject to vibration.
