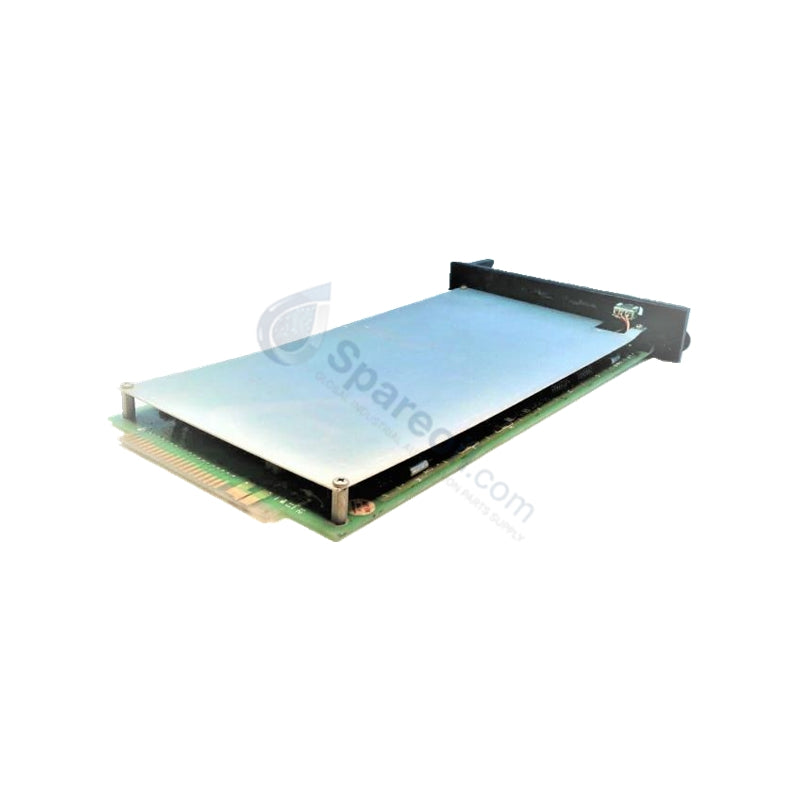

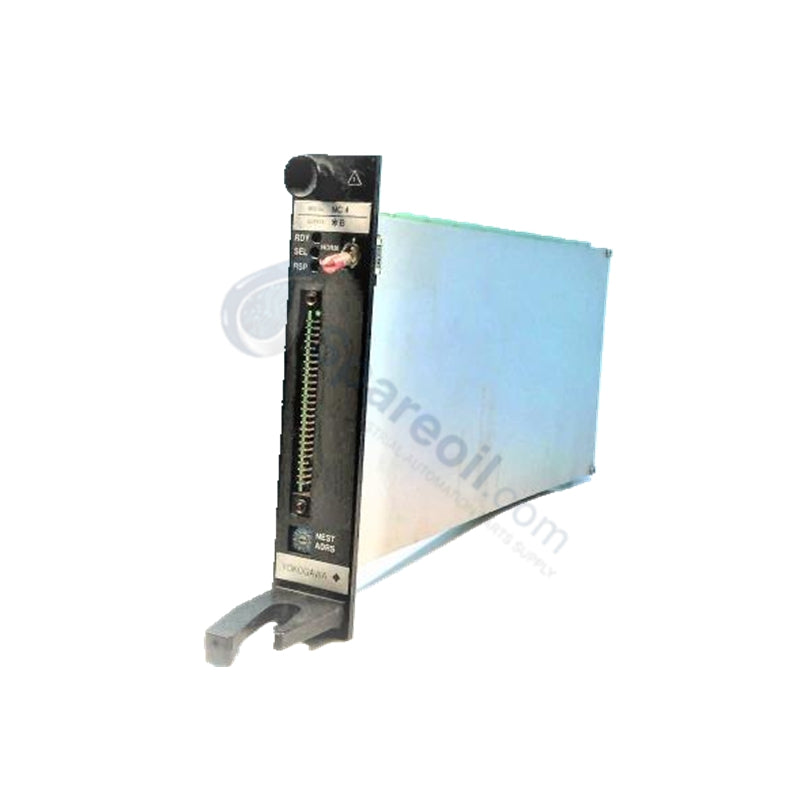

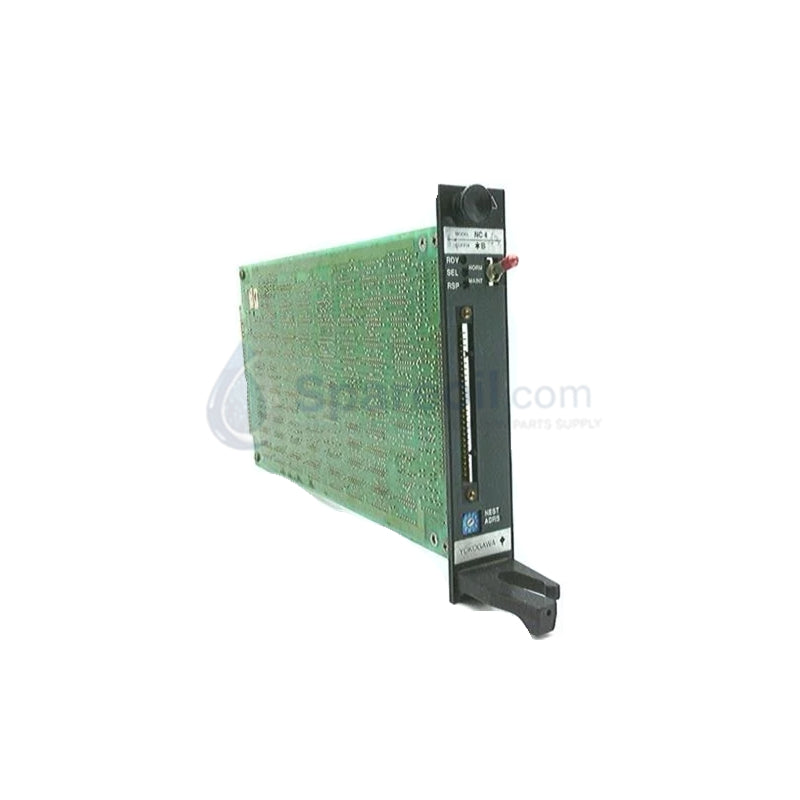

YOKOGAWA NC4*B Node Control Unit

The YOKOGAWA NC4*B, also cataloged as the NC4*B Node Control Unit, operates as a dedicated hardware component for communication gateway execution and local process control within CENTUM VP and ProSafe-RS platform networks. This unit functions as the primary link between field-level digital and analog I/O modules and the upper-level system controller, ensuring deterministic data exchange and real-time execution of automation logic. It is architected for continuous operation in demanding environments, providing the necessary processing power to manage complex node-level tasks with minimal latency.

Hardware Specifications

Parameter	Specification
Model	NC4*B
Brand	YOKOGAWA
Origin	Japan
Weight	0.45 kg
Dimensions	130 mm x 100 mm x 35 mm
Operating Temp	-20 deg C to 60 deg C
Power Consumption	24 VDC nominal
Performance	High-speed system bus interface with embedded CPU

Process Control and DCS Connectivity

The NC4*B functions as a critical node interface, utilizing 4-20 mA HART loop protocol standards for precise data interchange between field instruments and the distributed control system. The hardware architecture supports dual-redundant communication and control paths, facilitating high-availability configurations mandatory for safety-critical operations. To maintain signal integrity during high-volume data traffic, the module provides channel-to-channel isolation, effectively mitigating electrical noise coupling into the system bus. Furthermore, the unit enables integrated cold junction compensation (CJC) for connected thermocouple measurements, ensuring high-precision data acquisition during temperature-sensitive process monitoring across complex DCS and SIS installations.

The embedded CPU facilitates sophisticated diagnostic monitoring, including comprehensive watchdog timer functions and autonomous error logging. These features allow the controller to detect faults at the node level before they propagate to the wider plant network, maintaining the stability of the overall process control architecture.

Frequently Asked Questions

Q: Does the NC4*B support hot-swapping within the I/O rack during system operation?

A: Yes, the module supports hot-swapping; however, verify that the corresponding redundant node is fully synchronized and active before extraction to maintain seamless process control and prevent network communication gaps.

Q: How does the internal watchdog timer respond to process faults?

A: The embedded watchdog timer monitors the scan cycle execution of the CPU. If the scan time exceeds defined parameters due to a logic hang or hardware fault, the module triggers a diagnostic log entry and initiates a pre-configured safe-state transition for the associated I/O points to preserve system integrity.

Q: What are the primary communication interfaces available on the NC4*B?

A: The unit features a high-speed proprietary system bus interface for backplane communication and integrated Ethernet ports for auxiliary connectivity, supporting standard industrial protocol stacks for efficient data routing.

Field Installation Guidelines

Mount the NC4*B securely into the designated control rack slot, ensuring the backplane pins are fully seated and the mechanical locking mechanism is engaged to prevent vibration-induced disconnection. Terminate all system bus and Ethernet cabling to the appropriate ports, ensuring that cable shields are properly bonded to the cabinet ground bus at the entry point to mitigate electromagnetic interference. Verify that the 24 VDC input voltage is stable and within nominal limits before powering the module. After installation, utilize the system engineering software to confirm the node link status and verify the synchronization of redundant paths before commissioning the unit into the active process control loop.
