ProSoft MVI69-PDPMV1 PROFIBUS DPV1 Master Module

ProSoft MVI69-PDPMV1 PROFIBUS DPV1 Master Communication Module

Disponibilidad: 3 Quedan en stock

The ProSoft MVI69-PDPMV1 is a specialized communication module designed to provide PROFIBUS DPV1 Master connectivity for Rockwell Automation CompactLogix and...

Código: MVI69-PDPMV1

Manufacturer: ProSoft
Product No.: MVI69-PDPMV1
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 140g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

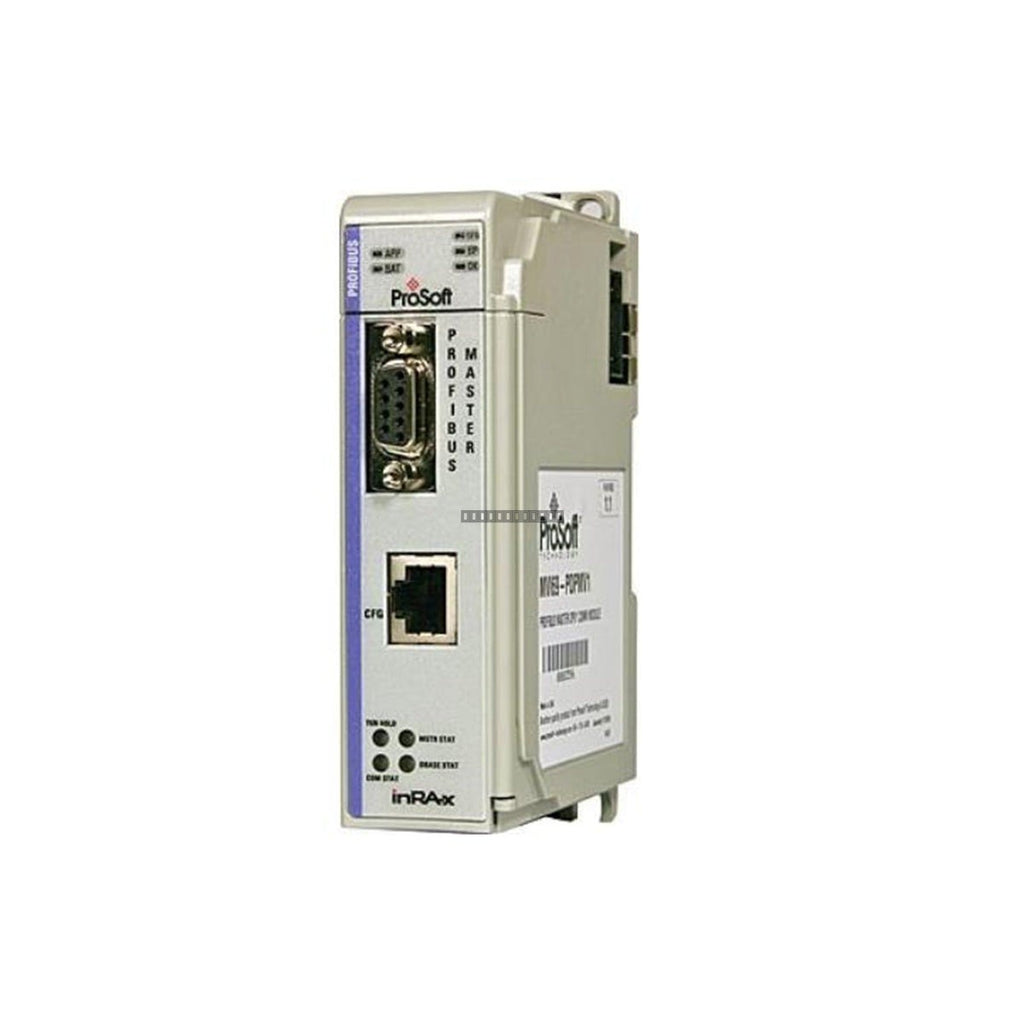

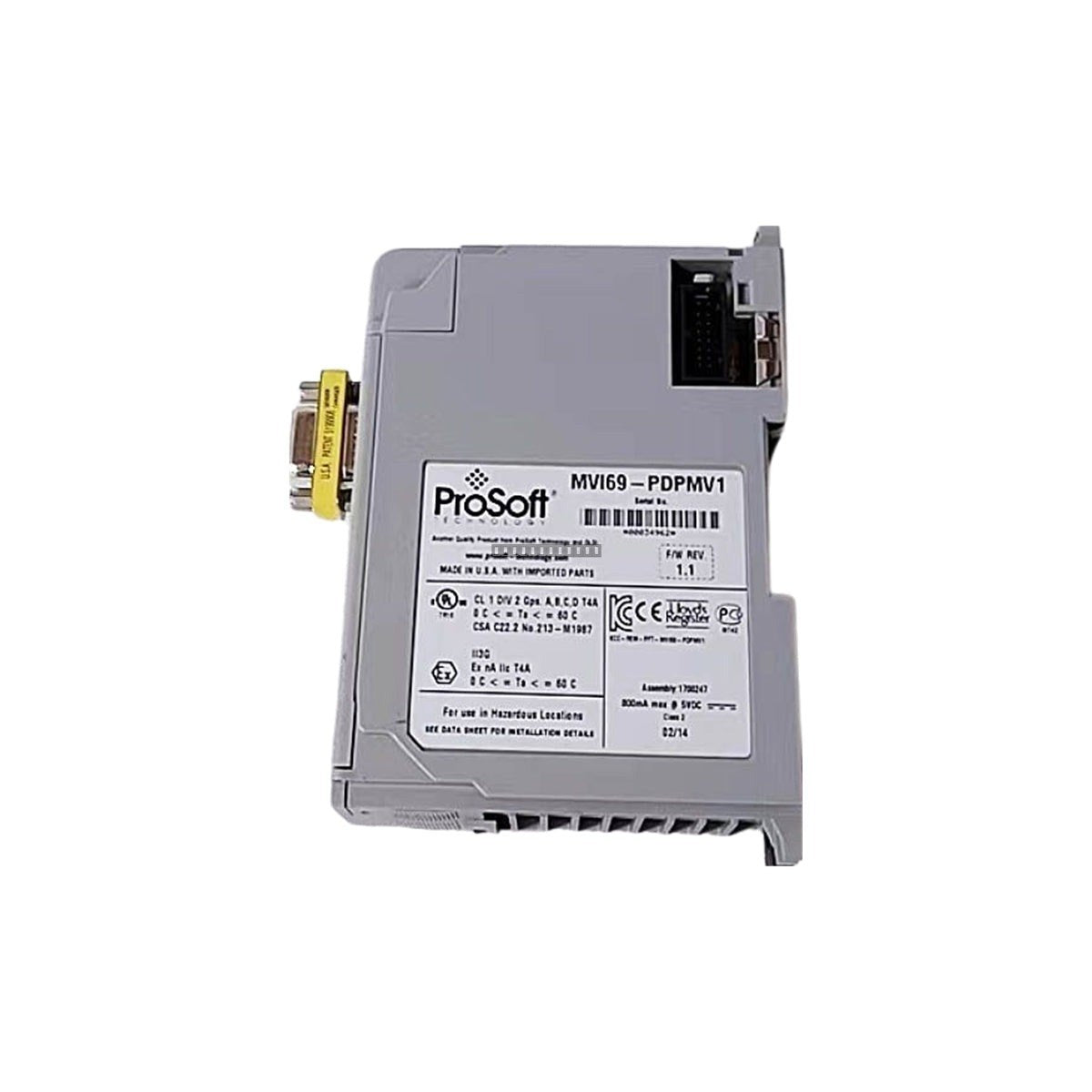

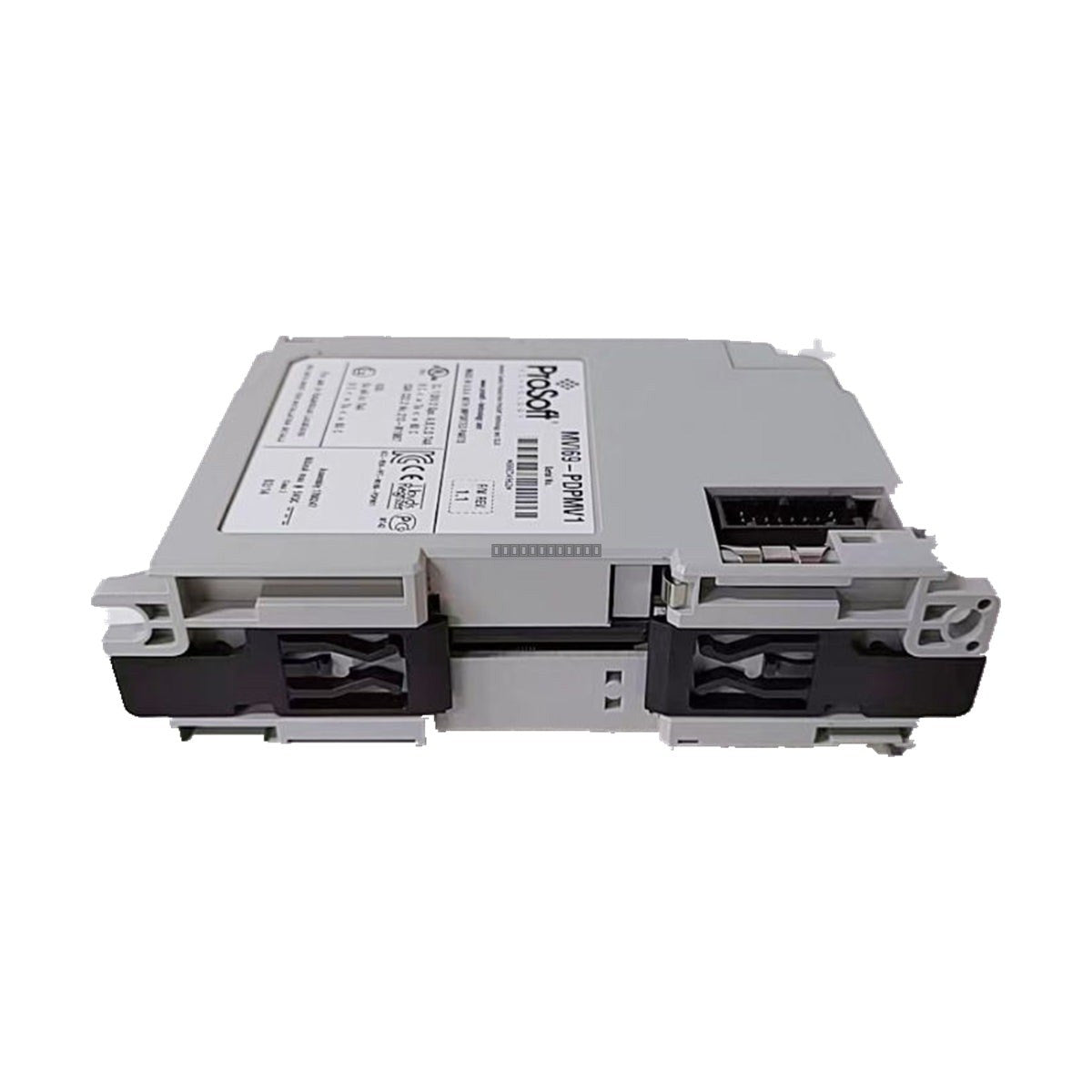

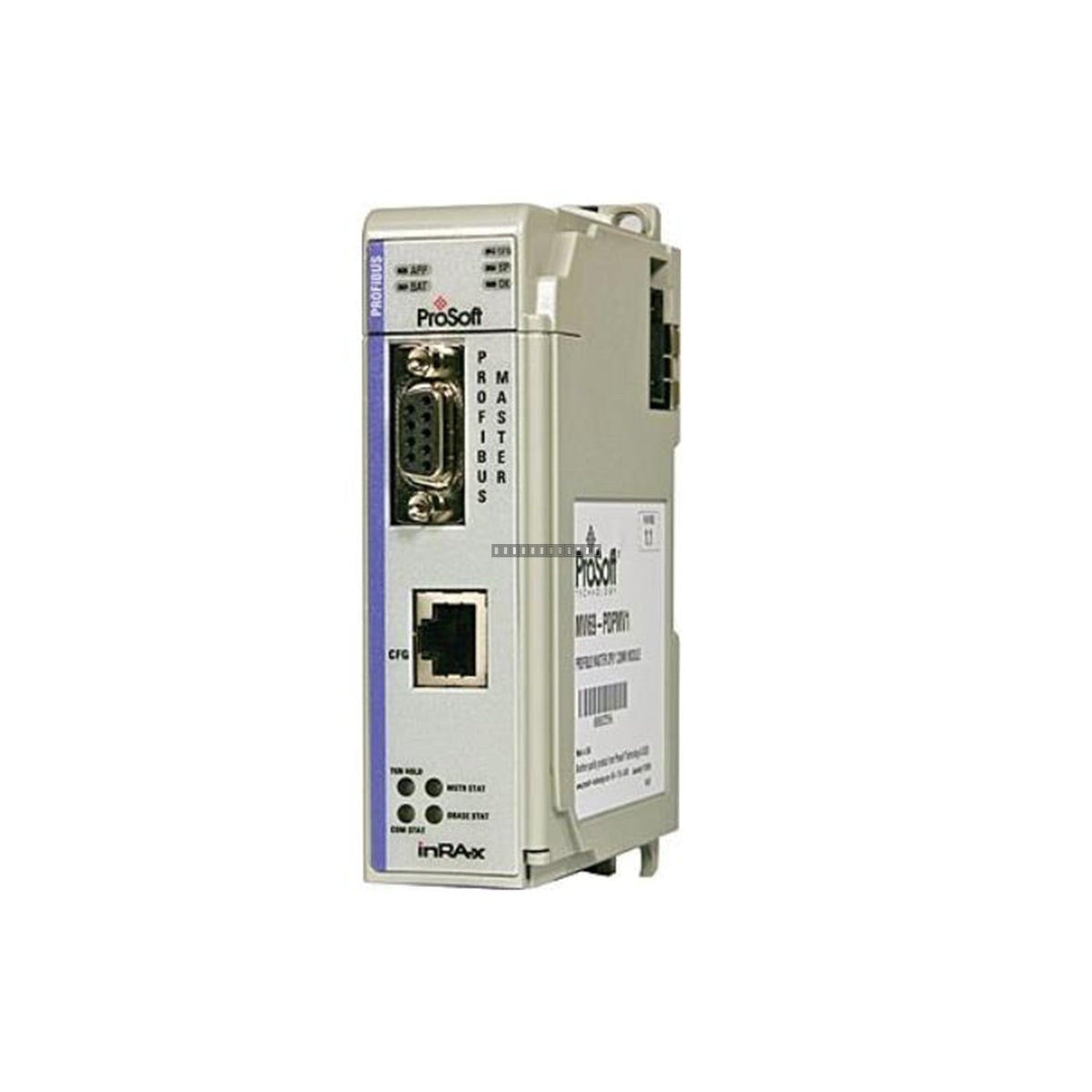

The ProSoft MVI69-PDPMV1 is a specialized communication module designed to provide PROFIBUS DPV1 Master connectivity for Rockwell Automation CompactLogix and MicroLogix 1769-platform processors. This interface module enables seamless data exchange between the processor backplane and a PROFIBUS network, supporting up to 125 slave devices.

Features

Integrated PROFIBUS DP-V1 Master functionality for high-speed network control.
Features one isolated DB-9F RS-485 port for reliable fieldbus communication.
Supports a maximum of 125 slave devices on the PROFIBUS network.
Designed specifically for the Allen-Bradley 1769 CompactLogix and MicroLogix backplane environments.
Provides comprehensive diagnostic data and status monitoring through the processor backplane.

Technical Specifications

Model	MVI69-PDPMV1
Manufacturer	ProSoft
Backplane Current	800 mA @ 5 VDC
Operating Temperature	0 degC to 60 degC (32 degF to 140 degF)
Storage Temperature	-40 degC to 85 degC (-40 degF to 185 degF)
Relative Humidity	5% to 95% (non-condensing)
Power Supply Distance Rating	2 (First 2 slots if used with 1769-L43/L45)

Installation Guidelines

Ensure the controller is powered down before installing or removing the MVI69-PDPMV1 module from the 1769 backplane.
Check the power supply distance rating requirements; the module should ideally be placed within the first two slots when used with specific CompactLogix processors to ensure adequate power distribution.
Use high-quality shielded PROFIBUS cable for the DB-9F RS-485 connection to minimize electromagnetic interference.
Maintain proper grounding practices for the control cabinet to protect against electrical noise and surge events.
Ensure adequate ventilation in the enclosure to keep the ambient temperature within the specified 0 to 60 degC range.

FAQ

What processors is the MVI69-PDPMV1 compatible with?
This module is engineered for use with the Allen-Bradley 1769 CompactLogix and MicroLogix series controllers.

How many slave devices can this module support?
The module supports up to 125 PROFIBUS slave devices on a single network segment.

Does this module support DPV1 communication?
Yes, the MVI69-PDPMV1 is fully compliant with PROFIBUS DP-V1 standards, allowing for both cyclic and acyclic data communication.
