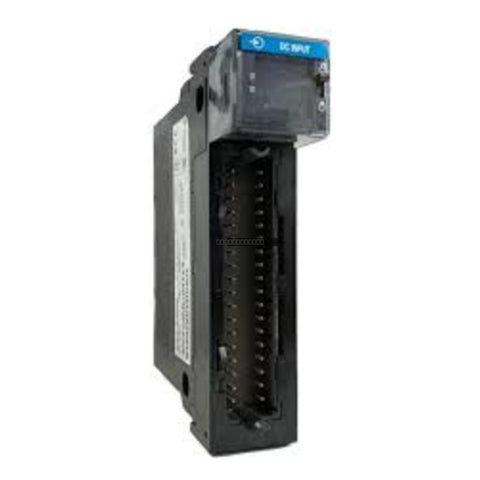

Schneider ASBDEP209 Modicon 800 Digital Input Module

Schneider Modicon 800 Series ASBDEP209 Digital Input Module

Disponibilidad: 0 Quedan en stock

Description The Schneider Electric ASBDEP209 is a high-performance digital input module designed for the Modicon 800 Series automation environment. This...

Código: ASBDEP209

Manufacturer: Schneider
Product No.: ASBDEP209
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1120g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Schneider Electric ASBDEP209 is a high-performance digital input module designed for the Modicon 800 Series automation environment. This unit provides 16 discrete input channels, specifically engineered to interface with field devices such as limit switches, proximity sensors, and relay contacts. By utilizing integrated RC filtering, the module effectively suppresses contact bounce and high-frequency electrical noise, ensuring reliable signal processing in industrial environments prone to electromagnetic interference.

Features

16-channel discrete input density for efficient cabinet space utilization.
Optical isolation between field input loops and the controller backplane to protect sensitive processor logic.
Robust RC filtering on every input channel to mitigate electrical transients and contact chatter.
Front-panel LED indicators providing real-time visual status monitoring of each channel.
Removable screw terminal blocks to simplify field wiring and module replacement procedures.
Designed for operation in demanding industrial conditions, including power generation and chemical processing.

Applications

This module is suitable for a wide range of industrial control tasks, including:

Monitoring of discrete field contact states in automated production lines.
Interface for safety-critical proximity interlocks and limit switches.
Status feedback collection in power utility and mining control systems.
General discrete I/O expansion for Modicon 800 Series rack-based architectures.

Technical Specifications

Model	ASBDEP209
Brand	Schneider Electric
Input Channels	16
Nominal Input Voltage	24 VDC
Input Voltage Range	20 to 30 VDC
State 1 Threshold	> 15 VDC
State 0 Threshold	< 5 VDC
Input Impedance	3.0 kOhm nominal
Isolation Rating	1500 VAC (Channel-to-Backplane)
Power Consumption	250 mA at 5 VDC
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5 to 95% non-condensing

Installation Guidelines

Ensure power is disconnected from the rack backplane before inserting or removing the module to prevent electrical arcing or damage to the bus pins.
Verify that all field wiring is properly routed and secured within the removable terminal block to avoid intermittent connections.
Maintain proper grounding of the control cabinet to minimize the risk of ground loops and potential interference.
Ensure adequate ventilation around the rack assembly to keep ambient temperatures within the specified 0 to 60 deg C range.
Use shielded cabling for field inputs in high-EMI environments and ensure shields are terminated according to site-specific grounding standards.

FAQ

What is the primary function of the ASBDEP209 module?
The ASBDEP209 is a 16-channel digital input module designed to convert discrete field signals into logic-level inputs for the Modicon 800 Series controller.

Does this module require external power for the inputs?
Yes, the module is designed for a nominal 24 VDC input range (20-30 VDC) to excite the field devices.

Is the terminal block included with the module?
Yes, the module utilizes a removable mechanical screw terminal block assembly for secure and convenient field wiring.
