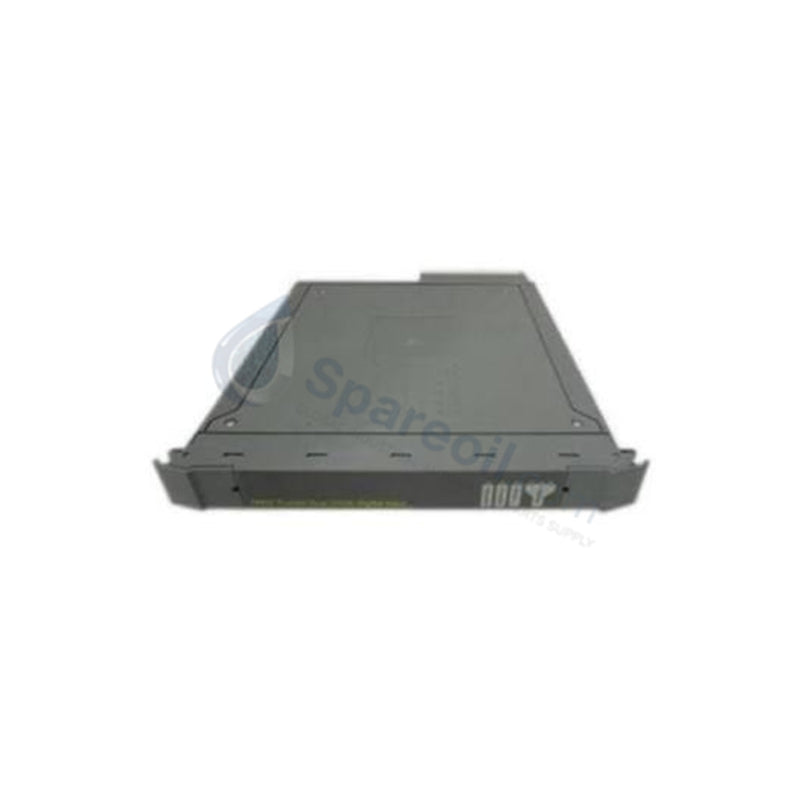

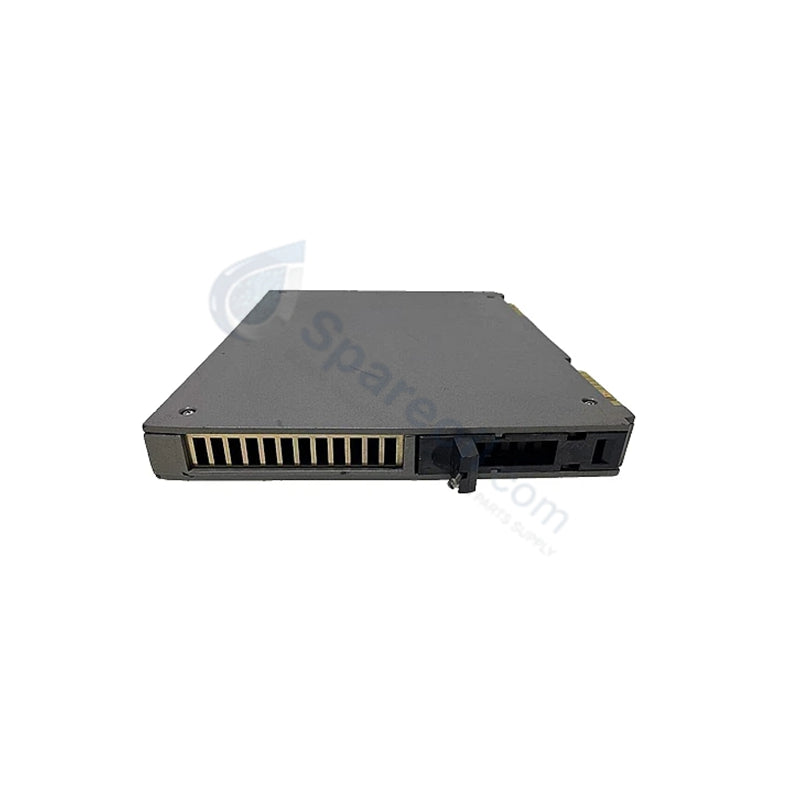

ICS Triplex T9193 Digital Input Module

The ICS Triplex T9193, also cataloged as the T9193 Digital Input Module, operates as a dedicated hardware component for high-integrity signal acquisition within Trusted safety system platforms.

Hardware Specifications

Parameter Specification
Model T9193
Brand ICS Triplex
Origin China
Weight 0.8 kg
Dimensions 142 x 92 x 54 mm
Operating Temp -40 to +80 deg C
Power Consumption 3.6 W
Channels 32 isolated digital inputs
Safety Rating SIL 3 certified

High-Reliability Safety Control and TMR Architecture

The T9193 module utilizes a triple modular redundancy (TMR) 2oo3 architecture to ensure continuous, fault-tolerant digital signal processing. By running three independent input channels in parallel and performing a majority vote on the data, the system masks single-point hardware faults, preventing spurious trips or loss of signal integrity. The module provides galvanic isolation rated at 3000 VAC, which serves as a critical barrier against electrical interference in industrial environments. Advanced onboard diagnostics facilitate fail-safe state execution, with fault detection times maintained at or below 5 ms, ensuring that safety-critical interlocks remain within operational safety parameters.

Frequently Asked Questions

Q: Does the T9193 support hot-swapping for module replacement?

A: Yes, the T9193 is designed to support hot-swapping. Its integration within the Trusted TMR architecture allows for the extraction and replacement of a failed module without interrupting the safety system's monitoring of active field inputs.

Q: How does the module handle signal debounce and Sequence of Events (SOE) logging?

A: The T9193 utilizes high-speed internal logic to provide an SOE resolution of 1 ms. This ensures that rapid state changes from field devices are captured and timestamped accurately, supporting precise post-event diagnostics without the need for additional external hardware.

Field Installation Guidelines

  1. Ensure the module is seated fully into the chassis slot. Align the guide rails with the backplane connectors to prevent pin misalignment during insertion.
  2. Secure the module using the front-panel locking screws to ensure high-vibration stability and proper grounding to the chassis frame.
  3. Terminate all field inputs using shielded cabling to maintain the 3000 VAC isolation barrier. Ensure cable shields are bonded to the designated cabinet earth bar.
  4. Verify that the dual redundant 24 VDC power supplies are correctly terminated at the backplane before applying power to the module.
  5. Confirm that the module front-panel status LEDs indicate normal operation and absence of faults before initiating the system database download.
