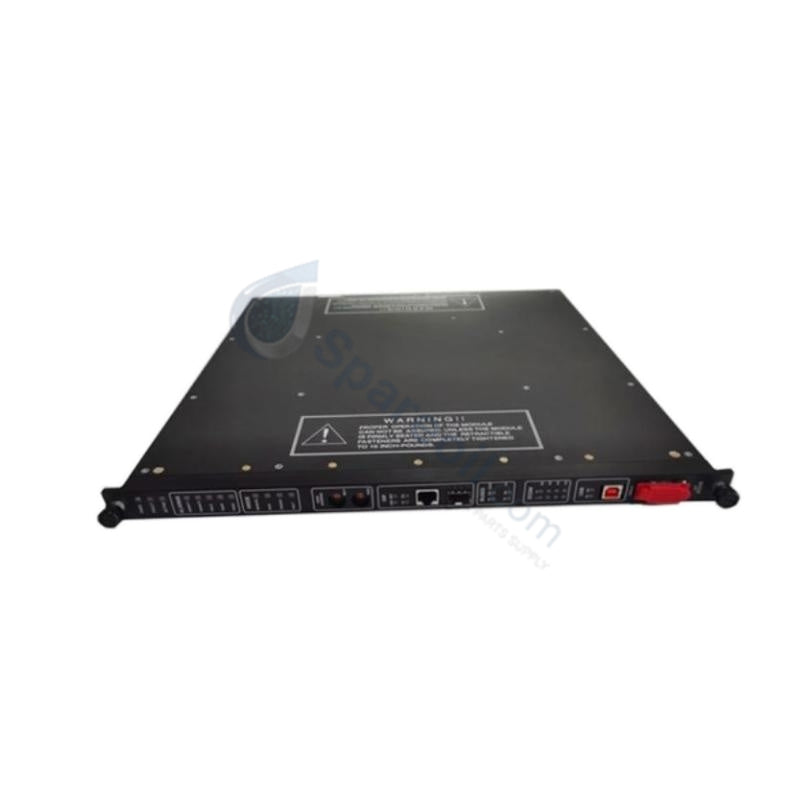

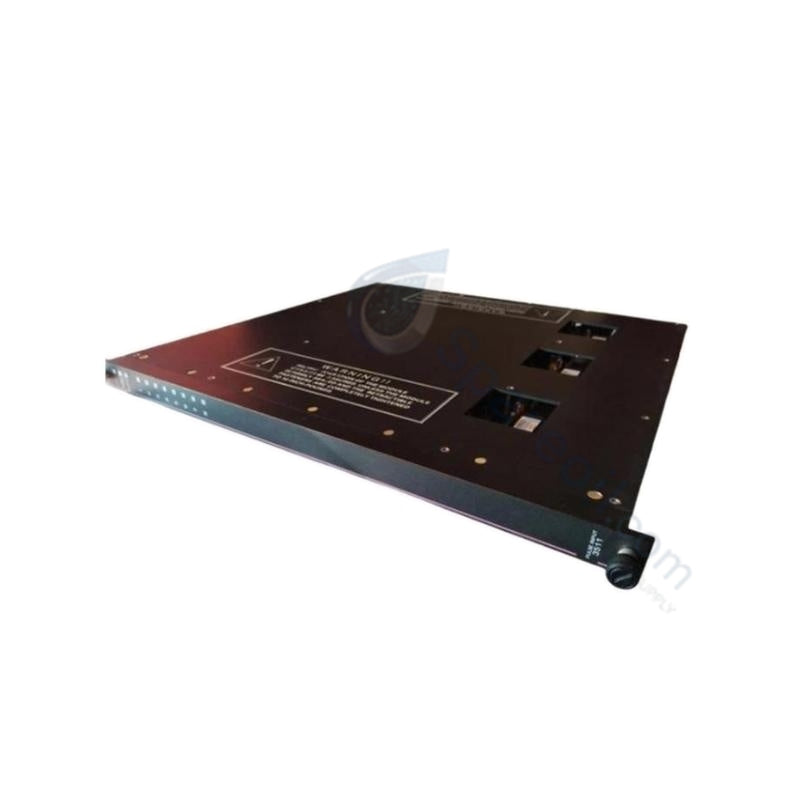

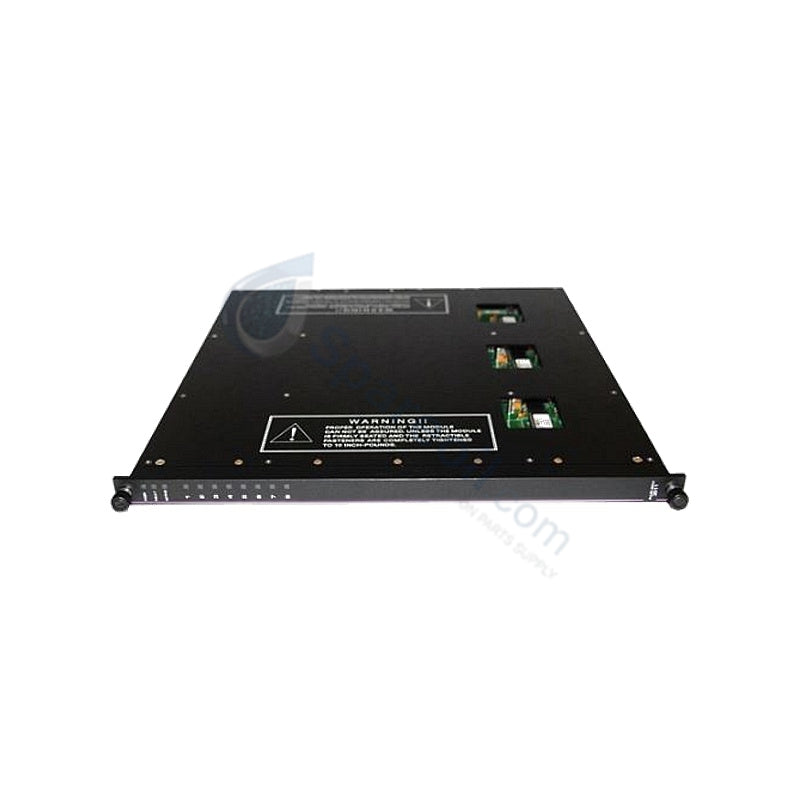

Triconex 3511 Tricon 3000 Pulse Input Module

Triconex 3511 Tricon 3000 Pulse Input Module

Disponibilidad: 10 Quedan en stock

TRICONEX 3511 Tricon 3000 Series Pulse Input Modules The TRICONEX 3511, also cataloged as the 3511 Pulse Input Module, operates...

Código: 3511

Manufacturer: Triconex
Product No.: 3511
Product Type: Pulse Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 3030g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

TRICONEX 3511 Tricon 3000 Series Pulse Input Modules

The TRICONEX 3511, also cataloged as the 3511 Pulse Input Module, operates as a dedicated hardware component for pulse signal processing within Tricon 3000 Series Safety Instrumented System (SIS) platforms.

Hardware Specifications

Parameter	Specification
Model	3511
Brand	Triconex (Schneider Electric)
Origin	USA
Weight	3.03 kg net weight (4.00 kg shipping weight)
Dimensions	177.8 mm x 101.6 mm x 228.6 mm
Operating Temp	-20 to +60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	~6 W typical @ 5 VDC
Input Channels	8 isolated, non-commoned pulse inputs
Resolution	16 bits
Accuracy	+/-0.01% within 1000 Hz to 20000 Hz range
Signal Isolation	1500 VDC channel-to-backplane; 2000 VDC channel-to-channel
Color Code	Light Purple
Safety Certification	IEC 61508 SIL3, IEC 61511, TÜV, UL Class I Div 2, ATEX Zone 2

Safety Control (SIS) Technical Characteristics

The module executes high-speed frequency processing through a Triple Modular Redundancy (TMR) 2oo3 architecture, employing three fully isolated internal logic legs to evaluate incoming pulse streams simultaneously. Each leg processes the signal independently before hardware-based voting logic determines the final state, ensuring continuous fail-safe state execution without dropping active processes. Galvanic isolation rated up to 2000 VDC between individual channels prevents electrical cross-talk and transient noise from damaging the internal backplane components. The integration of 16-bit processing counters ensures accuracy limits of +/-0.01% under high-frequency conditions up to 20000 Hz, satisfying strict SIL3 safety loop constraints.

Frequently Asked Questions

Q: How does the module maintain synchronization between the three TMR logic legs during hot-swap execution?

A: When a new module enters the active chassis slot, the system executes an automated background synchronization routine via the TriBus backplane. The active legs copy their current accumulator values, historical pulse counts, and configuration matrices to the replacement hardware within a single scan cycle, preventing trip validation failures.

Q: What structural failure occurs within the input metrics if a field sensor generates a pulse frequency exceeding 20000 Hz?

A: Frequency inputs surpassing the hardware threshold cause the 16-bit register counters to flag an over-range diagnostic condition. The internal leg logic immediately registers an out-of-bounds status, defaults the affected channel to its designated fail-safe value, and transmits a diagnostic fault code to the TriStation monitoring system while keeping adjacent channels online.

Field Installation Guidelines

Shielding Ground Interface: Terminate all coaxial or twisted-pair pulse transmitter shields to the designated enclosure earth ground rail, ensuring the connection remains isolated from active neutral current paths.
Cable Separation: Route low-voltage pulse input conductors through separate, dedicated wire ways, maintaining a physical clearance minimum of 30 cm from high-power AC lines to prevent inductive noise coupling.
Chassis Alignment: Align the module side guides perfectly within the single-slot subrack tracks before pushing inward to ensure clean engagement of the backplane connectors and avoid pin damage.
