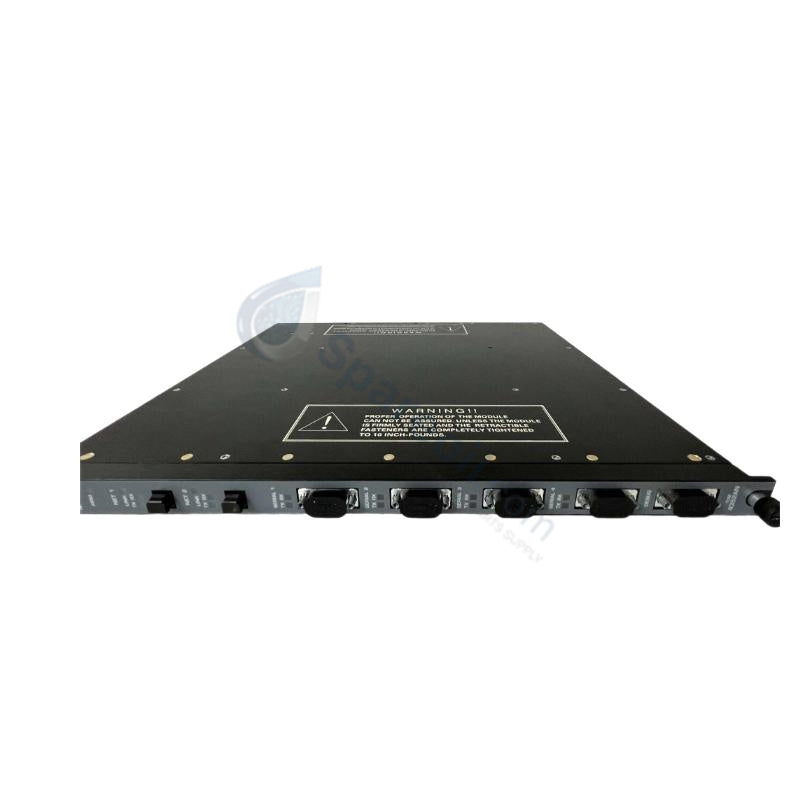

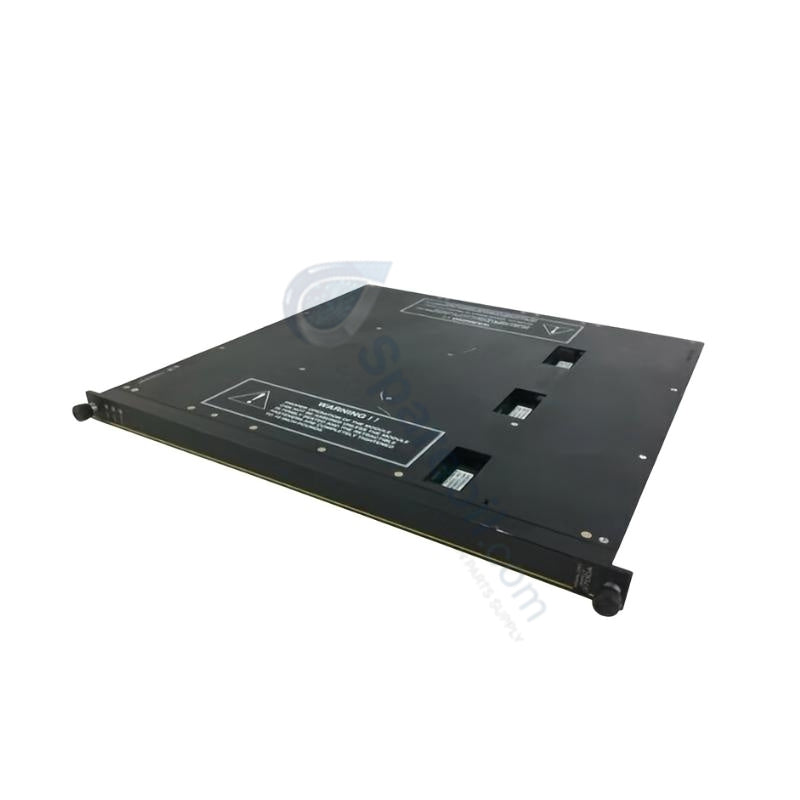

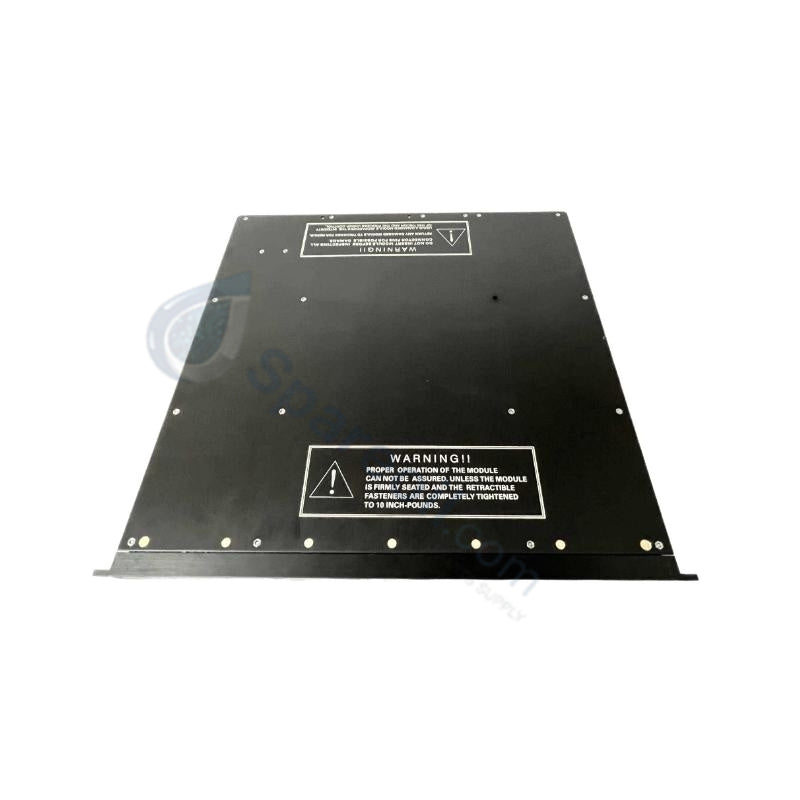

Triconex 3700A Tricon 3000 Series Module
The Triconex 3700A, also cataloged as the 3700A Digital Input Module, operates as a dedicated hardware component for discrete signal processing within Tricon 3000 Series SIS platforms. The hardware routes concurrent state transitions from dry contact configurations directly to the redundant internal processor backplane to compute system-wide interlock conditions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3700A |
| Brand | Triconex (Schneider Electric) |
| Origin | United States |
| Weight | 1.5 kg |
| Dimensions | 177.8 mm x 101.6 mm x 228.6 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | Not specified / Backplane distributed |
| Input Channels | 32 isolated digital inputs |
| Signal Type | Dry contact or 24 VDC logic inputs |
| Input Voltage Range | 18-32 VDC |
| Input Current | 6 mA per channel |
| Safety Integrity Level | SIL3 (IEC 61508 / IEC 61511) |
| Isolation | 1500 VAC galvanic isolation between channels and backplane |
| Diagnostics | Continuous per-channel monitoring, LED indicators, fault detection |
| Storage Temp | -40 to +85 deg C |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2 |
Triple Modular Redundancy and Safety Integrity
The processing sub-assembly utilizes a triple modular redundancy (TMR) 2oo3 architecture consisting of three isolated hardware legs running parallel safety logic paths. Internal signal verification mechanisms depend on 1500 VAC galvanic isolation to separate the input channel logic from the main controller backplane bus. If a hardware fault occurs, the internal voter logic identifies the discrepant leg and maintains fail-safe state execution across the operational loops. Automated hardware diagnostics flag wiring faults and open-loop failures to uphold systemic validation parameters under IEC 61508 SIL3 limits.
Frequently Asked Questions
Q: What are the online hot-swap constraints when extracting this digital input module?
A: The module supports online hot-swap capabilities inside the designated rack allocation. Technicians can replace the unit while the backplane remains energized without stopping the system logic solver execution or causing process interruption on the remaining active modules.
Q: How does the channel isolation network respond to common-mode electrical noise across field loops?
A: The 1500 VAC galvanic isolation barrier actively mitigates electrical cross-talk and limits voltage transitions between the external field wiring terminals and the internal backplane architecture, maintaining signal clarity for the digital input logic.
Field Installation Guidelines
Align and insert the module vertically into the specific single-slot allocation of the Tricon 3000 Series SIS chassis. Verify full mechanical seating with the backplane pin assembly before engaging the front panel locking mechanisms. Connect field cabling using the corresponding termination baseplate, ensuring all conductors comply with 12-22 AWG wire size specifications. Ground the overall cable shielding loops directly to a low-impedance master instrument ground bus to minimize electromagnetic interference (EMI). Route all discrete input control cables through dedicated wireways separated from high-current AC power cables.
