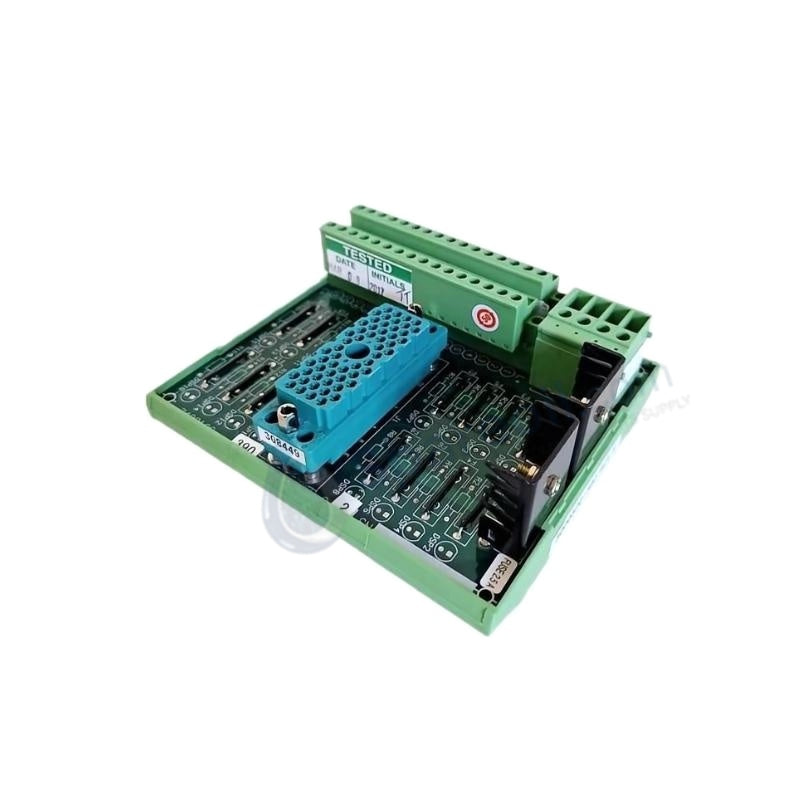

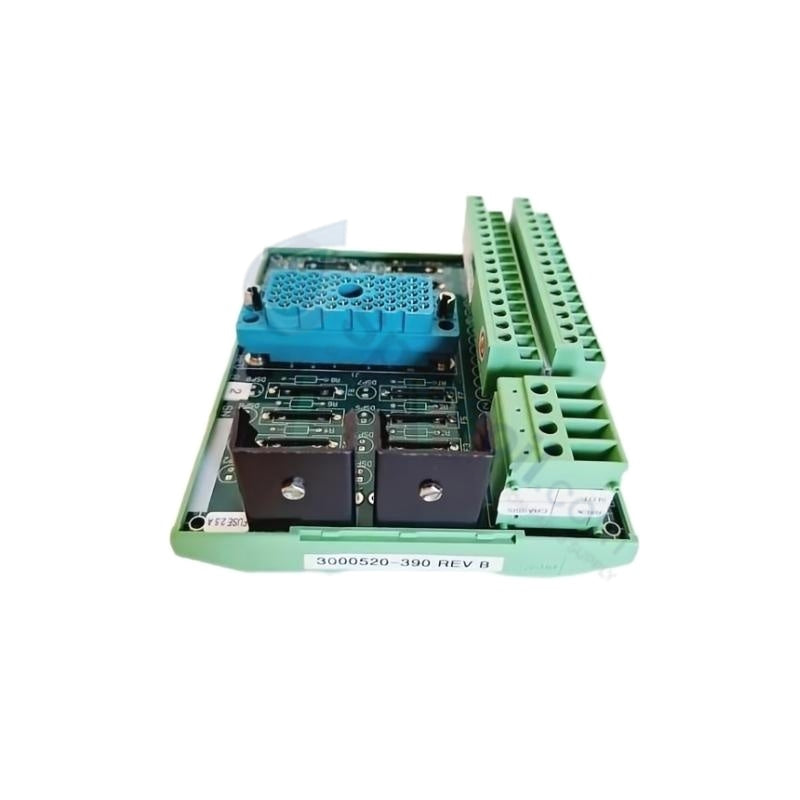

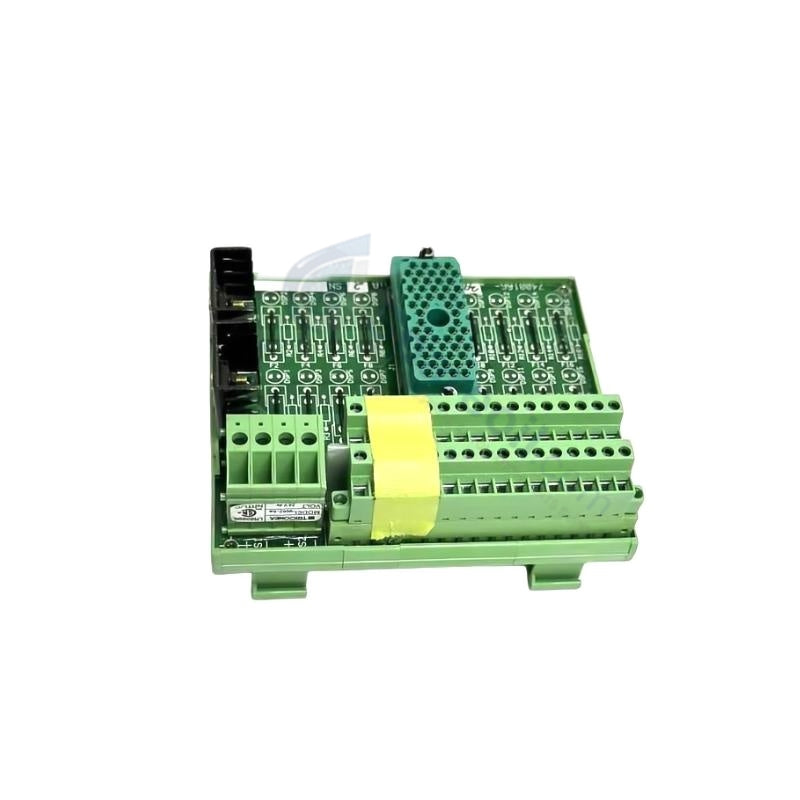

Triconex 9662-610 Digital Output Termination Board

The Triconex 9662-610, also cataloged as the 9662-610 Digital Output Module, operates as a dedicated hardware component for deterministic, fault-tolerant discrete output signal routing within Tricon V9/V10 Series SIS racks. The hardware processes output instructions from the controller backplane to drive external field devices, including solenoids, relays, alarms, and trip circuits.

Hardware Specifications

Parameter	Specification
Model	9662-610
Brand	Weidmuller / Triconex (Schneider Electric)
Origin	China
Weight	1.5 - 2.0 kg (Shipping Weight: 1 kg)
Dimensions	177.8 mm x 101.6 mm x 228.6 mm
Operating Temp	-20 to +60 deg C
Power Consumption	~15 W typical
Output Channels	32 isolated digital outputs
Output Voltage	24 VDC nominal
Output Current	Up to 0.5 A per channel
Safety Integrity Level	SIL3 (IEC 61508 / IEC 61511)
Galvanic Isolation	1500 VAC between backplane and field wiring
Diagnostics	Continuous self-test, LED indicators per channel
Termination Style	Cage-clamp screw terminals, accepts 12-22 AWG wire

Triple Modular Redundancy and Fail-Safe Execution

The module integration uses a triple modular redundancy (TMR) 2oo3 architecture to execute real-time hardware voting logic directly on the discrete control paths. 1500 VAC galvanic isolation isolates the internal backplane logic from external field loop wiring hazards. Continuous background self-tests and per-channel diagnostic arrays evaluate circuit continuity and output state alignment. Upon detection of an internal component anomaly, the redundancy architecture preserves the safe state without interrupting active command output to the 32 discrete loops.

Frequently Asked Questions

Q: What are the online hot-swap constraints when replacing this module during an active process?

A: The hardware architecture supports online hot-swap operations, allowing full module extraction and insertion without shutting down the system or interrupting the remaining logic solver execution. Field technicians must monitor system status during the swap to prevent spurious trips.

Q: How does the channel isolation design handle high-voltage transients on the field side?

A: The design provides 1500 VAC galvanic isolation between the field-side wiring terminals and the backplane logic, stopping transient overvoltages from propagating into the main controller electronics.

Field Installation Guidelines

Mount the unit securely within the compatible Tricon V9/V10 Series SIS rack slot. Verify that the mechanical alignment keys align correctly with the backplane connectors before fully inserting the assembly. Terminate all field wiring loops at the cage-clamp screw terminals using wire gauges between 12 and 22 AWG. Implement dedicated instrument grounding paths and apply continuous shielding to all external digital output cable runs to mitigate electromagnetic interference (EMI). Isolate low-voltage DC discrete lines from AC power and high-voltage motor control cabling inside the enclosure.
