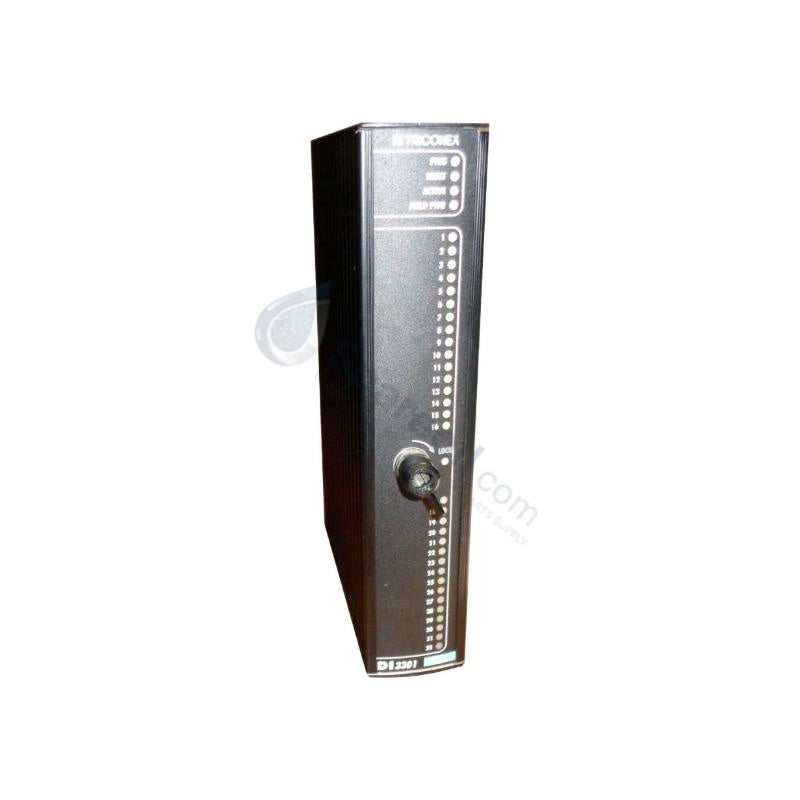

DI3301 Triconex Digital Input Module

Triconex DI3301 Tricon 3000 Series Digital Input Modules

Triconex DI3301 Tricon 3000 Series Digital Input Modules

Disponibilidad: 10 Quedan en stock

Triconex DI3301 Digital Input Module The Triconex DI3301, also cataloged as the DI3301 Digital Input Module, operates as a dedicated...

Código: DI3301

Manufacturer: Triconex
Product No.: DI3301
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1420g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

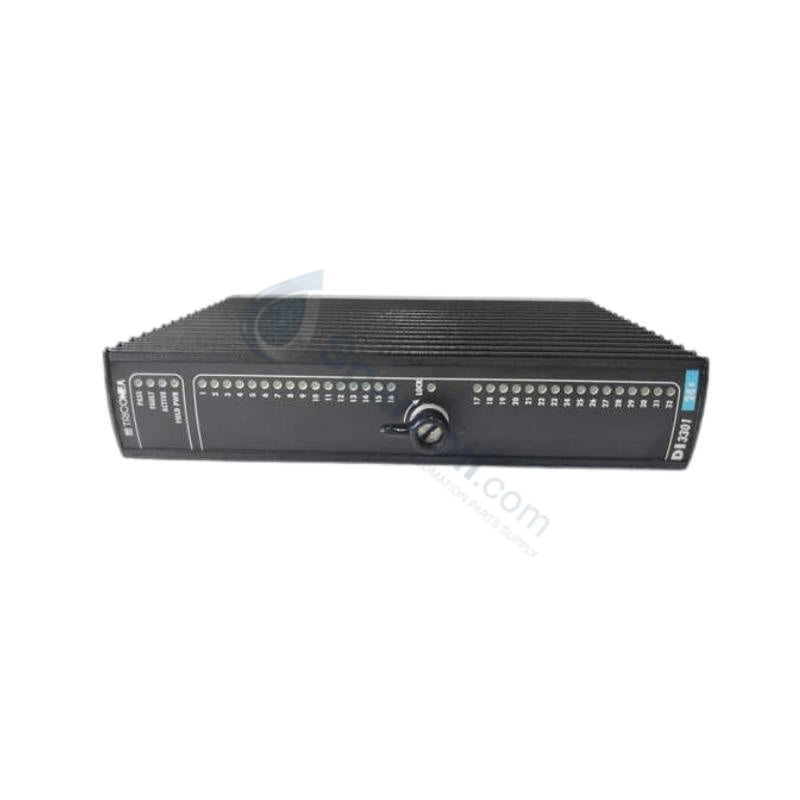

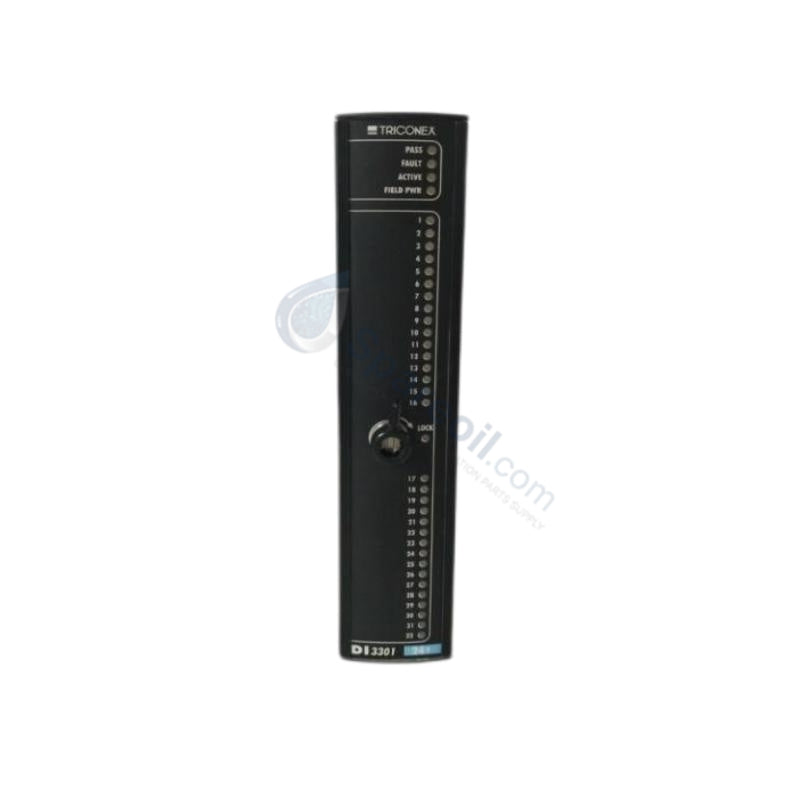

Triconex DI3301 Digital Input Module

The Triconex DI3301, also cataloged as the DI3301 Digital Input Module, operates as a dedicated hardware component for discrete signal processing within Tricon 3000 Series SIS racks. The assembly acquires raw discrete state transitions from dry contact configurations and routes the digitized logic levels directly to the triple-redundant controller backplane for safety loop computation.

Hardware Specifications

Parameter	Specification
Model	DI3301
Brand	Triconex (Schneider Electric)
Origin	United States
Weight	1.42 kg
Dimensions	177.8 mm x 101.6 mm x 228.6 mm
Operating Temp	-20 to +60 deg C
Power Consumption	Backplane distributed / ~6 mA per channel draw
Input Channels	32 isolated digital inputs
Signal Type	Dry contact or 24 VDC logic inputs
Input Voltage Range	18-32 VDC
Safety Integrity Level	SIL3 (IEC 61508 / IEC 61511)
Isolation	1500 VAC galvanic isolation between channels and backplane
Diagnostics	Continuous per-channel monitoring, LED indicators, fault detection
Storage Temp	-40 to +85 deg C
Humidity Range	5% to 95% non-condensing
Certifications	IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy and Safety Integrity

The computing sub-assembly incorporates a fault-tolerant interface architecture compliant with triple modular redundancy (TMR) 2oo3 systems. Complete 1500 VAC galvanic isolation divides the 32 input channel circuits from the primary controller backplane bus to suppress transient electrical cross-talk and ground loop interference. Built-in diagnostic arrays and dedicated external LED indicators continuously evaluate circuit continuity, reporting field deviations directly to the core processors to enforce fail-safe state execution boundaries under strict IEC 61508 SIL3 safety parameters.

Frequently Asked Questions

Q: What are the physical operational limitations during a hot-swap procedure?

A: The module supports online hot-swap operations within a single rack slot allocation. The replacement procedure must execute while the backplane remains energized, permitting adjacent operational channels to maintain safety logic processing without initiating a system-wide trip loop.

Q: How does the channel isolation network respond to inductive voltage spikes from field wiring?

A: The input architecture employs a 1500 VAC galvanic isolation barrier between the external field terminals and the internal logic arrays. This physical separation stops transient overvoltages and common-mode noise from propagating into the main controller backplane matrix.

Field Installation Guidelines

Mount the module vertically inside the designated slot position of the Tricon 3000 Series SIS rack. Confirm the rear alignment tabs seat cleanly into the backplane connector matrix before engaging the faceplate locking screws. Field personnel must terminate all external dry contact or 24 VDC logic lines at the appropriate termination baseplate. Apply continuous cable shielding and low-impedance grounding across all discrete paths to minimize electromagnetic interference (EMI). Maintain strict physical separation between low-power signaling conductors and high-voltage AC distribution circuits inside the enclosure.
