AAI141-S00 YOKOGAWA Analog Input Module

YOKOGAWA AAI141-S00 CENTUM VP Analog Input Module

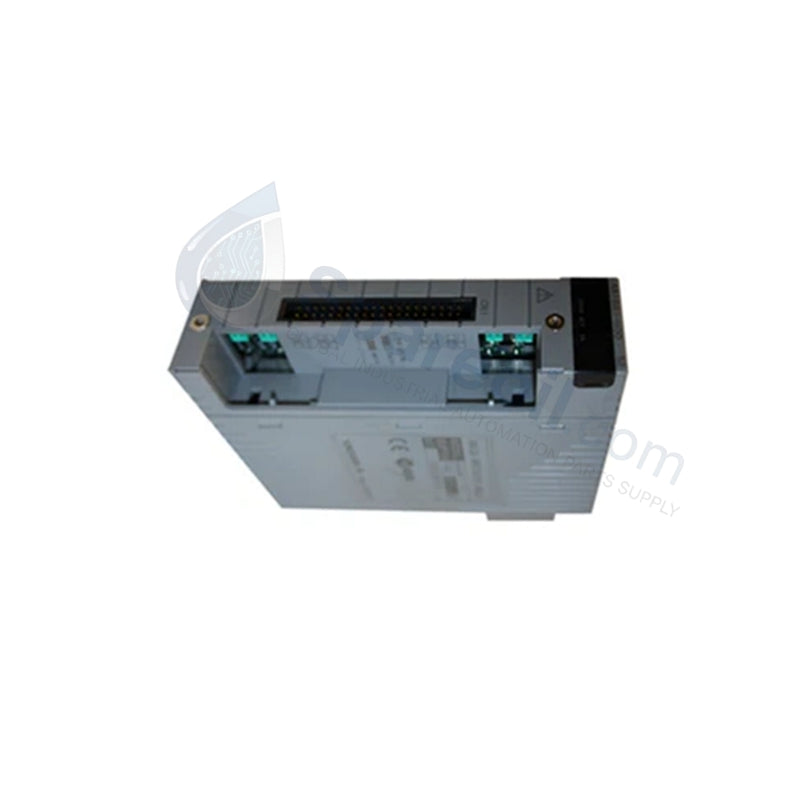

YOKOGAWA AAI141-S00 CENTUM VP Analog Input Module

Disponibilidad: 99 Quedan en stock

YOKOGAWA AAI141-S00 Analog Input Module The YOKOGAWA AAI141-S00, also cataloged as the AAI141 Analog Input Module, operates as a dedicated...

Código: AAI141-S00

Manufacturer: Yokogawa
Product No.: AAI141-S00
Product Type: Analog Input Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

YOKOGAWA AAI141-S00 Analog Input Module

The YOKOGAWA AAI141-S00, also cataloged as the AAI141 Analog Input Module, operates as a dedicated hardware component for high-density analog signal acquisition within CENTUM VP and CENTUM CS distributed control system platforms.

Hardware Specifications

Parameter	Specification
Model	AAI141-S00
Brand	YOKOGAWA
Origin	Japan
Weight	0.2 kg to 0.5 kg
Dimensions	3.4 cm x 10.8 cm x 13 cm
Operating Temp	-10 deg C to +55 deg C
Power Consumption	2.5 W
Input Channels	16 (Non-isolated)
Input Signal Range	4-20 mA DC or 1-5 VDC
Sampling Rate	100 samples / sec

Signal Acquisition and System Architecture

The AAI141-S00 provides a high-density solution for processing analog process variables. Unlike isolated modules, this unit utilizes a common-ground architecture across its 16 channels. When configuring this module, technicians must ensure that the field transmitters are compatible with a non-isolated input structure, typically requiring external loop power supplies or ground-referenced sensors to maintain signal loop integrity. The internal 12-bit analog-to-digital converter provides a 10 ms per-channel scan cycle, ensuring deterministic updates for control loops.

Frequently Asked Questions

Q: Why is the lack of channel-to-channel isolation a design factor for the AAI141?

A: The non-isolated design is intended for applications where all field transmitters share a common reference point or are powered by a single, common loop power supply. Using non-isolated modules in systems with distributed, independent grounds can induce circulating currents (ground loops), which may manifest as measurement noise or offset errors.

Q: Can this module handle both current and voltage inputs simultaneously?

A: The module supports both 4-20 mA and 1-5 VDC signals. However, configuration must be consistent with the hardware's impedance characteristics (250 Ohm input resistance for current loops). Always verify the specific terminal wiring and system configuration parameters before connecting sensors with different signal types.

Field Installation Guidelines

Grounding: Since channels share a common ground, it is critical to verify the potential difference between field device ground and cabinet ground. Ensure all loops reference the same potential to prevent damage to the input circuitry or measurement degradation.
Wiring: Use high-quality shielded twisted-pair cables. Given the non-isolated nature of the AAI141, the integrity of the reference ground is paramount; ensure the shield is terminated at a single, low-impedance ground point per segment.
Loading: The maximum allowable input current is limited to 24-27 mA. If a transmitter fault causes an output exceeding this limit, the internal shunt resistor or input protection circuit may be compromised; ensure that all loops are properly fused or current-limited at the field side.
