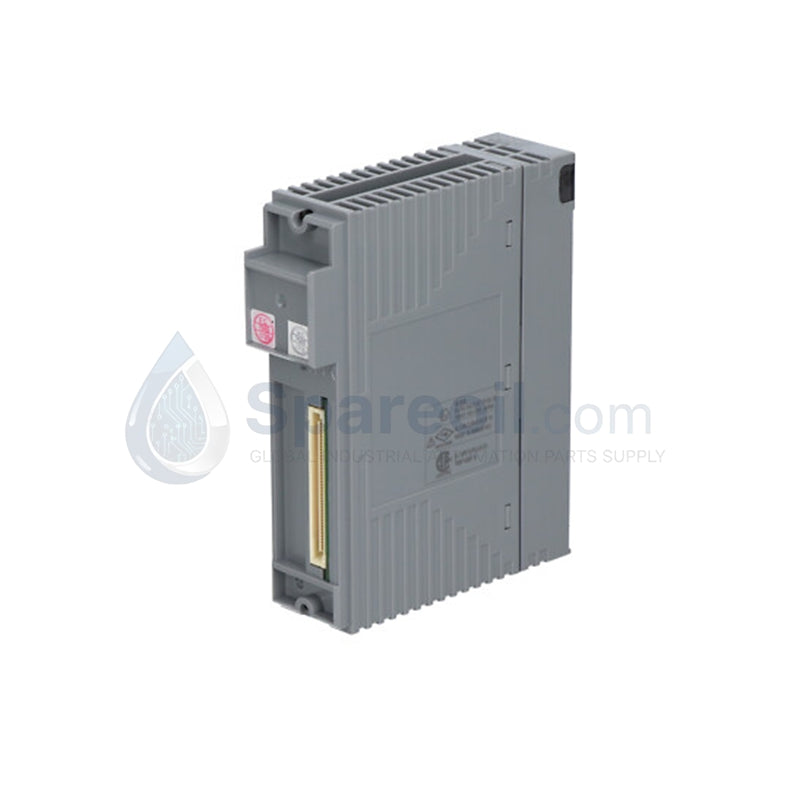

Yokogawa AAI143-H03 FIO 16-Channel HART Analog Input Module

Yokogawa AAI143-H03 FIO 16-Channel HART Analog Input Module

Disponibilidad: 99 Quedan en stock

Yokogawa AAI143-H03 FIO Series Analog Input Module The Yokogawa AAI143-H03, also cataloged as the AAI143 Analog Input Module, operates as...

Código: AAI143-H03

Manufacturer: Yokogawa
Product No.: AAI143-H03
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Yokogawa AAI143-H03 FIO Series Analog Input Module

The Yokogawa AAI143-H03, also cataloged as the AAI143 Analog Input Module, operates as a dedicated hardware component for 4-20 mA loop signal acquisition within CENTUM VP/CS distributed control systems. This 16-channel hardware subassembly interfaces directly with external process transmitters to convert analog loop currents into localized digital registers. The module maintains continuous parameter synchronization with the central controller while providing physical loop isolation across all field terminal pathways.

Hardware Specifications

Parameter	Specification
Model	AAI143-H03
Brand	Yokogawa Electric Corporation
Origin	Japan
Weight	0.3 kg
Dimensions	130 x 127.2 x 32.8 mm
Operating Temp	-20 to +70 deg C
Power Consumption	~350 mA at 5 V DC
Input Channels	16 isolated current inputs
Input Signal Type	4 to 20 mA DC
Allowable Input Current	24 mA DC maximum
Accuracy	+/- 0.1% FS typical (+/- 16 uA)
Resolution	12 bits
Data Update Period	10 ms
Isolation Voltage	1500 V AC (Signal-to-system, 1 min); 200 V AC between channels
Input Resistance (Power ON)	270 Ohm (at 20 mA) to 350 Ohm (at 4 mA)
Input Resistance (Power OFF)	500 kOhm or larger
External Connection	KS Cable Interface Adapter (For AEA4D Terminal Board via ATK4A-00)
Environmental Protection	ISA Standard G3 conformal coating

Process Control & DCS Instrumentation Technical Attributes

The electrical topology of this module integrates a dedicated 4-20 mA HART loop protocol layer, which passes high-frequency digital instrument diagnostics concurrently over the base analog current signals. Individual input circuits display a dynamic input resistance range from 270 Ohm under full loop current down to 350 Ohm during low-scale conditions, while a power-off state opens the path to a minimum of 500 kOhm. Galvanic channel-to-channel isolation barriers rated at 200 V AC eliminate localized ground loops across multi-transmitter networks. System backplane protection is maintained by an optical isolation assembly designed to withstand voltages up to 1500 V AC for 1 minute. The H03 hardware designation indicates factory-applied ISA Standard G3 conformal coating, which shields internal component matrices against corrosive atmospheres over an extended temperature envelope.

Frequently Asked Questions

Q: How does the module react to an external transmitter line breakage or sensor short-circuit?

A: The input circuit monitors the loop current continuously. If a field line break occurs and the current drops below the lower threshold, or if a short drives the current beyond the 24 mA maximum limit, the internal diagnostics set an I/O error flag for that specific channel on the backplane bus.

Q: What precautions must be followed regarding the internal current loops when the module loses power?

A: When power is lost, the internal input resistance shifts automatically to 500 kOhm or higher. This shift stops current flow through the specific loop, requiring upstream field instruments or power distribution panels to handle the resulting open-circuit condition safely.

Field Installation Guidelines

Backplane Insertion: Align the module chassis with the target FIO baseplate slot guides. Push the hardware component firmly until the rear connector blocks interface completely with the active backplane, then secure the integrated mechanical locking clips.
Interface Adaption: Mount the ATK4A-00 KS cable interface adapter directly to the front connector header of the module. Tighten all retention screws to prevent contact resistance variations caused by field vibration.
Shielding Termination: Run all 4-20 mA field signal wires through separate low-voltage instrument ducts. Terminate the outer cable shields directly at the dedicated cabinet earth ground bar to preserve the 1500 V AC isolation barrier boundary.
Thermal Monitoring: Verify that the enclosure ventilation design maintains ambient interior temperatures within the -20 to +70 deg C operating limits, keeping the module surface free from dust accumulation.
