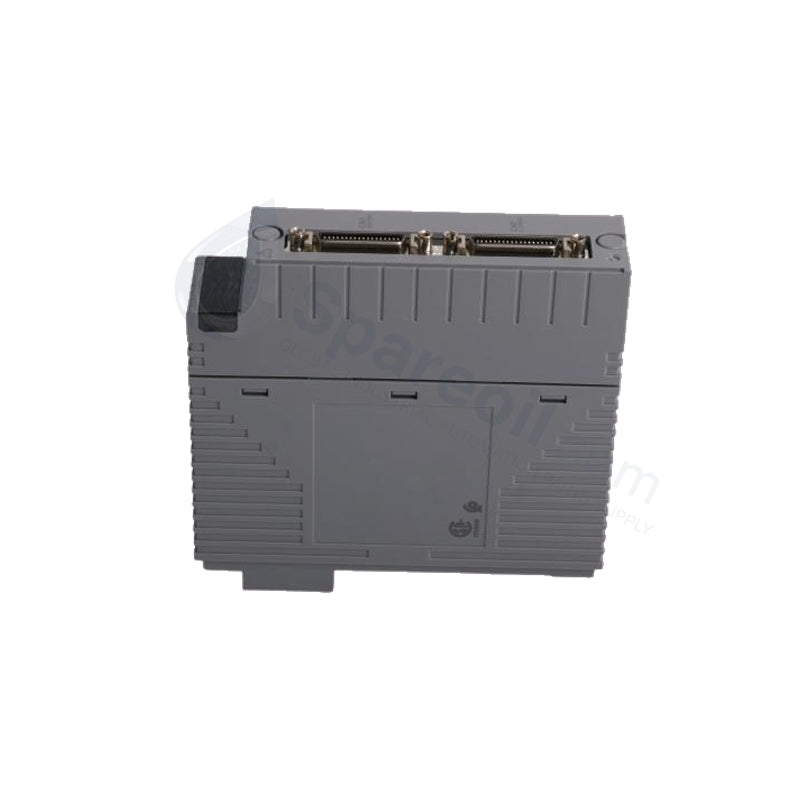

YOKOGAWA AAI543-S50 CENTUM VP Analog Output Module

YOKOGAWA AAI543-S50 CENTUM VP Analog Output Module

Disponibilidad: 10 Quedan en stock

YOKOGAWA AAI543-S50 Analog Output Module Configured for precision signal conversion in CENTUM VP DCS platforms, the YOKOGAWA AAI543-S50 (AAI543 Analog...

Código: AAI543-S50

Manufacturer: Yokogawa
Product No.: AAI543-S50
Product Type: Analog Output Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

YOKOGAWA AAI543-S50 Analog Output Module

Configured for precision signal conversion in CENTUM VP DCS platforms, the YOKOGAWA AAI543-S50 (AAI543 Analog Output Module) provides direct physical/electrical execution of 16-channel 4-20 mA current output control.

Suffix Breakdown & Model Matrix

AAI543: Base model identifier for 16-channel isolated analog current output functionality.
-S: Standard hardware revision type.
5: Denotes standard switch-over response time (<= 100 ms) in dual-redundant configurations.
0: Basic type code, indicating standard performance specifications without explosion-proof rating.

Hardware Specifications

Parameter	Specification
Model	AAI543-S50
Brand	YOKOGAWA
Origin	Japan
Weight	0.4 kg
Dimensions	120 × 90 × 40 mm
Operating Temp	0 deg C to +60 deg C
Power Consumption	5 V DC, 230 mA; 24 V DC, 540 mA
Output Channels	16 (Isolated)
Signal Range	4-20 mA DC
Load Resistance	0-750 Ohm
Response Time	<= 100 ms (Switch-over)

DCS Process Control & Isolation Attributes

The AAI543-S50 facilitates signal conversion from digital control registers to analog current loops through high-resolution DAC circuitry. To maintain process stability, the module employs channel-to-channel isolation rated at 1500 V AC, which prevents ground loop induction in long-distance field cabling. The architecture supports 4-20 mA HART loop protocol connectivity when integrated into compatible ER bus node units, enabling bidirectional communication with smart field instruments. The circuitry also utilizes localized cold junction compensation (CJC) logic for auxiliary temperature sensing, while ensuring signal drift remains within ±16 µA per 10 deg C change to sustain accuracy in fluctuating industrial environments.

Frequently Asked Questions

Q: Does this module support redundant operation?

A: Yes, the AAI543-S50 supports dual-redundant configurations. The S5 suffix indicates a standard switch-over response time of <= 100 ms during a module failover event.

Q: Is this module compatible with SIL3 safety-instrumented systems?

A: No. The AAI543-S50 is a standard DCS control module. For safety-critical applications, Yokogawa ProSafe-RS dedicated safety I/O modules must be utilized.

Q: How is the load resistance managed?

A: The module maintains output current stability across a load range of 0 to 750 Ohm. Users must ensure that the total impedance of the field loop (transmitter + wire resistance) does not exceed the 750 Ohm limit to prevent output saturation.

Field Installation Guidelines

Mounting: Ensure the module is fully seated within the FIO rack slot. Utilize the integrated connector locking mechanism to prevent intermittent contact due to vibration.
Wiring: Use shielded twisted-pair instrumentation cable for all 4-20 mA loops. Terminate shields at the cabinet ground bar, ensuring the shield is not connected to the field device end to mitigate ground loop currents.
Cabling: For signal connection, use the specified KS1 cables or MIL-type connectors. Verify that the current loop polarity is strictly maintained at the pressure clamp terminals.
Thermal: Maintain clear airflow paths above and below the FIO rack. Avoid installing the module in zones where ambient temperatures exceed 60 deg C to prevent hardware derating.
