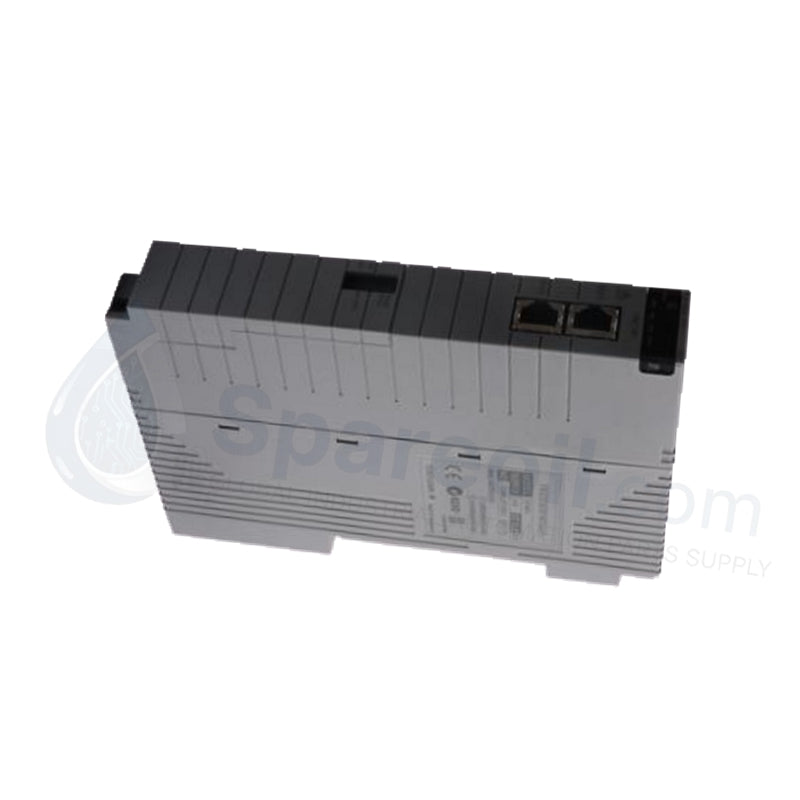

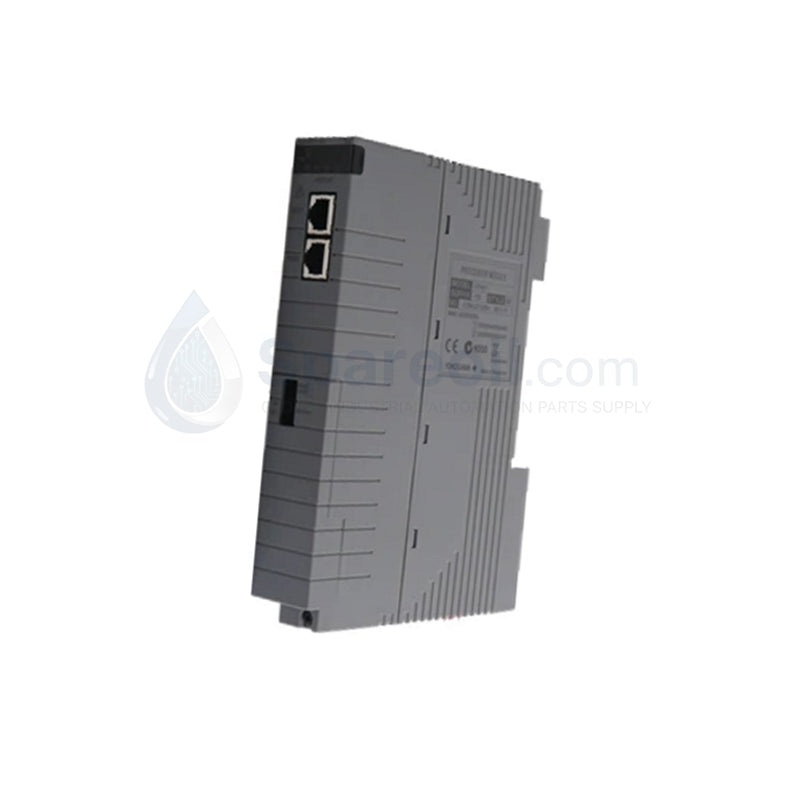

Yokogawa ADV151-P60 Digital Input Module

The Yokogawa ADV151-P60, also cataloged as the ADV151 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition and processing within CENTUM VP and STARDOM DCS platforms.

Hardware Specifications

Parameter Specification
Model ADV151-P60
Brand Yokogawa
Origin Indonesia
Weight 2 kg
Dimensions 30 mm x 100 mm x 120 mm
Operating Temp 0 deg C to +55 deg C
Power Consumption Nominal 24 V DC
Input Channels 32 isolated digital inputs
Input Voltage 19 V DC to 30 V DC
Isolation 1500 V AC channel-to-bus
Response Time 3 ms to 5 ms

DCS Process Control Connectivity

The ADV151-P60 module maintains signal integrity through dedicated channel-to-channel isolation architecture. This design minimizes ground loop interference and cross-talk when interfacing with field sensors such as dry contacts or transistor output devices. The integration of HART-ready signal processing loops allows for precise status feedback within the DCS environment. Proper operation relies on maintaining a stable 24 V DC supply to prevent channel-level signal degradation. The module utilizes active cold junction compensation (CJC) algorithms where applicable for temperature-sensitive inputs, ensuring that the 4-20 mA loop protocol (or discrete logic levels) remains consistent across the Yokogawa control network.

Frequently Asked Questions

Q: Does the ADV151-P60 support hot-swapping during active operation?

A: Yes, the module is engineered for hot-swapping. Operators may replace the unit without performing a full system shutdown, provided the local control rack supports power-on module insertion. Ensure all terminal connections are secured immediately upon seating to maintain loop continuity.

Q: How does the status display reflect wiring faults?

A: The P60 suffix indicates integrated status LEDs for individual channels. If a channel LED fails to illuminate during a known active state, it indicates either a lack of input voltage at the terminal block or a potential field-side wiring open circuit.

Field Installation Guidelines

  1. Mounting: Ensure the module is seated firmly onto the dedicated DIN rail or rack assembly. Verify that the backplane connector aligns correctly before applying pressure to engage the latch.
  2. Grounding: To maintain EMI/RFI immunity, ensure the module chassis is connected to the common system ground. Shielded twisted-pair cables should be used for field signals, with shields grounded at the control cabinet entry point to prevent ground loops.
  3. Wiring: Adhere to the terminal map strictly. Do not exceed the 30 V DC maximum input limit. Ensure that wire terminations are tightened to the torque specifications provided by the manufacturer to prevent intermittent signal loss due to vibration.
  4. Environment: Maintain the cabinet temperature within the specified 0 deg C to +55 deg C range. Ensure airflow is not obstructed by cable bundles, as sufficient heat dissipation is required for the internal components to achieve the rated MTBF.
