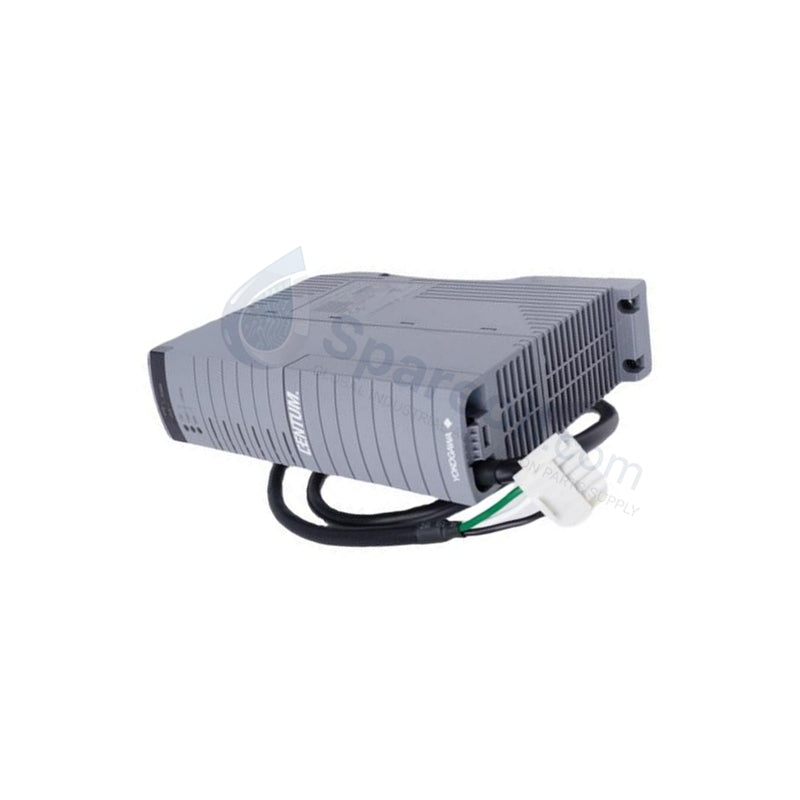

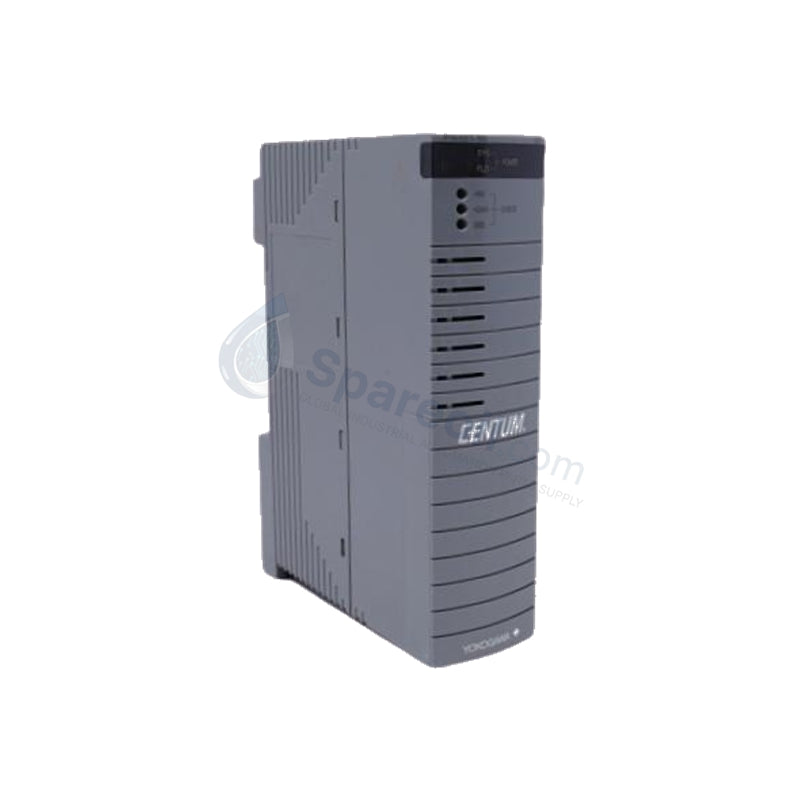

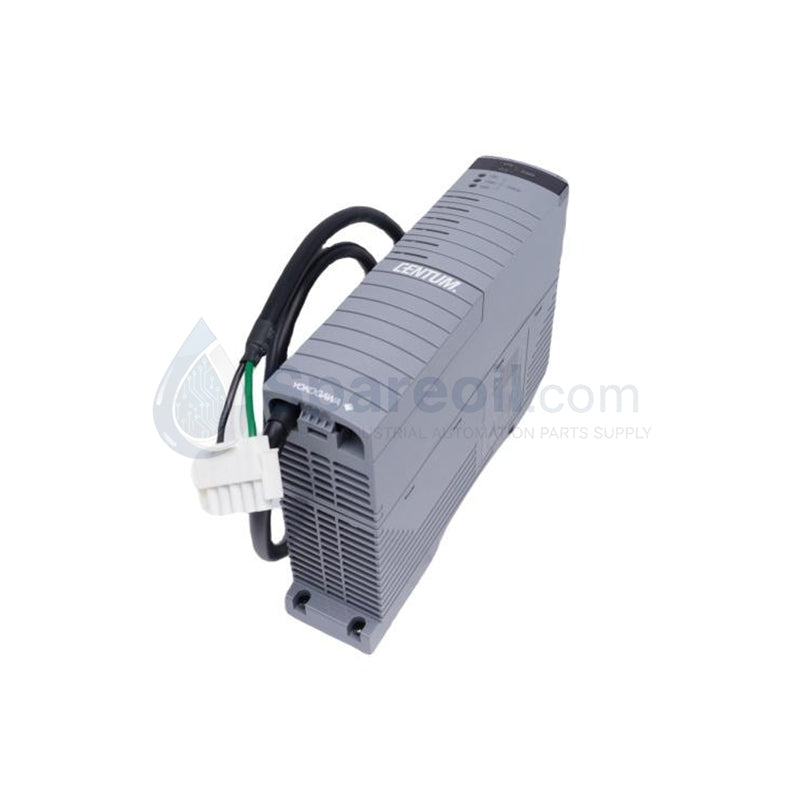

Yokogawa PW481-10 CENTUM VP Power Supply Module

The Yokogawa PW481-10, also cataloged as the PW481-10 Power Supply Module, operates as a dedicated hardware component for supplying regulated DC power to I/O modules and node units within CENTUM VP and ProSafe-RS networks.

Hardware Specifications

Process Control & DCS Instrumentation Properties

The electrical converter processes line power via its 100-120 V AC interface to supply clean internal bus currents. To support downstream field devices operating over a 4-20 mA HART loop protocol layer, the internal circuitry enforces strict channel-to-channel isolation metrics that decouple high-voltage utility lines from the low-voltage logic core. The DC voltage regulations utilize active overvoltage filters to isolate switching noise spikes. This isolated framework eliminates the risk of field-side common-mode noise passing through the power rails into adjacent ESB or ER bus nodes, preserving the overall data resolution within the system rack.

Frequently Asked Questions

Q: How does the internal short-circuit protection handle a direct short on the 24 V DC rail? A: The module activates built-in electronic shutdown circuits immediately when an overload or short-circuit condition crosses the safety trip boundary. The unit remains in a protected hiccup or cut-off state until the physical field wiring fault is resolved, resetting automatically thereafter.

Q: What are the primary ventilation requirements for the PW481-10 when mounted in high-density configurations? A: The module utilizes natural convection cooling to maintain operational temperature bounds between 0 and +60 deg C. It must be installed into a standard chassis orientation that leaves adjacent ventilation slots unblocked to prevent local heat concentration.

Q: Can this power supply interface simultaneously with both ESB and ER bus node variations? A: Yes. The rear backplane plug layout matches standard Yokogawa node structures, allowing the unit to slide into the dedicated power supply bay of either an ESB bus or an ER bus node assembly.

Field Installation Guidelines

• Line Power Isolation Measures: Before inserting the module into the active chassis, verify that the 100-120 V AC incoming source breaker is locked out. Use separate routing ducts for incoming AC lines and outgoing DC power wires to avoid introducing inductive cross-talk.
• Chassis Ground Path Verification: Secure all rack mounting fasteners to establish an optimal ground interface through the backplane frame. Structural grounding resistance must measure below 100 Ohm to ensure the safety filters and isolation barriers suppress transient line spikes effectively.
• Ambient Enclosure Configuration: Install the hardware inside a control panel that restricts environmental contamination. Keep internal cabinet humidity between 10% and 90% non-condensing, and position air circulation fans to hold continuous ambient operation below the +60 deg C threshold.
