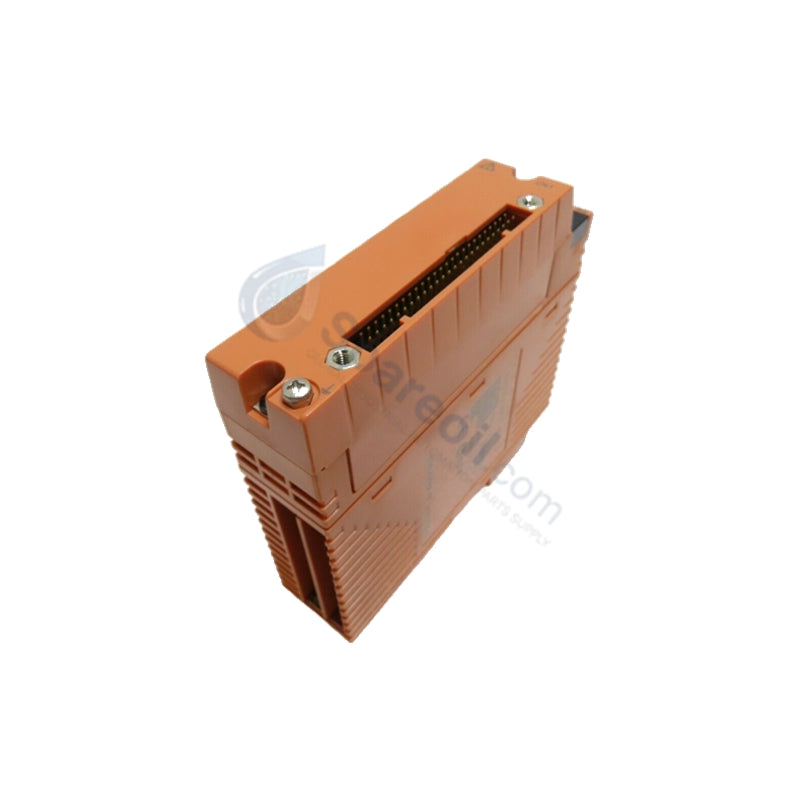

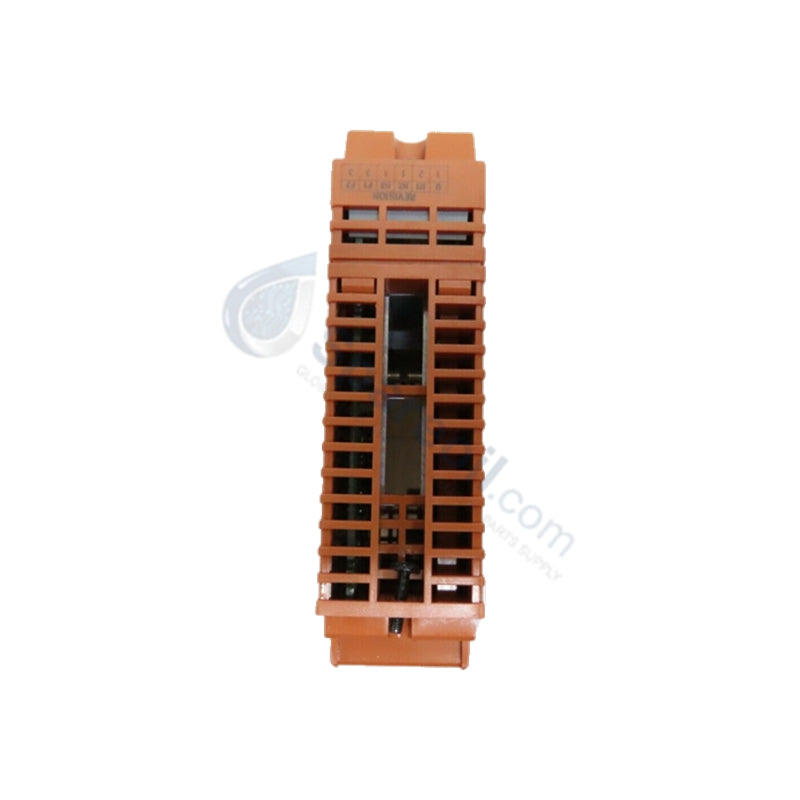

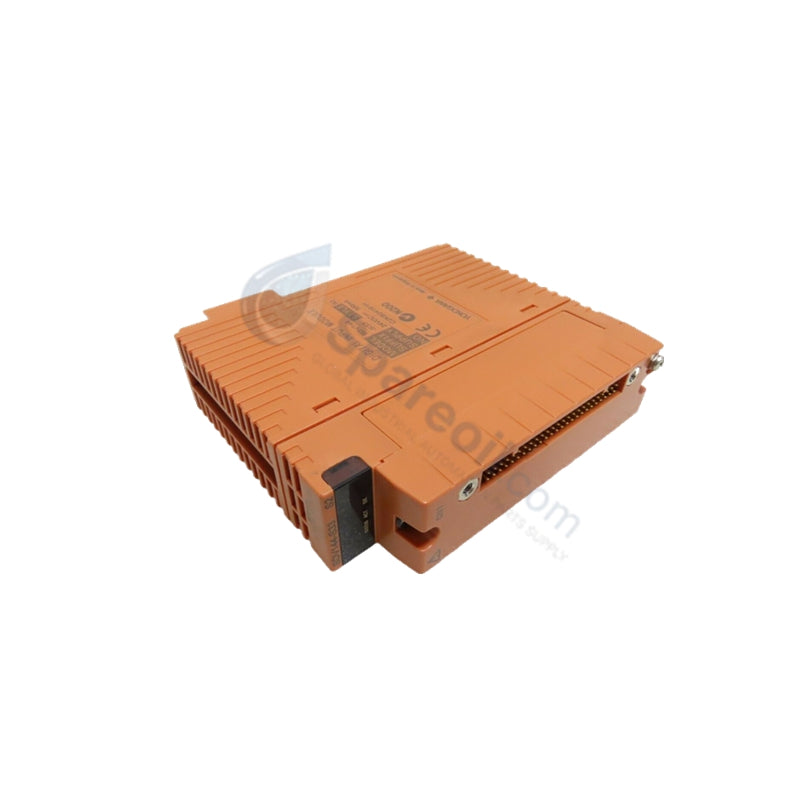

Yokogawa SDV144-S33/PRP Digital Input Module

Configured for high-integrity signal acquisition in ProSafe-RS safety systems, the Yokogawa SDV144-S33/PRP (SDV144-S33/PRP Digital Input Module) provides direct physical monitoring of field-mounted switches and sensors. This hardware component executes the intake of discrete signals while facilitating fault-tolerant networking via integrated redundancy protocols.

Hardware Specifications

Parameter	Specification
Model	SDV144-S33/PRP
Brand	Yokogawa
Origin	Japan
Weight	0.28 kg
Dimensions	130 mm x 107.5 mm x 32.8 mm
Operating Temp	-20 deg C to +70 deg C
Power Consumption	Nominal 24 VDC
Number of Inputs	16 isolated digital channels
Input Type	Dry contact or voltage input
Isolation	Optical (Input to System Bus)
Withstand Voltage	2 kV AC (1 min)
Conformal Coating	G3 Grade

Process Control and DCS Connectivity

The Yokogawa SDV144-S33/PRP integrates seamlessly into the ProSafe-RS architecture, utilizing Parallel Redundancy Protocol (PRP) to maintain continuous data flow despite individual network path failures. Each of the 16 input channels incorporates per-channel optical isolation, ensuring electrical decoupling between field-side signals and the internal system backplane. The module firmware supports comprehensive line monitoring, which actively validates the integrity of field wiring by detecting open or short-circuit conditions. This functionality permits the system to differentiate between an actual process interlock state and a mechanical fault in the sensing loop.

Frequently Asked Questions

Q: Does this module support hot-swapping during active system operation?

A: Yes, the module supports hot-swap capability within the ProSafe-RS rack, provided the system configuration permits online maintenance to prevent triggering false safety trips.

Q: How does the PRP protocol influence network latency compared to standard communication?

A: The Parallel Redundancy Protocol operates by sending duplicate packets over two independent local area networks. This implementation eliminates recovery time during a switchover, ensuring deterministic communication latency for safety-critical inputs.

Q: What are the restrictions regarding the G3 conformal coating?

A: The G3 grade coating protects internal components against corrosive gases. Ensure the module is not exposed to solvent-based cleaning agents that may degrade the chemical barrier.

Field Installation Guidelines

Environmental Preparation: Ensure the mounting environment adheres to the specified -20 deg C to +70 deg C range. Verify that the enclosure provides adequate ventilation to dissipate internal heat.
Physical Mounting: Secure the module onto the dedicated backplane. Ensure the mechanical alignment is precise to prevent pin damage during insertion. Tighten all retention screws to manufacturer torque specifications to maintain vibration resistance.
Wiring and Grounding: Use shielded twisted-pair cabling for all digital inputs. Terminate the shield at the cabinet ground bar to mitigate electromagnetic interference (EMI). Ensure that field wiring for dry contacts does not exceed the maximum impedance thresholds defined for the input circuit to avoid nuisance trips.
Verification: After installation, perform a loop check using a calibrated signal source to confirm that the input state (Open/Closed) corresponds accurately to the controller logic mapping.
