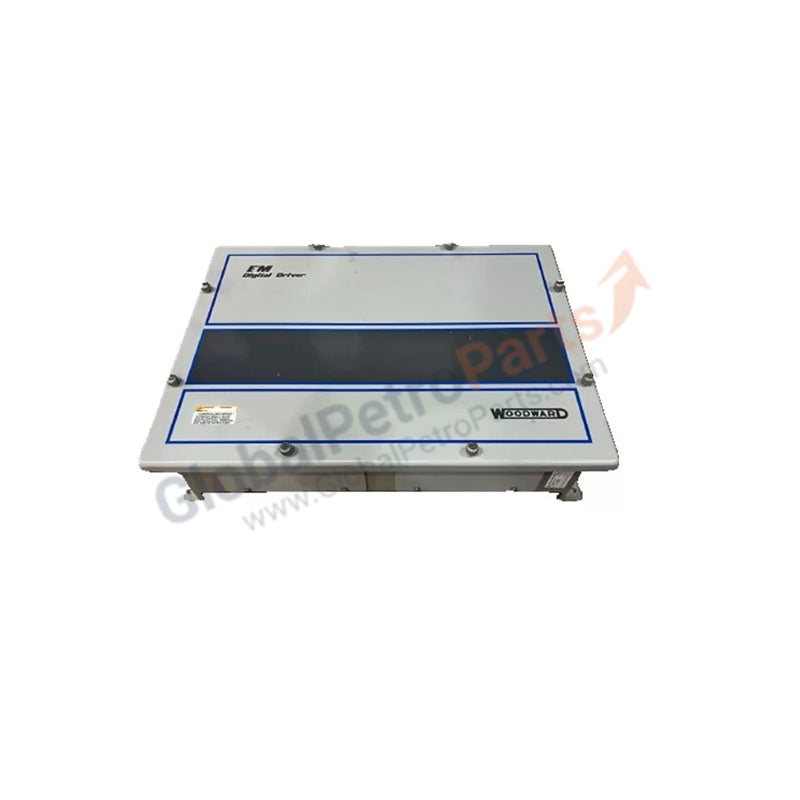

8200-177 | Woodward Digital Driver for Actuators & Valves

Availability: 99 left in stock

Woodward 8200-177 EM/LQ Digital Driver Actuator Control Module The 8200-177 (Model: 8200-177 Rev T) is a high-performance digital actuator driver designed to...

SKU: 8200-177

Manufacturer: Woodward
Product No.: 8200-177
Product Type: Digital Actuator Driver
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

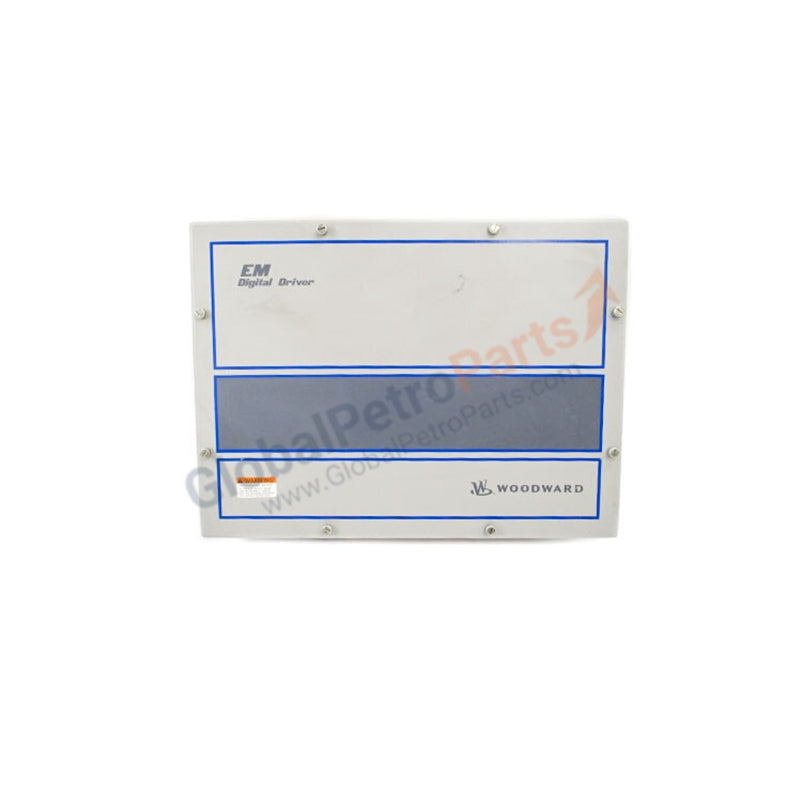

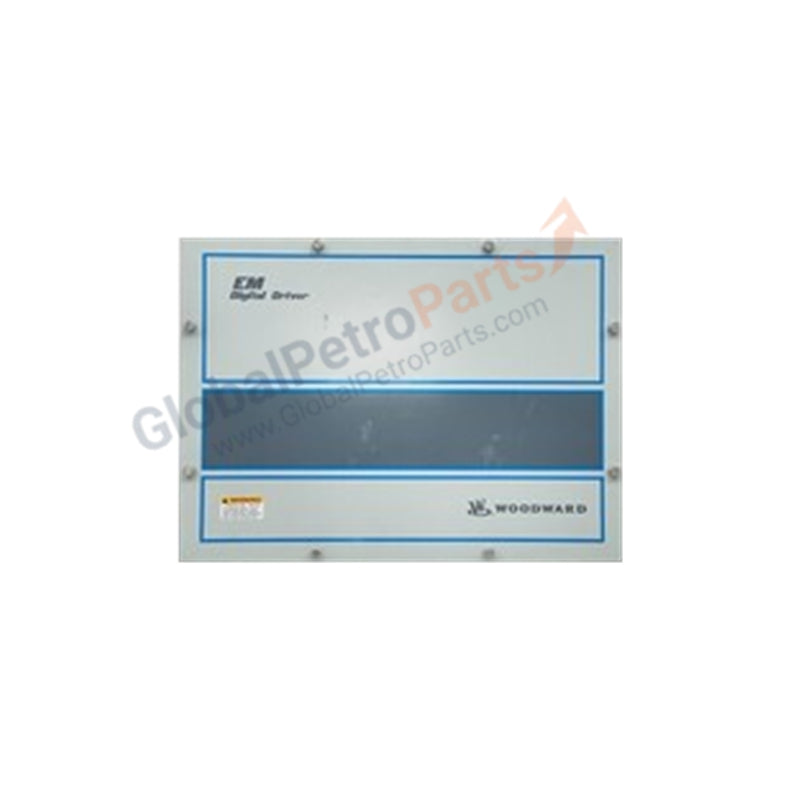

Woodward 8200-177 EM/LQ Digital Driver Actuator Control Module

The 8200-177 (Model: 8200-177 Rev T) is a high-performance digital actuator driver designed to interface between Woodward MicroNet™ or NetCon™ control systems and electric actuators or LQ valves. As a specialized EM (Electromechanical) resolver driver, it provides the high-current power amplification and digital signal conditioning required for precise positioning in gas, steam, and hydro turbines. The 8200-177 (Part Number: 8200-177) excels in managing high-bandwidth variable geometry applications where stability under varying load inertia and friction is mission-critical.

Engineered for 24/7 industrial duty, the 8200-177 (Digital Driver: 8200-177) utilizes adaptive control algorithms to maintain sub-millimeter valve positioning accuracy. This Revision T unit is optimized for 24 VDC output, supporting up to 16 A peaks to overcome mechanical stiction in large-scale valves. The driver incorporates galvanic isolation and RS-485 communication, allowing for deep diagnostic integration into modern Distributed Control Systems (DCS) while protecting sensitive control-room electronics from high-voltage field disturbances.

Detailed Technical Specifications

The 8200-177 (8200-177) combines robust power handling with high-resolution digital feedback processing.

Feature	Specification
Manufacturer	Woodward
Model Number	8200-177 (Revision T)
Product Type	EM and LQ Digital Driver
Main Function	Digital closed-loop EM Actuator/Valve control
Input Voltage (AC)	120 VAC (95–130 VAC operational range)
Power Supply (DC)	18–32 VDC (Internal Logic/Backplane)
Output Rating	24 VDC, up to 16 A (Peak)
Continuous Power	3.3 Amp consumption (nominal)
Speed Sensing Range	1–30 VAC
Isolation	1000 Vrms Network Isolation
Interface	EM Resolver Input, RS-485 Modbus
Operating Temp	–40 °C to +85 °C
Weight	2.6 kg (10 lbs including packaging)
Dimensions	461 mm (H) × 265 mm (W) × 59 mm (D)
