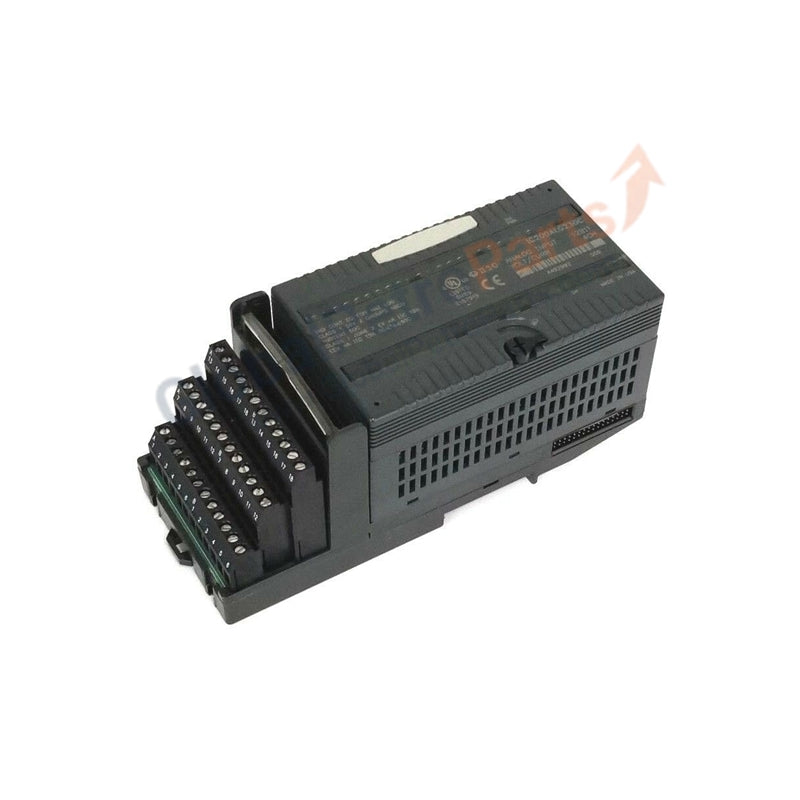

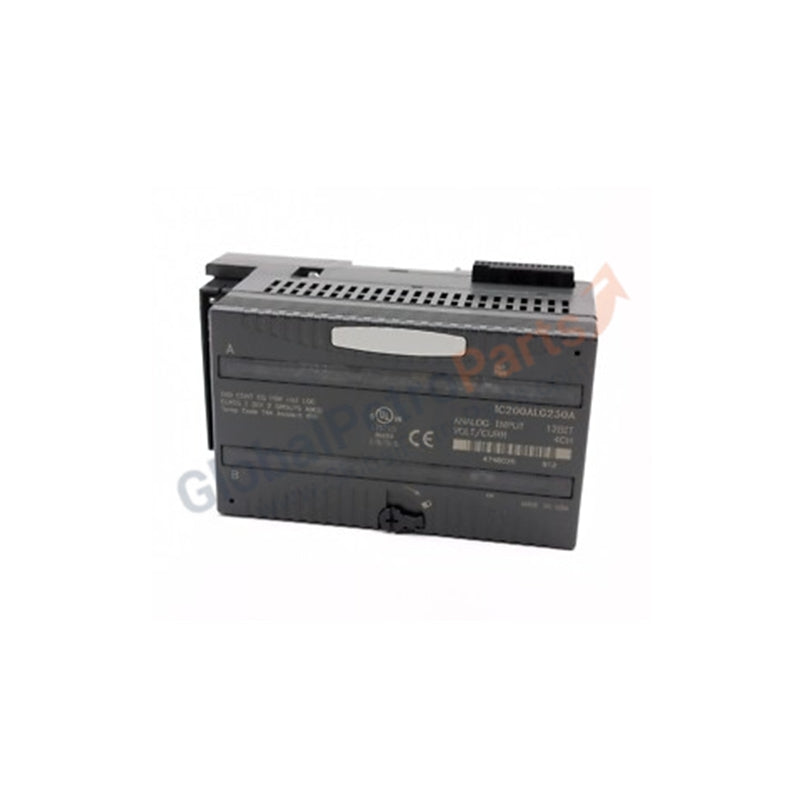

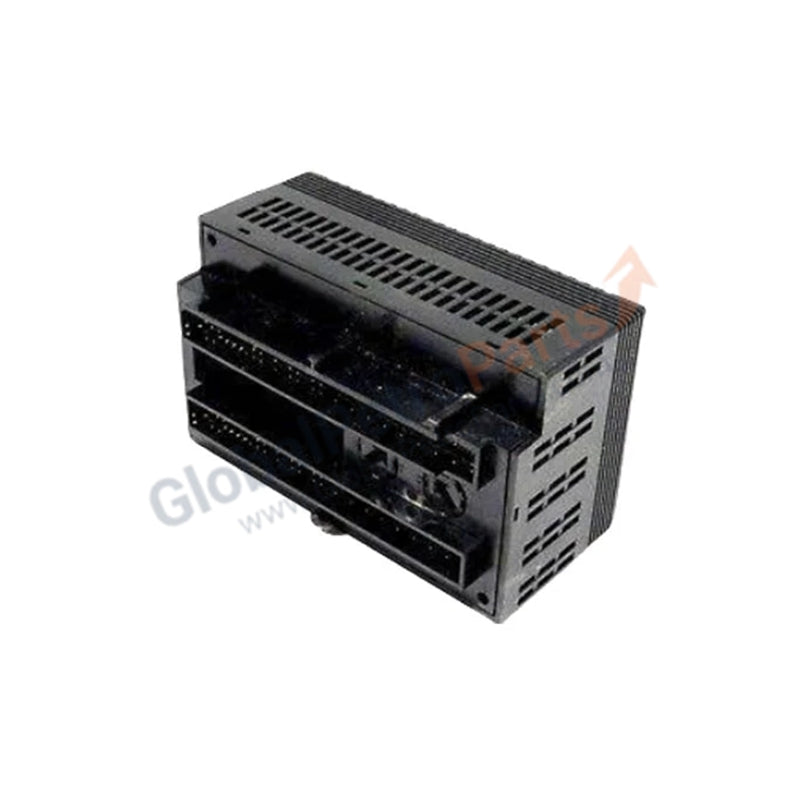

GE Fanuc VersaMax IC200ALG230 4-Channel Analog Input Module

The IC200ALG230 (Model: IC200ALG230) is a high-precision 12-bit analog input module from the GE Fanuc (now Emerson) VersaMax series. This module provides four independent channels for capturing analog signals from field devices such as transmitters, sensors, and transducers. The IC200ALG230 (Part Number: IC200ALG230) is highly versatile, supporting both unipolar and bipolar voltage ranges, as well as current signals, which are then converted into digital data for the VersaMax CPU or Network Interface Unit (NIU).

Designed for high-density industrial environments, the IC200ALG230 (Model: IC200ALG230) utilizes a compact footprint that mounts easily on a VersaMax carrier. It features 12-bit resolution, ensuring that process variables like pressure, temperature, and flow are represented accurately in the PLC logic. With built-in diagnostics for monitoring internal power loss and range configuration via hardware jumpers, this module offers the reliability and Expertise (E-E-A-T) required for continuous process monitoring and machine automation.

Detailed Technical Specifications

The IC200ALG230 (Model: IC200ALG230) provides optimized signal conversion with rapid update rates for real-time control applications.
