Product Description

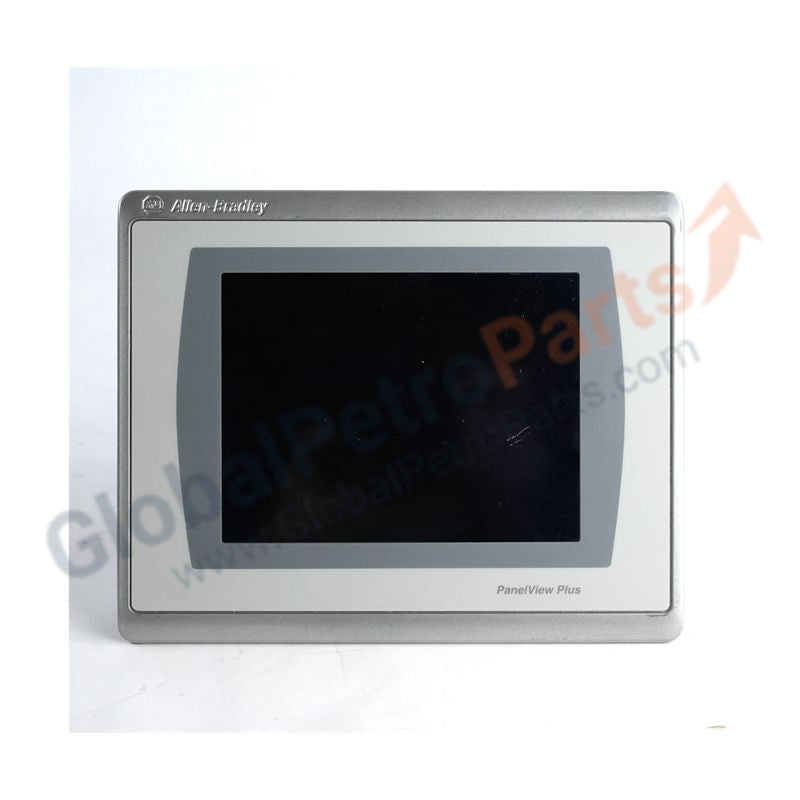

The 2711P-T7C22D9P is a high-performance Human Machine Interface (HMI) from the Allen-Bradley PanelView Plus 7 Performance series. Featuring a 6.5-inch TFT color touch display with VGA resolution (640 × 480) and 18-bit color graphics, it provides operators with a crisp, real-time visualization of complex automation processes.

Designed as a Performance model, it supports high-speed data communication, dual Ethernet ports with Device Level Ring (DLR) capability, and network topologies including Linear and Star. Its Windows-based OS allows easy file management, remote monitoring via VNC, and advanced visualization features. The terminal is ruggedized for industrial environments, making it ideal for manufacturing, water treatment, and food & beverage applications.

Technical Specifications

Application Scenarios

• High-Speed Packaging: Monitor and adjust servo parameters on filling or wrapping lines.

• Network Resiliency: Maintain HMI connectivity with DLR topology even if a cable is broken.

• Remote Management: Use VNC to view the terminal remotely on mobile devices or PCs.

• OEM Machinery: Compact interface with high-resolution graphics for custom machine builders.

Frequently Asked Questions

What is the benefit of the Performance version over the Standard PanelView Plus 7?
The Performance model supports more than 25 screens, 200 alarms, dual Ethernet ports with DLR capability, and allows more complex application logic than the Standard version.

Does this unit come with mounting hardware?
Yes. It includes mounting clips and a pre-installed gasket to maintain IP66/NEMA 4X protection when installed in a panel cutout.
