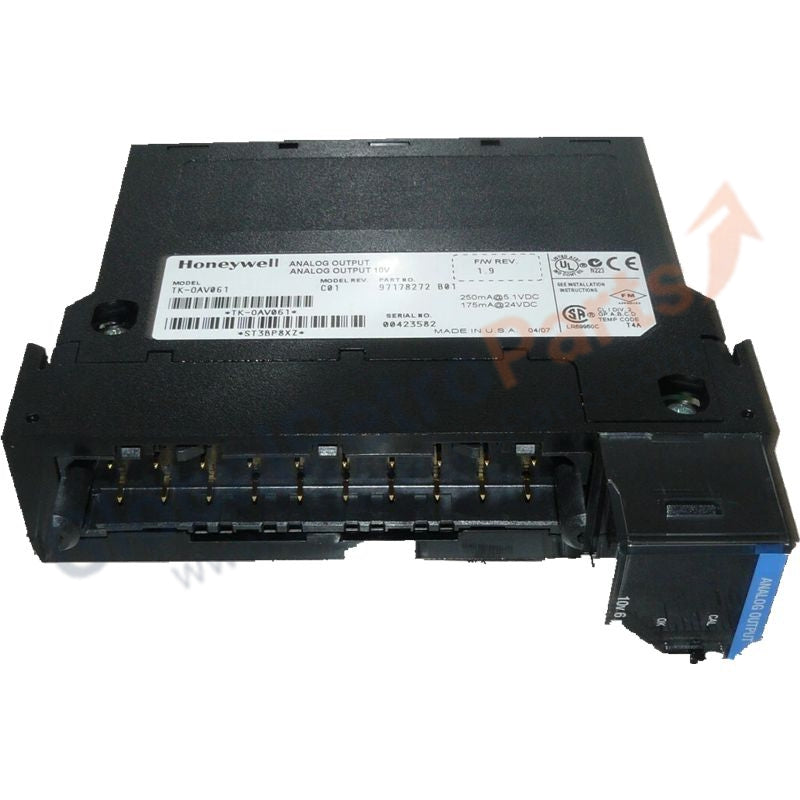

Analog Output Module TK-OAV061 Honeywell

Availability: 99 left in stock

Product Description The TK-OAV061 (Part Number: TK-OAV061) is a high-precision isolated analog output module designed for Honeywell Experion PKS and Series A I/O systems. It provides six...

SKU: TK-OAV061

Manufacturer: Honeywell
Product No.: TK-OAV061
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The TK-OAV061 (Part Number: TK-OAV061) is a high-precision isolated analog output module designed for Honeywell Experion PKS and Series A I/O systems. It provides six independent voltage output channels, each capable of delivering stable 0–10 VDC control signals to field devices such as control valves, actuators, and variable frequency drives (VFDs).

Each channel features galvanic isolation, protecting the controller backplane from ground loops, noise coupling, and field-side electrical faults. With a fast 2 ms update time and 12-bit resolution, the TK-OAV061 delivers deterministic performance suitable for fast-response process loops in demanding industrial environments including chemical processing, oil refining, and power generation.

Technical Specifications

Parameter	Specification
Model Designation	TK-OAV061
Module Type	Isolated Analog Output (AO)
Channel Count	6 Independent Outputs
Output Signal Range	0 to 10 VDC
Maximum Output Current	20 mA per channel
Resolution	12 bits
System Accuracy	±0.1% of Full Scale
Update Time	2 ms
Input Power Requirement	24 VDC (nominal)
Operational Current Draw	100 mA
Physical Dimensions	3.5 × 14.0 × 14.5 cm
Unit Weight	0.28 kg
System Compatibility	Honeywell Series A / Experion PKS

Application Scenarios

Supplying voltage speed references to VFDs in pump and fan control
Driving proportional control valves in batch and continuous processes
Interfacing with analog dampers and actuators in industrial HVAC systems
Providing electrically isolated outputs for legacy equipment integration

Frequently Asked Questions

Are the output channels independently isolated?
Yes. Each output channel is galvanically isolated, preventing faults or noise on one loop from affecting other channels or the controller.

Does the TK-OAV061 support 4–20 mA outputs?
No. The TK-OAV061 is a voltage-only (0–10 VDC) output module. For current loop applications, a dedicated analog current output module (such as the TK-OAI161) should be used.
