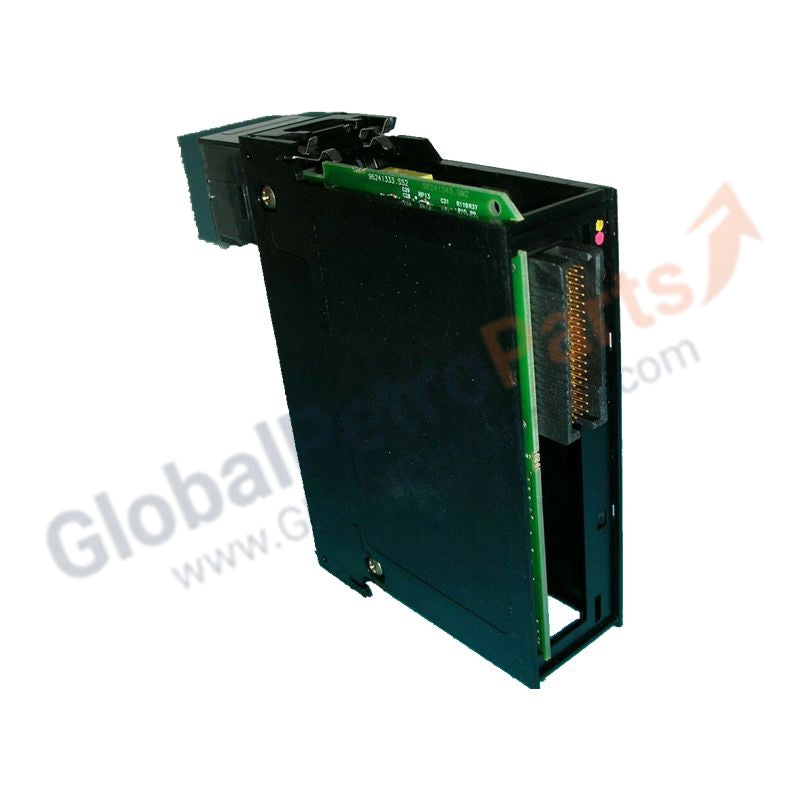

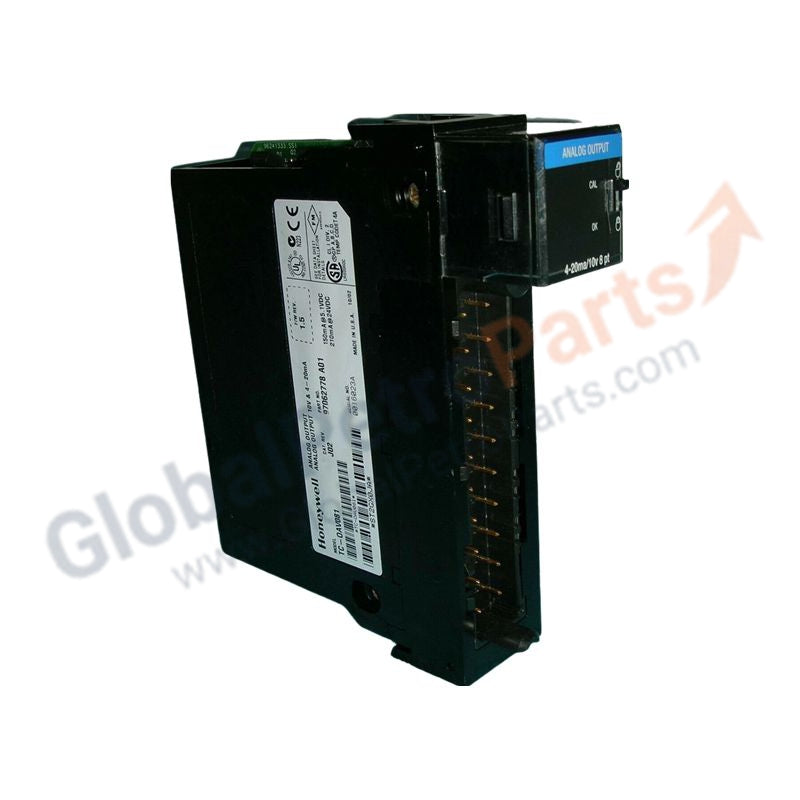

Honeywell Analog Output Module TC-OAV081

Availability: 99 left in stock

Product OverviewThe TC-OAV081 (Part Number: TC-OAV081) is a high-performance analog output module in the Honeywell Experion PKS Series C I/O family. It provides eight independent channels capable of...

SKU: TC-OAV081

Manufacturer: Honeywell
Product No.: TC-OAV081
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 470g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview
The TC-OAV081 (Part Number: TC-OAV081) is a high-performance analog output module in the Honeywell Experion PKS Series C I/O family. It provides eight independent channels capable of both voltage and current output, enabling precise control of field devices such as variable speed drives, control valves, and actuators.

Designed for high-speed, deterministic process control, the TC-OAV081 features an ultra-fast 25 ms update rate for all channels and advanced protection circuitry, including electronic current limiting and overvoltage protection, ensuring safe operation even in fault conditions.

Technical Specifications

Feature	Specification
Primary Identifier	TC-OAV081
Channel Density	8 Output Channels
Voltage Signal Range	±10.4 VDC
Current Signal Range	0–21 mA
Signal Resolution (Voltage)	320 µV per count
Signal Resolution (Current)	0.650 µA per count
Calibration Accuracy (25°C)	Better than 0.05% of range
Response Speed	25 ms update rate (all channels)
Output Settling Time	<2 ms (to 95% with resistive load)
Load Impedance (Voltage)	>2000 Ω
Load Impedance (Current)	0–750 Ω
Fault Protection	24 VAC/VDC overvoltage; electronic current limiting at 21 mA
System Isolation	2550 VDC for 1 second (User-to-System)
Total Power Dissipation	6.9 W maximum
Termination Interface	TC-TBNH 20-position terminal block

Application Scenarios

Modulating control valve positions in chemical refineries
Speed reference signaling for Variable Frequency Drives (VFDs)
Interfacing with analog chart recorders or secondary displays
Providing setpoint signals to third-party standalone controllers

Frequently Asked Questions (FAQ)

Q: Can the TC-OAV081 output both voltage and current on different channels simultaneously?
A: Yes. Each channel can be individually configured for ±10.4 V voltage or 0–21 mA current, depending on the connected field device requirements.

Q: What happens if a field wire is short-circuited?
A: The module includes built-in short circuit protection, electronically limiting output current to 21 mA or less, preventing internal damage.
