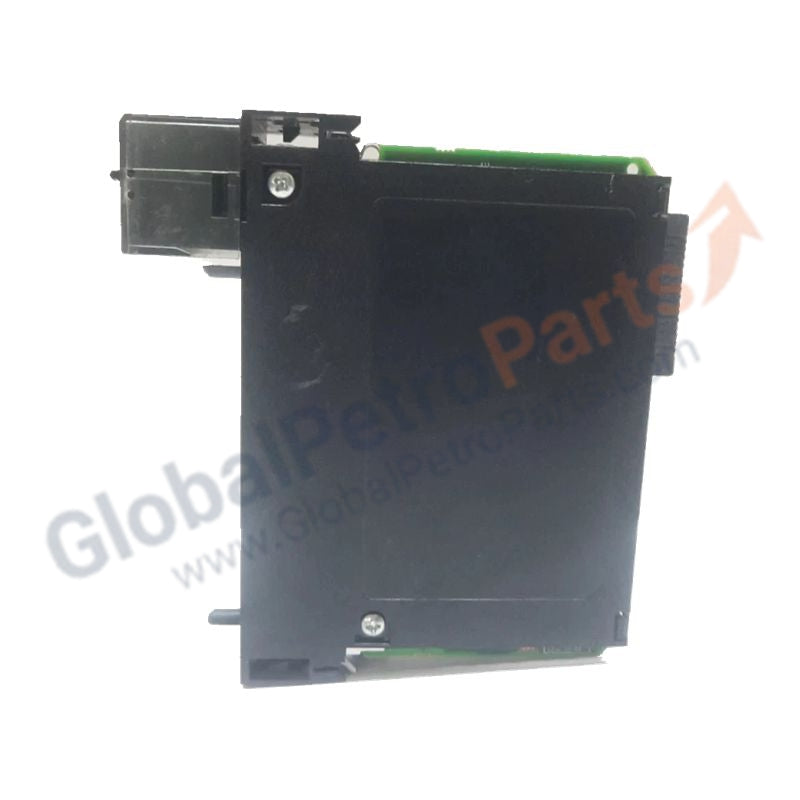

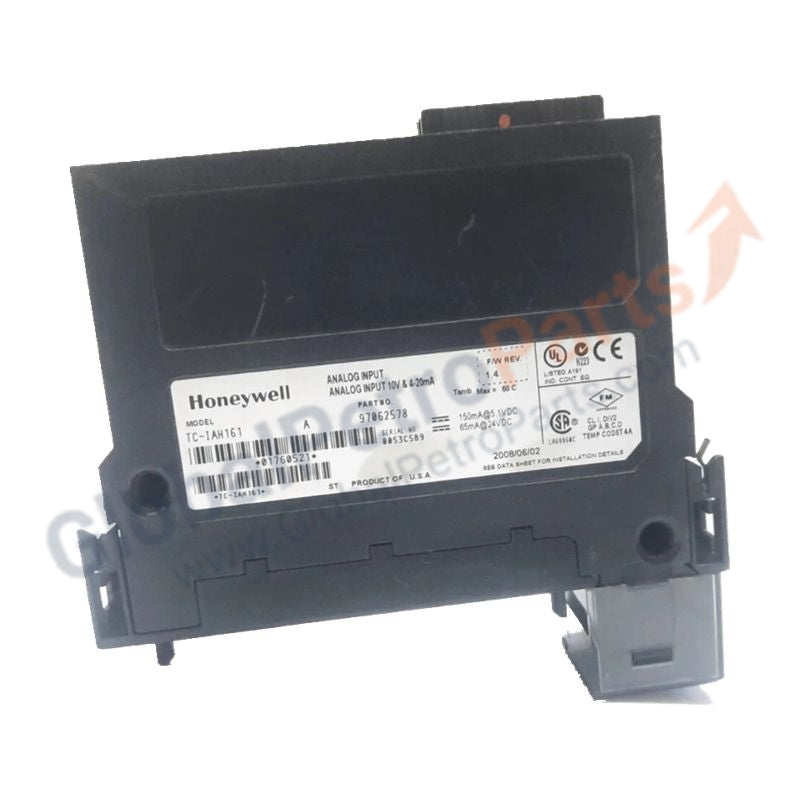

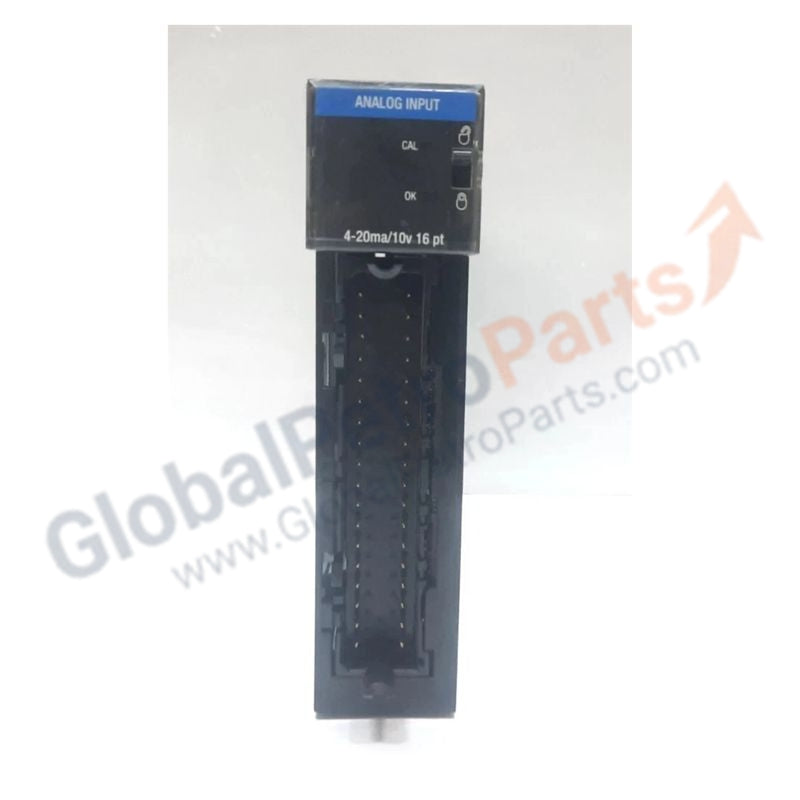

TC-IAH161 Honeywell High Level Analog Module

Availability: 99 left in stock

Product OverviewThe TC-IAH161 (Part Number: TC-IAH161) is a high-density Series C Analog Input module designed for the Honeywell Experion PKS environment. It provides 16 isolated channels capable of...

SKU: TC-IAH161

Manufacturer: Honeywell
Product No.: TC-IAH161
Product Type: High Level Analog Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview
The TC-IAH161 (Part Number: TC-IAH161) is a high-density Series C Analog Input module designed for the Honeywell Experion PKS environment. It provides 16 isolated channels capable of interfacing with standard voltage and current signals from field transmitters. Engineered for precision and industrial resilience, the module delivers 16-bit resolution across all input ranges, ensuring high-fidelity data acquisition for critical process loops.

With a 250 ms publish rate, the TC-IAH161 is ideal for standard process monitoring requiring deterministic data updates. Integrated signal conditioning and RFI immunity maintain signal integrity even in electrically noisy industrial environments.

Technical Specifications

Feature	Specification
Model Identification	TC-IAH161
Channel Count	16 Non-isolated Inputs
Voltage Input Ranges	±10.25 VDC, 0–10.25 VDC, 0–5.125 VDC
Current Input Range	0–20.5 mA (internal 249 Ω precision resistor)
A/D Resolution	16 bits
Data Update Rate	250 ms (Publish Rate)
Input Impedance (Voltage)	>1.0 MΩ
Input Impedance (Current)	249 Ω nominal
Frequency Response	20 Hz (-3 dB bandwidth)
RFI Protection	<2.0% error at 10 V/m (27–1000 MHz)
Thermal Dissipation	4.1 W maximum
Galvanic Isolation	2550 VDC for 1 second (User-to-System)
Required Interface	TC-TBCH 36-position terminal block

Application Scenarios

Interfacing with 4–20 mA pressure and flow transmitters in DCS systems
Monitoring voltage-based sensors in power distribution applications
General-purpose analog data logging for Series C I/O subsystems

Frequently Asked Questions (FAQ)

Q: Does the TC-IAH161 require an external resistor for current loops?
A: No. The module includes an internal 249 Ω precision resistor for current-to-voltage conversion, simplifying wiring for 0–20 mA or 4–20 mA signals.

Q: Which terminal block is compatible with this module?
A: The TC-IAH161 is designed to work with the TC-TBCH 36-position terminal block for secure field terminations.
