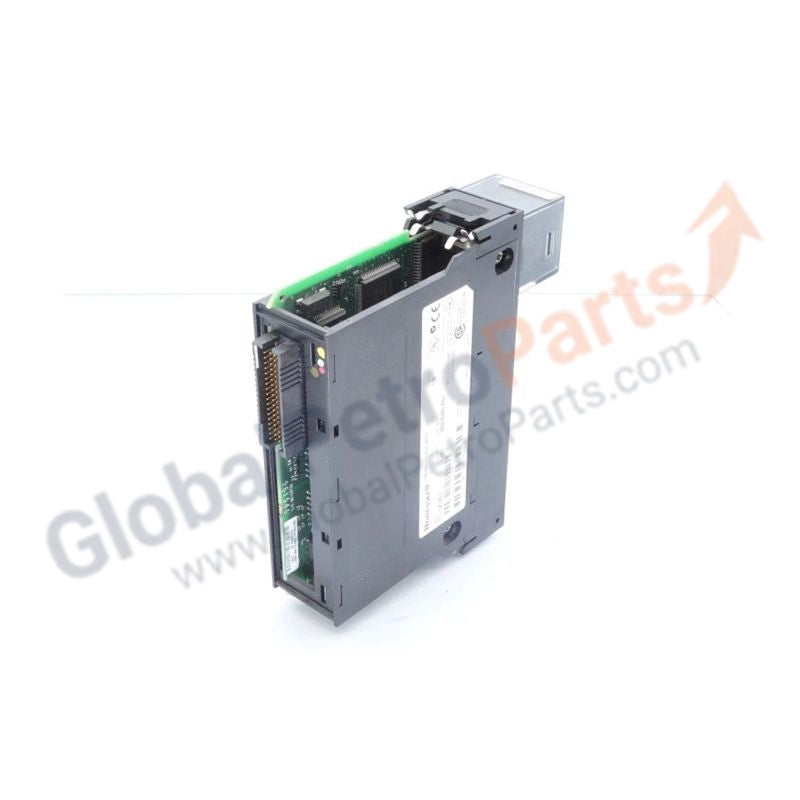

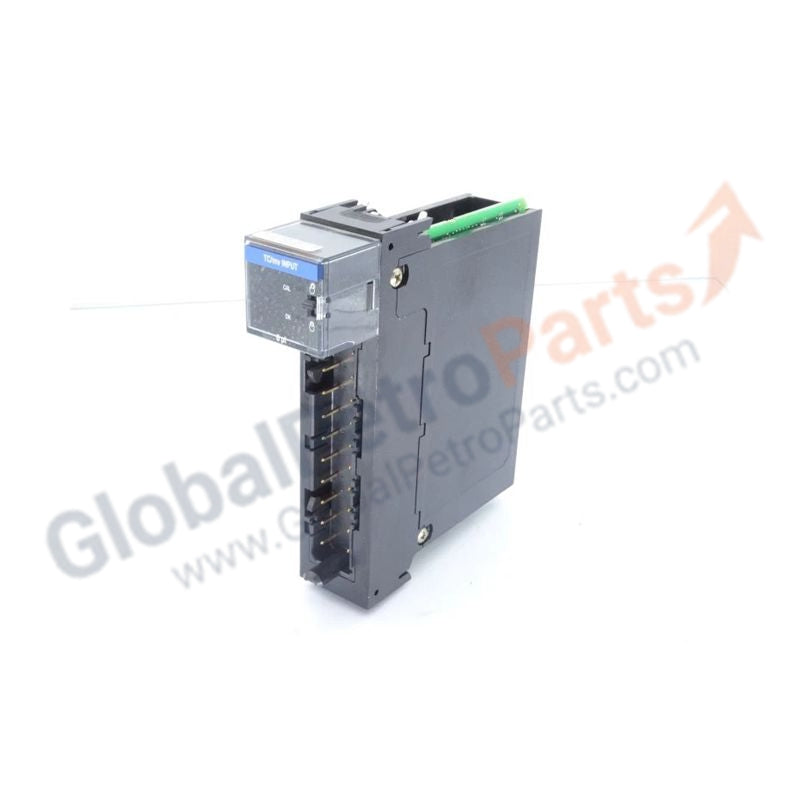

TC-IXL061 Honeywell Thermocouple Input Module

Availability: 99 left in stock

Product OverviewThe TC-IXL061 (Part Number: TC-IXL061) is a high-precision temperature sensing interface designed for the Honeywell Experion PKS Series C I/O family. It accepts direct millivolt signals from...

SKU: TC-IXL061

Manufacturer: Honeywell
Product No.: TC-IXL061
Product Type: Thermocouple Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview
The TC-IXL061 (Part Number: TC-IXL061) is a high-precision temperature sensing interface designed for the Honeywell Experion PKS Series C I/O family. It accepts direct millivolt signals from various thermocouple types, providing accurate cold-junction compensation and linearization for industrial temperature monitoring.

Engineered for demanding process environments, the TC-IXL061 delivers high-resolution data conversion and robust noise rejection. It is ideal for applications requiring tight thermal regulation, including furnace control, chemical reactors, and turbine exhaust monitoring. Its compact Series C form factor allows efficient vertical mounting, optimizing cabinet space while maintaining superior heat dissipation.

Technical Specifications

Feature	Specification
Model Number	TC-IXL061
Function	Low-Level Analog Input (Thermocouple/mV)
Module Type	Series C I/O
Supported Sensor Types	Type J, K, T, E, R, S, B, N Thermocouples
Input Channels	Typically 16 channels (depends on IOTA configuration)
Physical Dimensions	7 × 14 × 14.5 cm
Shipping Weight	0.5 kg
Origin	Manufactured in the United States
Cold Junction Compensation	Integrated via IOTA
Signal Conversion	16-bit Delta-Sigma ADC
Isolation	Galvanic isolation between field side and system logic

Application Scenarios

High-temperature monitoring in glass and steel manufacturing
Exothermic reaction temperature tracking in chemical processing
Cryogenic temperature measurement in LNG facilities
Thermal profiling for pharmaceutical sterilization cycles

Frequently Asked Questions (FAQ)

Q: Does the TC-IXL061 support RTD inputs?
A: No. It is specifically optimized for thermocouples and mV signals. RTD inputs require a separate module, such as the TC-IRR081, to handle resistance-based measurements and lead-wire compensation.

Q: Is a specific terminal block required for cold junction compensation?
A: Yes. The TC-IXL061 must be paired with a compatible Series C IOTA that includes an onboard Cold Junction Reference (CJR) sensor to ensure accurate temperature readings.
